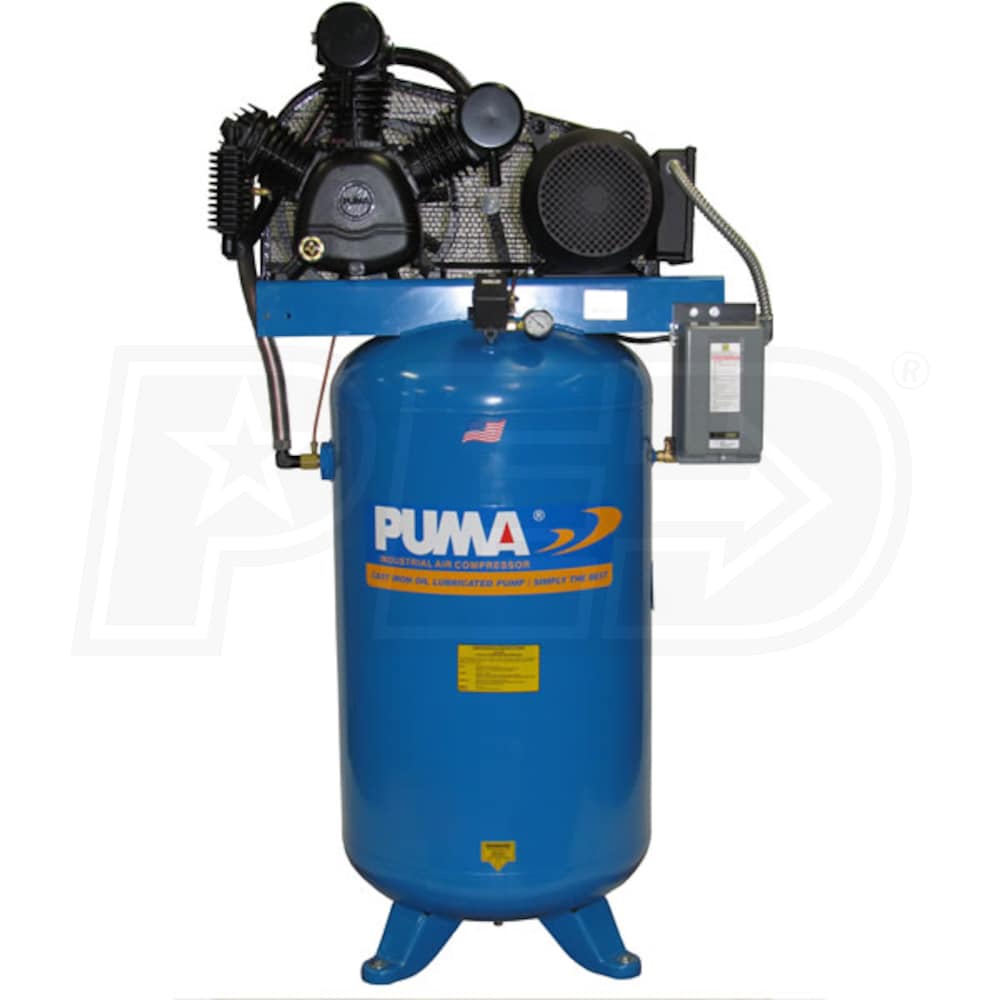

Puma 7.5-HP 80-Gallon Two-Stage Air Compressor (208-230V 3-Phase)
Model: TUE-7580VM3-230
No RatingNo RatingNo RatingNo RatingNo Rating
Number of Reviews(0)
Write a Review
$1,999.99
Holiday Shipping Schedule
Holiday Schedule -
Free Shipping
&
Lift Gate
  Learn More About Free Freight
Free Shipping & Lift Gate
*This product qualifies for Free Shipping anywhere in the contiguous US. Accessories may ship separately. Items over 100lbs shipped via semi-truck, be sure to select "Lift Gate" to lower the product to the ground curbside. Remote area surcharges may apply, see our full shipping policy for more details.
Factory-Direct
This Item Is Built To Order
Factory items ship direct from the manufacturer. Shipping times vary.
Shipping to60601
Shipping Details
  • Free to Lower 48 States
  • Lift Gate Service Available - Free Lift Gate Learn More
*We currently CANNOT ship this product to Alaska, Hawaii or any destination outside of the United States
Available Add-Ons
FREE
Learn More
Lift Gate Service
All products weighing more than 100 lbs. ship via semi-truck. We recommend ordering the Lift Gate Service to safely lower the product to the curb. If you have a loading dock or forklift, you do NOT need a Lift Gate service. If you are a residential customer, you must have at least 2-4 able-bodied people present to unload the product. Learn More
Add an Extended Warranty
Excludes CA
Free Shipping$1,999.99Buy Now
Free Freight$1,999.99Visit Site
Share
  • Product Description
  • Reviews
  • Product Q&A
  • Recommended Accessories
  • How-To Articles
  • Manuals
Product Description
+
Grade
Commercial
Style
Two Stage 3-Phase (230 Volts)
CFM
23
CFM Rated @ 90 PSI
Tank Size
80
Gallons
Grade
Commercial
CFM
23 CFM Rated @ 90 PSI
Tank Size
80 Gallons
Features
Features
  • Heavy-Duty Belt Drive Compressor
  • Steady, powerful air can run multiple tools at once
  • Oil Lubricated V-Type Pump
  • Runs cooler, works longer with less vibration
  • Factory Mounted Magnetic Starter
  • Protects your compressor from being overloaded
  • 2-Stage Pump
  • Produces higher CFM more efficiently, with less heat
  • Develops 23 CFM at 90 PSI, 22 CFM at 175 PSI
  • Versatile
  • Excellent choice for commercial & light industrial applications
  • 80 Gallon Vertical Air Tank
  • ASME & CRN certified for safety
  • Upright design takes up less floor space than horizontal units
Specifications
Motor
Voltage
230 Volt AC
Phase
3-Phase
Magnetic Starter
Yes
Amp Draw
19.8 - 17.9
Recommended Breaker
Consult Certified Electrician
Engine
HP
7.5
Pump
CFM
23
CFM Rated @
90 PSI
Pump Material
Solid Cast Iron
Max PSI
175 PSI
Oil Sight Glass
No
Pump Type
Two-Stage
After Cooler
No
Pump Drive
Belt Drive
Oil Type
Oil Lubricated
Oil System
Splash Lubricated
Pump Low Oil Shut-off
No
Tank
Tank Size
80 Gallons
Tank Outlet
3/4 Inch
Electronic Drain Valve
No
Tank Orientation
Vertical
Accessories
Pressure Gauge
Yes
Air Dryer
No
Overview
Weight
550 Pounds
Certification
ASME, CRN
Consumer Warranty
1 Year
Commercial Warranty
1 Year
Product Length
40 Inches
Product Width
32 Inches
Product Height
75 Inches
Power Type
Electric
UPC
636084025136
Grade
Commercial
Style
Two Stage 3-Phase (230 Volts)
CFM
23
CFM Rated @ 90 PSI
Tank Size
80
Gallons
Grade
Commercial
CFM
23 CFM Rated @ 90 PSI
Tank Size
80 Gallons
Features
Features
  • Heavy-Duty Belt Drive Compressor
  • Steady, powerful air can run multiple tools at once
  • Oil Lubricated V-Type Pump
  • Runs cooler, works longer with less vibration
  • Factory Mounted Magnetic Starter
  • Protects your compressor from being overloaded
  • 2-Stage Pump
  • Produces higher CFM more efficiently, with less heat
  • Develops 23 CFM at 90 PSI, 22 CFM at 175 PSI
  • Versatile
  • Excellent choice for commercial & light industrial applications
  • 80 Gallon Vertical Air Tank
  • ASME & CRN certified for safety
  • Upright design takes up less floor space than horizontal units
Specifications
Motor
Voltage
230 Volt AC
Phase
3-Phase
Magnetic Starter
Yes
Amp Draw
19.8 - 17.9
Recommended Breaker
Consult Certified Electrician
Engine
HP
7.5
Pump
CFM
23
CFM Rated @
90 PSI
Pump Material
Solid Cast Iron
Max PSI
175 PSI
Oil Sight Glass
No
Pump Type
Two-Stage
After Cooler
No
Pump Drive
Belt Drive
Oil Type
Oil Lubricated
Oil System
Splash Lubricated
Pump Low Oil Shut-off
No
Tank
Tank Size
80 Gallons
Tank Outlet
3/4 Inch
Electronic Drain Valve
No
Tank Orientation
Vertical
Accessories
Pressure Gauge
Yes
Air Dryer
No
Overview
Weight
550 Pounds
Certification
ASME, CRN
Consumer Warranty
1 Year
Commercial Warranty
1 Year
Product Length
40 Inches
Product Width
32 Inches
Product Height
75 Inches
Power Type
Electric
UPC
636084025136
Product Specs
+
Specifications
Motor
Voltage
230 Volt AC
Phase
3-Phase
Magnetic Starter
Yes
Amp Draw
19.8 - 17.9
Recommended Breaker
Consult Certified Electrician
Engine
HP
7.5
Pump
CFM
23
CFM Rated @
90 PSI
Pump Material
Solid Cast Iron
Max PSI
175 PSI
Oil Sight Glass
No
Pump Type
Two-Stage
After Cooler
No
Pump Drive
Belt Drive
Oil Type
Oil Lubricated
Oil System
Splash Lubricated
Pump Low Oil Shut-off
No
Tank
Tank Size
80 Gallons
Tank Outlet
3/4 Inch
Electronic Drain Valve
No
Tank Orientation
Vertical
Accessories
Pressure Gauge
Yes
Air Dryer
No
Overview
Weight
550 Pounds
Certification
ASME, CRN
Consumer Warranty
1 Year
Commercial Warranty
1 Year
Product Length
40 Inches
Product Width
32 Inches
Product Height
75 Inches
Power Type
Electric
UPC
636084025136
