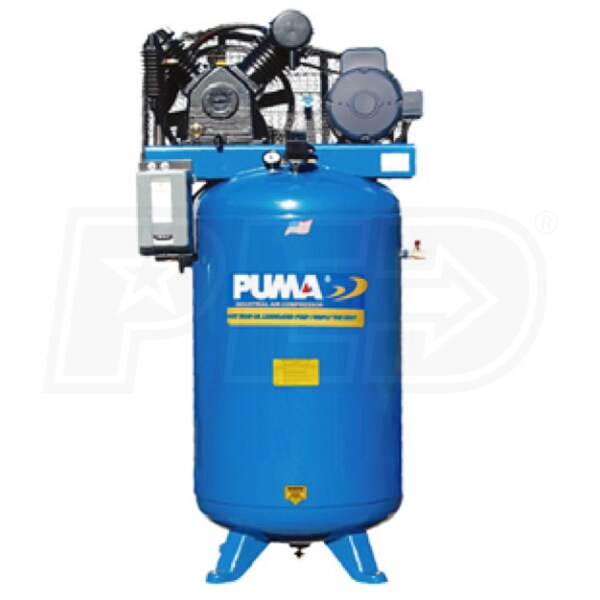

Puma 5-HP 80-Gallon Two-Stage Air Compressor (208/230V 1-Phase)

Model:

TN5080VM

Write A Review
Backordered
Sorry, this product is no longer available.
Continue Shopping With These Categories
Puma 5-HP 80-Gallon Two-Stage Air Compressor (208/230V 1-Phase)
Puma 5-HP 80-Gallon Two-Stage Air Compressor (208/230V 1-Phase)
Model: TN5080VM
Backordered
Accessories
Features
Specifications
Reviews
How-To Articles
Manuals
Share

Recommended Accessories

Power Equipment Direct expert image
Expert Recommended Accessories Selected by Melissa, our Expert
Required Accessories 9
These accessories are required to properly setup/install this product.
Optional Accessories 10

Features

Grade

Consumer

Voltage

208-230 Volt AC

Phase

1-Phase

CFM

18

Tank Size

80

  • Heavy Duty Belt Drive Compressor
  • Steady, powerful air can run multiple tools at once
  • Oil Lubricated V-Type Pump
  • Runs cooler, works longer with less vibration
  • Factory Mounted Magnetic Starter
  • Protects your compressor from being overloaded
  • Two-Stage Pump
  • Produces higher CFM more efficiently, with less heat
  • Develops 18 CFM at 90 PSI; 16.5 CFM at 175 PSI
  • Versatile
  • Excellent choice for commercial & light industrial applications
California residents see
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
For more information go to: www.p65Warnings.ca.gov

Specifications

TN5080VM
specs product image PID-11116
Motor
Voltage
208-230 Volt AC
Phase
1-Phase
Magnetic Starter Learn More
Magnetic Starter
The Magnetic Starter is the "thinking cap" for the motor of the air compressor. Magnetic starters are electromagnetically operated switches that provide a safe method for certain motors to be started under a large motor load.
Yes
Amp Draw
16.6 - 15
Recommended Breaker
Consult Certified Electrician
Engine
HP
5
Pump
CFM Learn More
CFM
Cubic Feet Per Minute, which indicates the compressor's flow rate - or the amount of air that a compressor can produce at a given pressure level. Typically compressors that have higher CFM ratings are able to provide more air, which makes them ideal for larger applications
18
CFM Rated @
90 PSI
Pump Material
Solid Cast Iron
Max PSI Learn More
Max PSI
PSI, or Pounds Per Square Inch, measures the amount of pressure placed on a square inch of space. In compressor terms, PSI is the amount of force that an air compressor can deliver
175 PSI
Pump Type
Two-Stage
After Cooler Learn More
After Cooler
An aftercooler is a mechanical heat exchanger designed to remove the heat and moisture of compression from a compressed air stream so the air is cool and dry enough for use in air-operated equipment. A compressed air aftercooler has three primary functions: Cool the air discharged from the air compressor
No
Pump Drive
Belt Drive
Oil Type
Oil Lubricated
Oil System
Splash Lubricated
Pump Low Oil Shut-off Learn More
Pump Low Oil Shut-off
Prevents the air compressor from operating or restarting without an adequate amount of oil in the compressor
No
Tank
Tank Size
80 Gallons
Tank Outlet
1/2 Inch
Electronic Drain Valve Learn More
Electronic Drain Valve
The inexpensive and reliable electric drain valve (EDV) automatically removes condensate from your air system. It has an integral strainer to prevent clogging and saves time and money by eliminating the need for manual draining
No
Tank Orientation
Vertical
Accessories
Pressure Gauge
Yes
Air Dryer
No
Overview
Weight
550 Pounds
Certification
ASME, CRN
Consumer Warranty
1 Year
Product Length
40 Inches
Product Width
32 Inches
Product Height
72 Inches
Power Type
Electric
UPC
0636084029110
