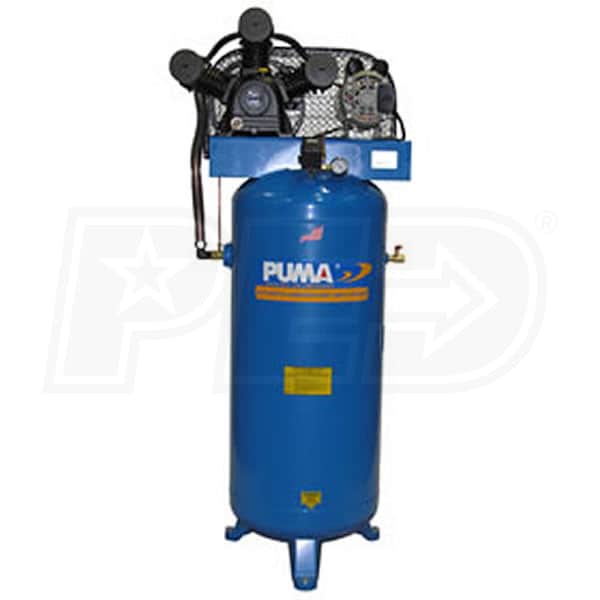

Puma 6.5-HP 60-Gallon (Belt Drive) Single-Stage Air Compressor (208/230V 1-Phase)
Model:
PK7060V
+
Share This Product
Recommended Accessories
Expert Recommended Accessories
Selected by Joshua, our Expert
Required Accessories
9
These accessories are required to properly setup/install this product.
Optional Accessories
10
Features
Grade
Consumer
Style
Single Stage 1-Phase
CFM
19.5
Tank Size
60
- Cast-Iron 1130 RPM 3-Cylinder Pump
- More durable & longer service life than aluminum pumps
- Splash lubrication keeps pump running smoother & quieter
- 3450 RPM Capacitor-Start Motor
- No need for a expensive magnetic starter
- Comes equipped with overload protection
- 208-230V Single Phase; 230V Plug Not Included
- 230V plug needs to be purchased by customer to meet local code
- Belt Drive With Sturdy Guard Housing
- Provides more power, easy to maintain
- 60 Gallon Vertical Tank
- ASME & CRN certified for safety to 135 working PSI
- Convenient 1/2" ball-valve air outlet & 1/4" ball-valve drain
- Produces 21 CFM At 40 PSI; 19.5 CFM At 90 PSI
- Ideal for home & professional applications
California residents see
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
For more information go to: www.p65Warnings.ca.gov
Specifications
PK7060V
General Information
Product Category
Air Compressor - Stationary
Motor
Voltage
208-230 Volt AC
Phase
1-Phase
Magnetic Starter
Magnetic Starter
The Magnetic Starter is the "thinking cap" for the motor of the air compressor. Magnetic starters are electromagnetically operated switches that provide a safe method for certain motors to be started under a large motor load.
No
Amp Draw
Consult Certified Electrician
Recommended Breaker
Consult Certified Electrician
Engine
HP
6.5
Pump
CFM
CFM
Cubic Feet Per Minute, which indicates the compressor's flow rate - or the amount of air that a compressor can produce at a given pressure level. Typically compressors that have higher CFM ratings are able to provide more air, which makes them ideal for larger applications
19.5
CFM Rated @
90 PSI
Pump Material
Solid Cast Iron
Max PSI
Max PSI
PSI, or Pounds Per Square Inch, measures the amount of pressure placed on a square inch of space. In compressor terms, PSI is the amount of force that an air compressor can deliver
135 PSI
Oil Sight Glass
Yes
Pump Type
Single-Stage
After Cooler
After Cooler
An aftercooler is a mechanical heat exchanger designed to remove the heat and moisture of compression from a compressed air stream so the air is cool and dry enough for use in air-operated equipment. A compressed air aftercooler has three primary functions: Cool the air discharged from the air compressor
No
Pump Drive
Belt Drive
Oil Type
Oil Lubricated
Oil System
Splash Lubricated
Pump Low Oil Shut-off
Pump Low Oil Shut-off
Prevents the air compressor from operating or restarting without an adequate amount of oil in the compressor
No
Tank
Tank Size
60 Gallons
Tank Outlet
1/2 Inch
Electronic Drain Valve
Electronic Drain Valve
The inexpensive and reliable electric drain valve (EDV) automatically removes condensate from your air system. It has an integral strainer to prevent clogging and saves time and money by eliminating the need for manual draining
No
Tank Orientation
Vertical
Filter
Regulator
No
Accessories
Pressure Gauge
Yes
Air Dryer
No
Overview
Product Category
Air Compressor - Stationary
Weight
360 Pounds
Certification
ASME
Consumer Warranty
1 Year
Product Length
29 Inches
Product Width
32 Inches
Product Height
70 Inches
Power Type
Electric
UPC
0636084020087
