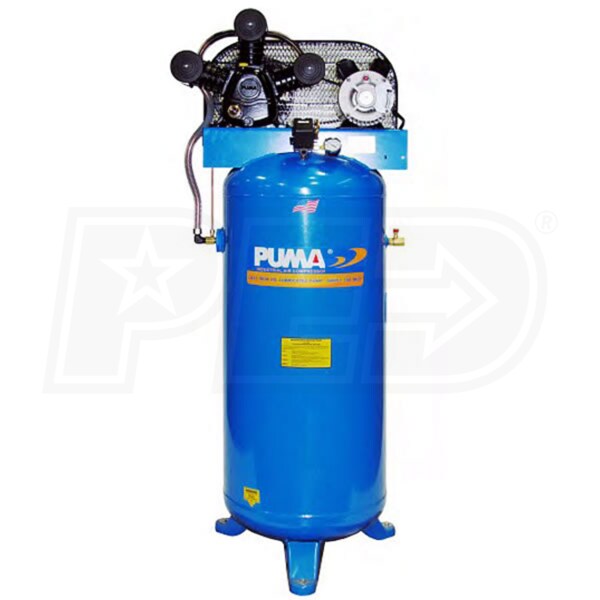

Puma 5-HP 60-Gallon (Belt Drive) Single-Stage Air Compressor

Puma 5-HP 60-Gallon (Belt Drive) Single-Stage Air Compressor
Model: PK6560V
$975.00
Factory-Direct
Ships in 4-7 Business Days
Factory items ship direct from the manufacturer.
Shipping times vary.
Free Shipping &
Tax-Free (Except IL)
Free Lift Gate Service -
Add-Ons
Extended Warranty
Excludes CA

Free ShippingNo Sales Tax* (Except IL)$975.00Buy Now
Free FreightNo Sales Tax* (Except IL)$975.00Visit Site
No Sales Tax* (Except IL)$975.00Visit Site
Factory-Direct
Ships in 4-7 Business Days
Free Freight
Free Freight
Lift Gate Services
Lift Gate Service
*We currently CANNOT ship this product to Alaska, Hawaii or any destination outside of the United States
Share
  • Product Description
  • 20
    Reviews
  • 1
    Product Q&A
  • Recommended Accessories
  • How-To Articles
  • Manuals
Product Description
+
Grade
Commercial
Style
Single Stage 1-Phase
CFM
15.5
CFM Rated @ 90 PSI
Tank Size
60
Gallons
Grade
Commercial
CFM
15.5 CFM Rated @ 90 PSI
Tank Size
60 Gallons
Features
Features
  • Cast-Iron 1180 RPM 3-Cylinder Pump
  • More durable & longer service life than aluminum pumps
  • Splash lubrication keeps pump running smoother & quieter
  • 3450 RPM Capacitor-Start Motor
  • No need for a expensive magnetic starter
  • Comes equipped with overload protection
  • 208-230V Single Phase
  • Requires at least a 23 amp circuit
  • 230V Plug Not Included
  • Needs to be purchased by customer to meet local code
  • Belt Drive With Sturdy Guard Housing
  • Provides more power, easy to maintain
  • 60 Gallon Vertical Tank
  • ASME & CRN certified for safety to 135 working PSI
  • Convenient 1/2" ball-valve air outlet & 1/4" ball-valve drain
  • Produces 17 CFM At 40 PSI; 15.5 CFM At 90 PSI
  • Ideal for home & professional applications
Specifications
Motor
Voltage
208-230 Volt AC
Phase
1-Phase
Magnetic Starter
No
Engine
HP
5
Pump
CFM
15.5
CFM Rated @
90 PSI
Pump Material
Solid Cast Iron
Pump Type
Single-Stage
Max PSI
135 PSI
After Cooler
No
Pump Drive
Belt Drive
Oil Type
Oil Lubricated
Oil System
Splash Lubricated
Pump Low Oil Shut-off
No
Tank
Tank Size
60 Gallons
Tank Outlet
1/2 Inch
Electronic Drain Valve
No
Tank Orientation
Vertical
Overview
Certification
ASME
Weight
325 Pounds
Product Length
22 Inches
Product Width
31 Inches
Product Height
71 Inches
Consumer Warranty
1 Year
Commercial Warranty
1 Year
Power Type
Electric
UPC
0636084165610
Grade
Commercial
Style
Single Stage 1-Phase
CFM
15.5
CFM Rated @ 90 PSI
Tank Size
60
Gallons
Grade
Commercial
CFM
15.5 CFM Rated @ 90 PSI
Tank Size
60 Gallons
Features
Features
  • Cast-Iron 1180 RPM 3-Cylinder Pump
  • More durable & longer service life than aluminum pumps
  • Splash lubrication keeps pump running smoother & quieter
  • 3450 RPM Capacitor-Start Motor
  • No need for a expensive magnetic starter
  • Comes equipped with overload protection
  • 208-230V Single Phase
  • Requires at least a 23 amp circuit
  • 230V Plug Not Included
  • Needs to be purchased by customer to meet local code
  • Belt Drive With Sturdy Guard Housing
  • Provides more power, easy to maintain
  • 60 Gallon Vertical Tank
  • ASME & CRN certified for safety to 135 working PSI
  • Convenient 1/2" ball-valve air outlet & 1/4" ball-valve drain
  • Produces 17 CFM At 40 PSI; 15.5 CFM At 90 PSI
  • Ideal for home & professional applications
Specifications
Motor
Voltage
208-230 Volt AC
Phase
1-Phase
Magnetic Starter
No
Engine
HP
5
Pump
CFM
15.5
CFM Rated @
90 PSI
Pump Material
Solid Cast Iron
Pump Type
Single-Stage
Max PSI
135 PSI
After Cooler
No
Pump Drive
Belt Drive
Oil Type
Oil Lubricated
Oil System
Splash Lubricated
Pump Low Oil Shut-off
No
Tank
Tank Size
60 Gallons
Tank Outlet
1/2 Inch
Electronic Drain Valve
No
Tank Orientation
Vertical
Overview
Certification
ASME
Weight
325 Pounds
Product Length
22 Inches
Product Width
31 Inches
Product Height
71 Inches
Consumer Warranty
1 Year
Commercial Warranty
1 Year
Power Type
Electric
UPC
0636084165610
Product Specs
+
Specifications
Motor
Voltage
208-230 Volt AC
Phase
1-Phase
Magnetic Starter
No
Engine
HP
5
Pump
CFM
15.5
CFM Rated @
90 PSI
Pump Material
Solid Cast Iron
Pump Type
Single-Stage
Max PSI
135 PSI
After Cooler
No
Pump Drive
Belt Drive
Oil Type
Oil Lubricated
Oil System
Splash Lubricated
Pump Low Oil Shut-off
No
Tank
Tank Size
60 Gallons
Tank Outlet
1/2 Inch
Electronic Drain Valve
No
Tank Orientation
Vertical
Overview
Certification
ASME
Weight
325 Pounds
Product Length
22 Inches
Product Width
31 Inches
Product Height
71 Inches
Consumer Warranty
1 Year
Commercial Warranty
1 Year
Power Type
Electric
UPC
0636084165610
Reviews
(20)
+
Puma PK6560V Reviews & Ratings
95% of Reviewers Recommend This Product
Product Q&A
(1)
+
Search Product Q&A's Answered by Gabrielle, the Air Compressor Expert
icon-social-fb1
+
Puma 5-HP 60-Gallon (Belt Drive) Single-Stage Air Compressor $925.00 What's the duty cycle on this unit?
Gary Pennington
from Texas
July 04, 2016
Answer
Most manufacturers do not state the duty cycle of their compressors, but a 50% duty cycle is common for most consumer grade compressors.
We recommend sizing the compressor 1.25-1.5 times the CFM of your tool for continuous operation. If the compressor does not produce enough air volume, CFM, then the pressure will drop.
Reciprocating (Piston) compressors are not designed for continuous or 100% duty cycle. The compressor will cycle off & on if it is sized correctly.
