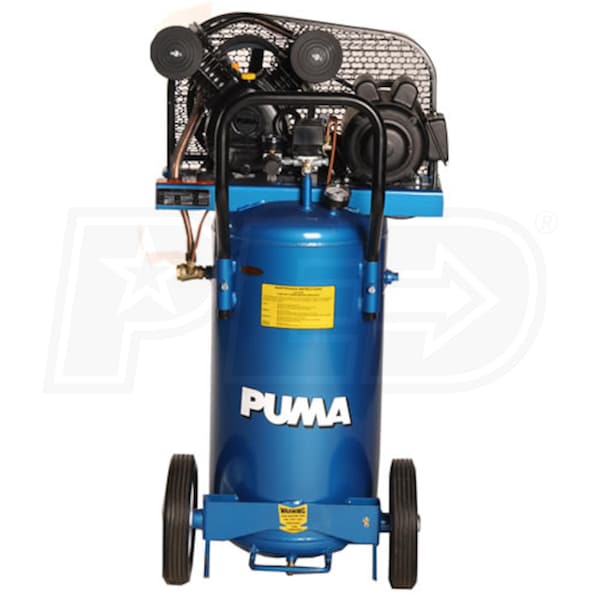

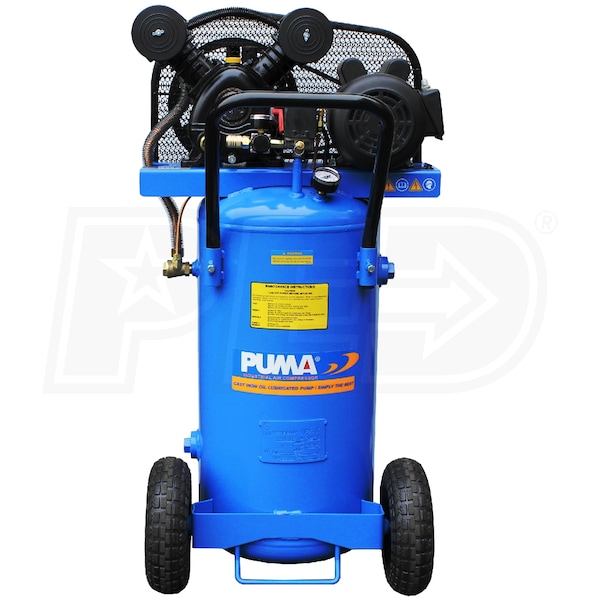

Puma 2-HP 20-Gallon (Belt Drive) Dual-Voltage Cast-Iron Air Compressor
Puma 2-HP 20-Gallon (Belt Drive) Dual-Voltage Cast-Iron Air Compressor
+
Share This Product
-
Product Description
-
25Reviews
-
1Product Q&A
-
Recommended Accessories
-
How-To Articles
Product Description
+−
Grade
Style
CFM
5
CFM Rated @ 90 PSI
Tank Size
20
Gallons
Grade
Consumer
CFM
5 CFM Rated @ 90 PSI
Tank Size
20 Gallons
Features
Features
- Cast-Iron Pump
- More durable and longer life than aluminum pumps
- Reliable Performance
- Splash lubricated pump
- Swedish steel valves
- Manual reset overload protection
- Space Saver
- Vertical tank is perfect for space saving storage
- Oil Sight Glass
- Quickly check pumps oil level with ease
- Dual Voltage Motor
- Wired for 115-volts or easily converted to 230-volts
- Portability
- Large wheels and handles allows for easy mobility
Specifications
Motor
Voltage
120/240 Volt AC
Phase
1-Phase
Magnetic Starter
No
Engine
HP
2
Engine Low Oil Shut-off
No
Pump
CFM
5
CFM Rated @
90 PSI
Pump Material
Solid Cast Iron
Max PSI
135 PSI
Oil Sight Glass
Yes
Pump Type
Single-Stage
After Cooler
No
Pump Drive
Belt Drive
Oil Type
Oil Lubricated
Pump Low Oil Shut-off
No
Tank
Tank Size
20 Gallons
Tank Outlet
1/4 Inch
Electronic Drain Valve
No
Tank Orientation
Vertical
Overview
Weight
183 Pounds
Consumer Warranty
1 Year
Product Length
45 Inches
Product Width
17 Inches
Product Height
23.5 Inches
Power Type
Electric
UPC
0636084150210
Additional Model Numbers
PK5020VP, PK-5020VP
Grade
Style
CFM
5
CFM Rated @ 90 PSI
Tank Size
20
Gallons
Grade
Consumer
CFM
5 CFM Rated @ 90 PSI
Tank Size
20 Gallons
Features
Features
- Cast-Iron Pump
- More durable and longer life than aluminum pumps
- Reliable Performance
- Splash lubricated pump
- Swedish steel valves
- Manual reset overload protection
- Space Saver
- Vertical tank is perfect for space saving storage
- Oil Sight Glass
- Quickly check pumps oil level with ease
- Dual Voltage Motor
- Wired for 115-volts or easily converted to 230-volts
- Portability
- Large wheels and handles allows for easy mobility
Specifications
Motor
Voltage
120/240 Volt AC
Phase
1-Phase
Magnetic Starter
No
Engine
HP
2
Engine Low Oil Shut-off
No
Pump
CFM
5
CFM Rated @
90 PSI
Pump Material
Solid Cast Iron
Max PSI
135 PSI
Oil Sight Glass
Yes
Pump Type
Single-Stage
After Cooler
No
Pump Drive
Belt Drive
Oil Type
Oil Lubricated
Pump Low Oil Shut-off
No
Tank
Tank Size
20 Gallons
Tank Outlet
1/4 Inch
Electronic Drain Valve
No
Tank Orientation
Vertical
Overview
Weight
183 Pounds
Consumer Warranty
1 Year
Product Length
45 Inches
Product Width
17 Inches
Product Height
23.5 Inches
Power Type
Electric
UPC
0636084150210
Additional Model Numbers
PK5020VP, PK-5020VP
Product Specs
+−
Specifications
Motor
Voltage
120/240 Volt AC
Phase
1-Phase
Magnetic Starter
No
Engine
HP
2
Engine Low Oil Shut-off
No
Pump
CFM
5
CFM Rated @
90 PSI
Pump Material
Solid Cast Iron
Max PSI
135 PSI
Oil Sight Glass
Yes
Pump Type
Single-Stage
After Cooler
No
Pump Drive
Belt Drive
Oil Type
Oil Lubricated
Pump Low Oil Shut-off
No
Tank
Tank Size
20 Gallons
Tank Outlet
1/4 Inch
Electronic Drain Valve
No
Tank Orientation
Vertical
Overview
Weight
183 Pounds
Consumer Warranty
1 Year
Product Length
45 Inches
Product Width
17 Inches
Product Height
23.5 Inches
Power Type
Electric
UPC
0636084150210
Additional Model Numbers
PK5020VP, PK-5020VP
Product Q&A
(1)
+−
Search Product Q&A's
Answered by Gabrielle, the Air Compressor Expert
+−
STEVE,MY QUESTION IS:THE PUMA #PK5020VP & INGERSOLL #P1.5IU-AP ARE THEY THE SAME UNIT ? IS ONE BETTER THAN THE OTHER? DO THEY HAVE THE SAME MOTOR AND COMPRESSOR UNIT? CAN YOU ADVISE?
THANK YOU, CHARLIE
CHARLIE
from New Mexico
November 08, 2011
Answer
I understand your confusion- it seems all the little companies have been eaten by the big ones. In this case, they are different companies.
The big difference between the two is that the Ingersoll unit is built for continuous duty (sometimes called 100% duty cycle). That means it can run for very long periods of time without the motor or the pump overheating.
That extra performance is what accounts for this unit being 50 pounds heavier, too.
Continuous duty units are used for high volume sprayers, large sanders, industrial applications, etc.
The Puma unit is sturdy and dependable, but it is meant for tools that use air intermittently, like framers, nailers, and impact wrenches.
The manufacturers don't tell us which brands of pumps and motors they use. You could try calling them directly to find out: Ingersoll Rand Tech Support is (800) 866-5457; and Puma can be reached at (901) 744-7979 (that's Memphis, TN).
The big difference between the two is that the Ingersoll unit is built for continuous duty (sometimes called 100% duty cycle). That means it can run for very long periods of time without the motor or the pump overheating.
That extra performance is what accounts for this unit being 50 pounds heavier, too.
Continuous duty units are used for high volume sprayers, large sanders, industrial applications, etc.
The Puma unit is sturdy and dependable, but it is meant for tools that use air intermittently, like framers, nailers, and impact wrenches.
The manufacturers don't tell us which brands of pumps and motors they use. You could try calling them directly to find out: Ingersoll Rand Tech Support is (800) 866-5457; and Puma can be reached at (901) 744-7979 (that's Memphis, TN).
