Features
Grade
Consumer
Style
DC Compressors
CFM
1.36
Tank Size
1.5
- Oil-Less, Direct-Drive Design
- Allows unit to be mounted in any direction
- Ideal for offroad, RV, agriculture, construction & motorsport use
- Runs On 12-Volt DC Power
- 6.5-ft battery cable with alligator connectors included
- Use anywhere you can mount a battery & need on-board air
- Requires 50aH battery (battery not included)
- Patented Pump Design
- Runs with lower noise (78dB) & improved cooling
- Deep Cooling Fin Design On Cylinder Head & Cylinders
- High efficiency cooling helps the pump last longer
- Oversized Motor Cooling Fan
- Helps prevents the motor from overheating
- Continuous 100% Duty Cycle
- Ideal for high-demand applications
- 1.5 Gallon Air Tank
- Increases air availability
- Anti-vibration feet help reduce noise
- On-Board Gauges & Air Outlet
- Monitor tank & output pressure at a glance to 135 PSI
- Quick-connector for fast tool changes
California residents see
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
For more information go to: www.p65Warnings.ca.gov
Specifications
PD1006
General Information
Product Category
Air Compressor - Portable
Motor
Voltage
12 Volt DC
dBA
dBA
Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB.
78
Magnetic Starter
Magnetic Starter
The Magnetic Starter is the "thinking cap" for the motor of the air compressor. Magnetic starters are electromagnetically operated switches that provide a safe method for certain motors to be started under a large motor load.
No
Amp Draw
46
Engine
HP
0.75
Pump
CFM
CFM
Cubic Feet Per Minute, which indicates the compressor's flow rate - or the amount of air that a compressor can produce at a given pressure level. Typically compressors that have higher CFM ratings are able to provide more air, which makes them ideal for larger applications
1.36
CFM Rated @
90 PSI
CFM @ 40 PSI
3.3
Pump Material
Aluminum
Max PSI
Max PSI
PSI, or Pounds Per Square Inch, measures the amount of pressure placed on a square inch of space. In compressor terms, PSI is the amount of force that an air compressor can deliver
135 PSI
Pump Type
Single-Stage
After Cooler
After Cooler
An aftercooler is a mechanical heat exchanger designed to remove the heat and moisture of compression from a compressed air stream so the air is cool and dry enough for use in air-operated equipment. A compressed air aftercooler has three primary functions: Cool the air discharged from the air compressor
No
Pump Drive
Direct Drive
Oil Type
Oil Free
Pump Low Oil Shut-off
Pump Low Oil Shut-off
Prevents the air compressor from operating or restarting without an adequate amount of oil in the compressor
No
Duty Cycle
100%
Tank
Tank Size
1.5 Gallons
Tank Outlet
1/4 Inch
Electronic Drain Valve
Electronic Drain Valve
The inexpensive and reliable electric drain valve (EDV) automatically removes condensate from your air system. It has an integral strainer to prevent clogging and saves time and money by eliminating the need for manual draining
No
Tank Orientation
Horizontal
Accessories
Pressure Gauge
Yes
Air Dryer
No
Air Filter
Yes
Overview
Product Category
Air Compressor - Portable
Weight
31 Pounds
Consumer Warranty
1 Year
Commercial Warranty
1 Year
Product Length
17.5 Inches
Product Width
6.2 Inches
Product Height
16.5 Inches
UPC
636084210686
Reviews
(20)
Puma PD1006 Reviews & Ratings
Product Q&A
(2)
Product Questions
Answered by Joshua, the Air Compressor Expert
How many amps does this compressor draw?
Jason S.
from Ohio
June 29, 2018
Steve,
What are your thoughts on the Puma PD1006, vs the Viair 450P? I am using this primarily for a vacation in 2 weeks where we will be driving on the beach with a full size truck. I need to fill up 4 tires each day...tire size is about 34x10 on 20" rims...I need to fill up before towing the camper home to 80psi.
After this trip I will keep the compressor with me for the unexpected road-side repairs of flats.
I like the price on the Puma about $100 cheaper then the Viair 450P.
Before I spend the money what are your thoughts? Which will fill the tires faster?
I assume with the puma I might even be able to run a air gun if needed.
Michael
from Vermont
July 11, 2016
How-To Articles
Electric Generators Direct Contest
Thank you so much to everyone who entered the Powered For Anything Contest Give...
How to Pick the Perfect Portable Single-Stage Compressor
We’ve all heard that Rome wasn’t built in a day, but then again the Romans didn...
Power Equipment How-To Library
Articles, Tips and Buying Guides from Our Experts
Manuals
Ask A Question!
*Required Fields
+
Thank You For Submitting Your Question
Your submission has been sent successfully. Please give our experts up to two business days to respond.
Media Gallery

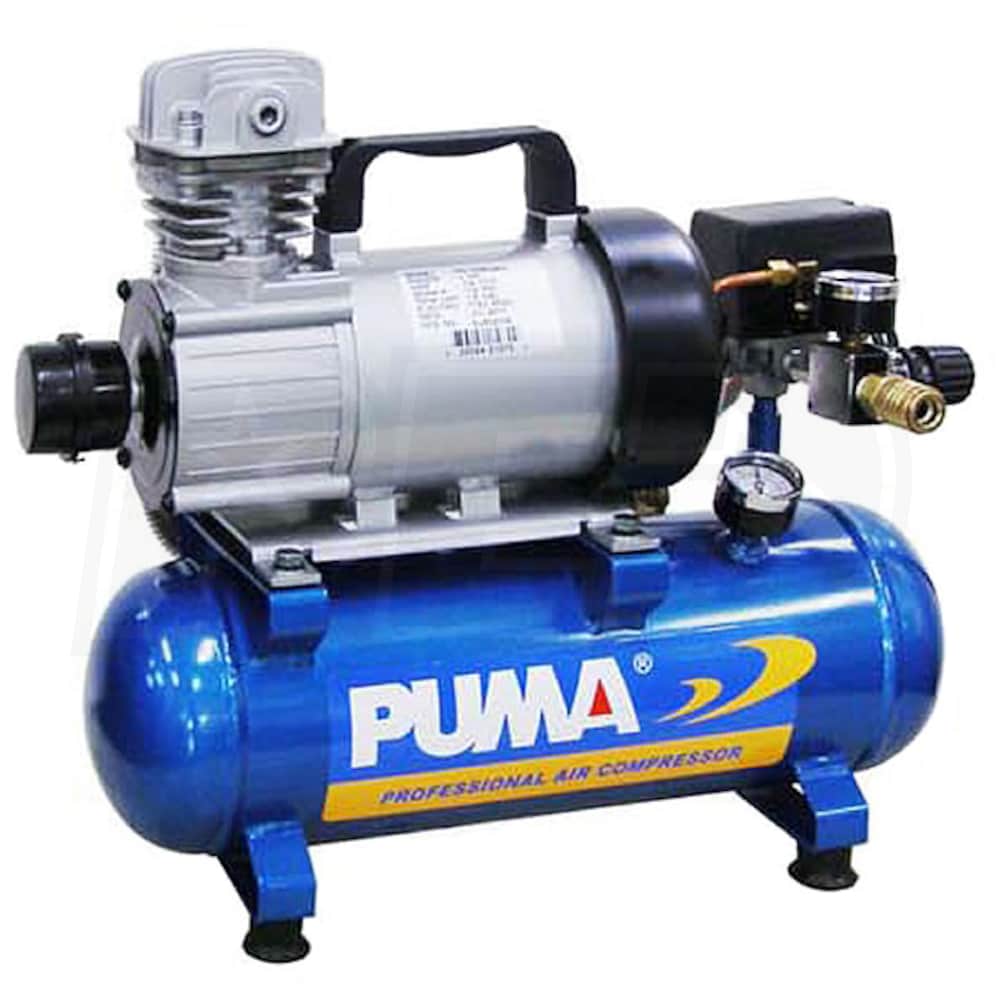

Puma 3/4-HP 1.5-Gallon 12-Volt Continuous Duty DC Air Compressor
