Features
Grade
Contractor
Style
Twin Stack
CFM
3.6
Tank Size
2
- Professional Direct Drive Series
- Ideal for home & light contractor applications
- Compact & Portable
- Weighs only 45 pounds; easy to transport & store
- 2 one-gallon tanks for plenty of air reserve
- Patented Pump Design
- 3450 RPM provides lower noise (82dBA) & improved cooling
- 4.8 CFM at 40 PSI; 3.6 CFM at 90 PSI
- Maintenance Free
- Oil-free design means you can spend more time working
- Induction Motor With Overload Protection
- Uses standard 115 volt, single phase outlets
- Draws 13.5 amps at full load; 135 PSI maximum
- Top-Mounted Controls
- Easy to reach hose connection, regulator & air pressure gauge
- Cushioned Handle Grip
- Balanced grip makes the compressor easy to carry
California residents see
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
For more information go to: www.p65Warnings.ca.gov
Specifications
LA9021
Motor
Voltage
115 Volt AC
Phase
1-Phase
dBA
dBA
Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB.
82
Magnetic Starter
Magnetic Starter
The Magnetic Starter is the "thinking cap" for the motor of the air compressor. Magnetic starters are electromagnetically operated switches that provide a safe method for certain motors to be started under a large motor load.
No
Amp Draw
13.5
Engine
HP
1.5
Pump
CFM
CFM
Cubic Feet Per Minute, which indicates the compressor's flow rate - or the amount of air that a compressor can produce at a given pressure level. Typically compressors that have higher CFM ratings are able to provide more air, which makes them ideal for larger applications
3.6
CFM Rated @
90 PSI
CFM @ 40 PSI
4.8
Pump Material
Aluminum
Max PSI
Max PSI
PSI, or Pounds Per Square Inch, measures the amount of pressure placed on a square inch of space. In compressor terms, PSI is the amount of force that an air compressor can deliver
135 PSI
Pump Type
Single-Stage
After Cooler
After Cooler
An aftercooler is a mechanical heat exchanger designed to remove the heat and moisture of compression from a compressed air stream so the air is cool and dry enough for use in air-operated equipment. A compressed air aftercooler has three primary functions: Cool the air discharged from the air compressor
No
Pump Drive
Direct Drive
Oil Type
Oil Free
Tank
Tank Size
2 Gallons
Tank Outlet
1/4 Inch
Electronic Drain Valve
Electronic Drain Valve
The inexpensive and reliable electric drain valve (EDV) automatically removes condensate from your air system. It has an integral strainer to prevent clogging and saves time and money by eliminating the need for manual draining
No
Tank Orientation
Horizontal
Accessories
Pressure Gauge
Yes
Air Dryer
No
Overview
Weight
45 Pounds
Certification
CSA
Consumer Warranty
1 Year
Product Length
19 Inches
Product Width
14 Inches
Product Height
17 Inches
Power Type
Electric
UPC
636084690211
Reviews
(2)
Puma LA9021 Reviews & Ratings
How-To Articles
Electric Generators Direct Contest
Thank you so much to everyone who entered the Powered For Anything Contest Give...
How to Pick the Perfect Twin-Stack Compressor
You don't have to be Tim "The Tool Man" Taylor to take on home improvement task...
Power Equipment How-To Library
Articles, Tips and Buying Guides from Our Experts
Manuals
Ask A Question!
*Required Fields
+
Thank You For Submitting Your Question
Your submission has been sent successfully. Please give our experts up to two business days to respond.
Media Gallery

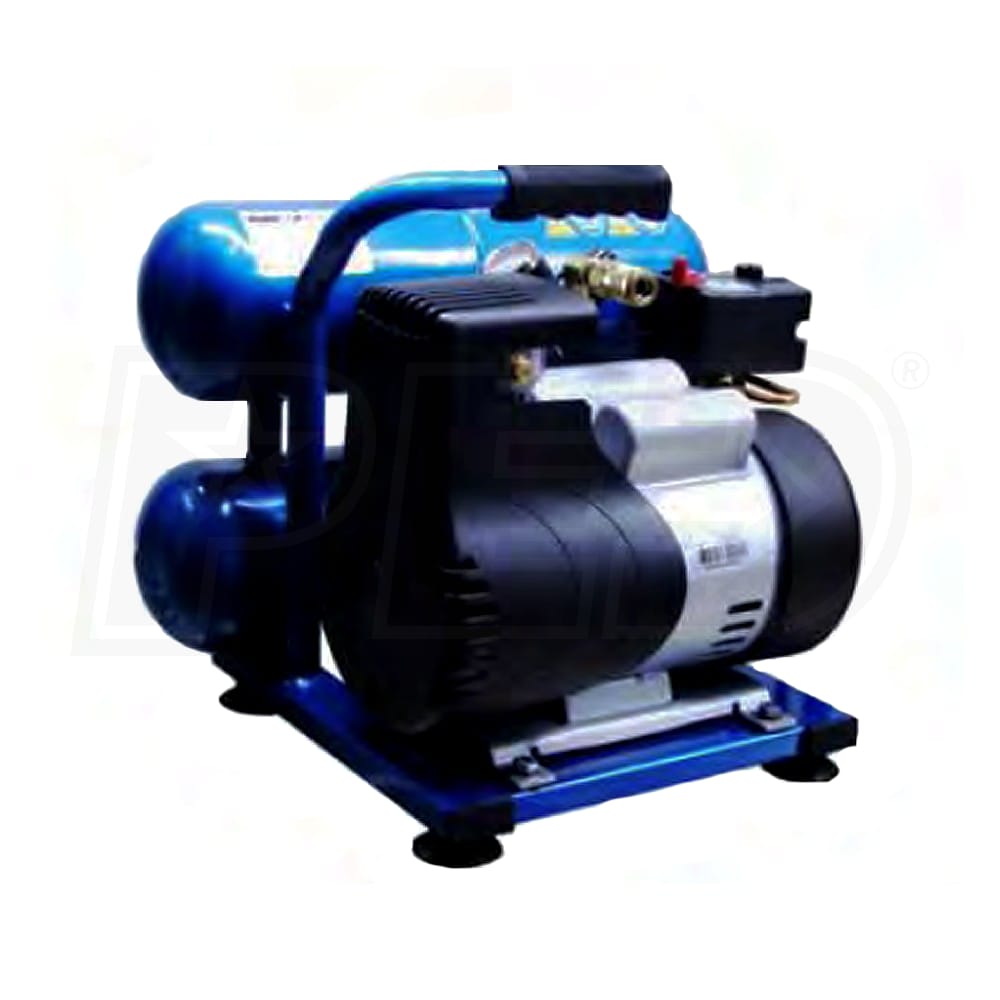

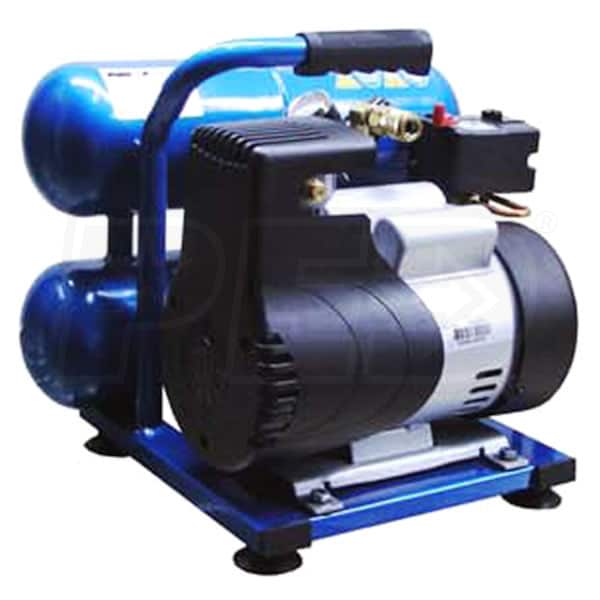

Puma 1.5-HP 2-Gallon Professional Twin Stack Air Compressor
