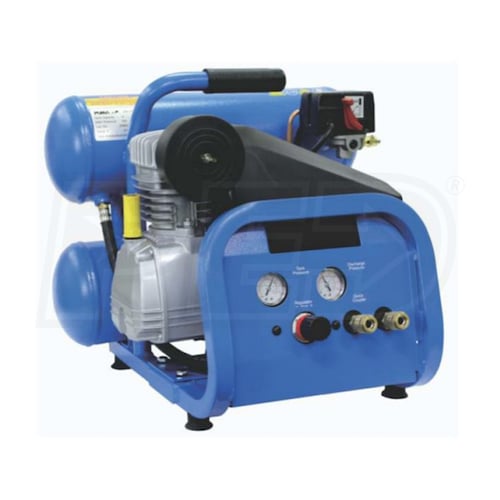

Puma 2-HP 4-Gallon Contractor Twin Stack Air Compressor

Model:

DP2022S

Write A Review
Product Discontinued
Sorry, this product is no longer available.
Continue Shopping With These Categories
Puma 2-HP 4-Gallon Contractor Twin Stack Air Compressor
Puma 2-HP 4-Gallon Contractor Twin Stack Air Compressor
Model: DP2022S
Product Discontinued
Accessories
Specifications
Reviews
How-To Articles
Share

Recommended Accessories

Power Equipment Direct expert image
Expert Recommended Accessories Selected by Melissa, our Expert
Required Accessories 9
These accessories are required to properly setup/install this product.
Optional Accessories 10

Features

Grade

Contractor

Style

Twin Stack

CFM

4.6

Tank Size

4

    California residents see
    WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
    For more information go to: www.p65Warnings.ca.gov

    Specifications

    DP2022S
    specs product image PID-588
    Motor
    Voltage
    115 Volt AC
    Phase
    1-Phase
    dBA Learn More
    dBA
    Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB.
    85
    Magnetic Starter Learn More
    Magnetic Starter
    The Magnetic Starter is the "thinking cap" for the motor of the air compressor. Magnetic starters are electromagnetically operated switches that provide a safe method for certain motors to be started under a large motor load.
    No
    Amp Draw
    13
    Engine
    HP
    2
    Pump
    CFM Learn More
    CFM
    Cubic Feet Per Minute, which indicates the compressor's flow rate - or the amount of air that a compressor can produce at a given pressure level. Typically compressors that have higher CFM ratings are able to provide more air, which makes them ideal for larger applications
    4.6
    CFM Rated @
    90 PSI
    CFM @ 40 PSI
    6
    Pump Material
    Aluminum w/ Cast Iron Sleeve
    Max PSI Learn More
    Max PSI
    PSI, or Pounds Per Square Inch, measures the amount of pressure placed on a square inch of space. In compressor terms, PSI is the amount of force that an air compressor can deliver
    135 PSI
    Oil Sight Glass
    No
    Pump Type
    Single-Stage
    After Cooler Learn More
    After Cooler
    An aftercooler is a mechanical heat exchanger designed to remove the heat and moisture of compression from a compressed air stream so the air is cool and dry enough for use in air-operated equipment. A compressed air aftercooler has three primary functions: Cool the air discharged from the air compressor
    No
    Pump Drive
    Direct Drive
    Oil Type
    Oil Lubricated
    Oil System
    Splash Lubricated
    Pump Low Oil Shut-off Learn More
    Pump Low Oil Shut-off
    Prevents the air compressor from operating or restarting without an adequate amount of oil in the compressor
    No
    Tank
    Tank Size
    4 Gallons
    Tank Outlet
    1/4 Inch
    Electronic Drain Valve Learn More
    Electronic Drain Valve
    The inexpensive and reliable electric drain valve (EDV) automatically removes condensate from your air system. It has an integral strainer to prevent clogging and saves time and money by eliminating the need for manual draining
    No
    Tank Orientation
    Horizontal
    Accessories
    Pressure Gauge
    Yes
    Air Dryer
    No
    Overview
    Weight
    75 Pounds
    Certification
    CSA
    Consumer Warranty
    1 Year
    Product Length
    19.2 Inches
    Product Width
    19.6 Inches
    Product Height
    18.8 Inches
    Power Type
    Electric
    UPC
    0636084820229
