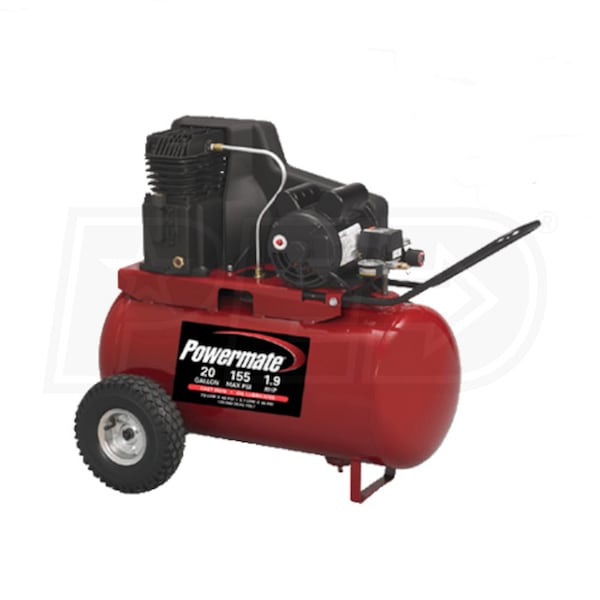

Powermate 1.7-HP 20-Gallon (Belt Drive) Dual-Voltage Cast-Iron Air Compressor

Powermate 1.7-HP 20-Gallon (Belt Drive) Dual-Voltage Cast-Iron Air Compressor
Our Price
Compare Prices
Shipping Info
Model: PPA1982054
$661.99
In-Stock
Ships from Powermate
Factory items ship direct from the manufacturer
Shipping times vary
Free Shipping
Add-Ons
+$50.00
Extended Warranty
Excludes CA

Free Shipping$661.99Buy Now
Free Freight$661.99Visit Site
$711.99Visit Site
In-Stock
Ships from Powermate
Ships in 2-5 Business Days
Free Freight
Free Freight
Lift Gate Services
Lift Gate Service
*We currently CANNOT ship this product to Alaska, Hawaii or any destination outside of the United States
Share
  • Product Description
  • Reviews
  • Product Q&A
  • Recommended Accessories
  • How-To Articles
Product Description
+
Grade
Consumer
Style
Portable - Horizontal
CFM
5.7
CFM Rated @ 90 PSI
Tank Size
20
Gallons
Grade
Consumer
CFM
5.7 CFM Rated @ 90 PSI
Tank Size
20 Gallons
Features
Features
  • Cast Iron Twin-Cylinder Pump
  • One-piece cast iron crankcase
  • Thermally stable cast iron cylinder body
  • Aluminum head & valve plate and automotive style ball bearings
  • Durable Swedish stainless steel reed valves
  • Oil level sight glass and easily accessible oil fill
  • 12" cast iron balanced fly wheel
  • Heavy Duty 1.9-HP Induction Motor
  • Designed for maximum performance and efficiency
  • 155 PSI Max Pressure
  • Designed for optimum tool performance
  • 20-Gallon Portable Tank Design
  • Pre-attached pneumatic tires for maximum portability
  • Dual-Voltage Motor
  • Wired for standard 120-Volt outlet, can be converted to 240-Volt
  • Synthetic Oil Included
  • Designed for optimum performance and long life
  • Added Equipment
  • Quick-set regulator, tank & working pressure gauges
  • On/Off Switch
Specifications
Motor
Voltage
120/240 Volt AC
Phase
1-Phase
Magnetic Starter
No
Recommended Breaker
25 Amp Breaker
Engine
HP
1.7
Pump
CFM
5.7
CFM Rated @
90 PSI
Pump Material
Aluminum w/ Cast Iron Sleeve
Pump Type
Single-Stage
Max PSI
150 PSI
Oil Sight Glass
Yes
After Cooler
No
Pump Drive
Belt Drive
Oil Type
Oil Lubricated
Pump Low Oil Shut-off
No
Tank
Tank Size
20 Gallons
Tank Orientation
Horizontal
Overview
Weight
166 Pounds
Product Length
34 Inches
Product Width
22.75 Inches
Product Height
34.5 Inches
Consumer Warranty
2 Years
Power Type
Electric
UPC
846212002315
Grade
Consumer
Style
Portable - Horizontal
CFM
5.7
CFM Rated @ 90 PSI
Tank Size
20
Gallons
Grade
Consumer
CFM
5.7 CFM Rated @ 90 PSI
Tank Size
20 Gallons
Features
Features
  • Cast Iron Twin-Cylinder Pump
  • One-piece cast iron crankcase
  • Thermally stable cast iron cylinder body
  • Aluminum head & valve plate and automotive style ball bearings
  • Durable Swedish stainless steel reed valves
  • Oil level sight glass and easily accessible oil fill
  • 12" cast iron balanced fly wheel
  • Heavy Duty 1.9-HP Induction Motor
  • Designed for maximum performance and efficiency
  • 155 PSI Max Pressure
  • Designed for optimum tool performance
  • 20-Gallon Portable Tank Design
  • Pre-attached pneumatic tires for maximum portability
  • Dual-Voltage Motor
  • Wired for standard 120-Volt outlet, can be converted to 240-Volt
  • Synthetic Oil Included
  • Designed for optimum performance and long life
  • Added Equipment
  • Quick-set regulator, tank & working pressure gauges
  • On/Off Switch
Specifications
Motor
Voltage
120/240 Volt AC
Phase
1-Phase
Magnetic Starter
No
Recommended Breaker
25 Amp Breaker
Engine
HP
1.7
Pump
CFM
5.7
CFM Rated @
90 PSI
Pump Material
Aluminum w/ Cast Iron Sleeve
Pump Type
Single-Stage
Max PSI
150 PSI
Oil Sight Glass
Yes
After Cooler
No
Pump Drive
Belt Drive
Oil Type
Oil Lubricated
Pump Low Oil Shut-off
No
Tank
Tank Size
20 Gallons
Tank Orientation
Horizontal
Overview
Weight
166 Pounds
Product Length
34 Inches
Product Width
22.75 Inches
Product Height
34.5 Inches
Consumer Warranty
2 Years
Power Type
Electric
UPC
846212002315
Product Specs
+
Specifications
Motor
Voltage
120/240 Volt AC
Phase
1-Phase
Magnetic Starter
No
Recommended Breaker
25 Amp Breaker
Engine
HP
1.7
Pump
CFM
5.7
CFM Rated @
90 PSI
Pump Material
Aluminum w/ Cast Iron Sleeve
Pump Type
Single-Stage
Max PSI
150 PSI
Oil Sight Glass
Yes
After Cooler
No
Pump Drive
Belt Drive
Oil Type
Oil Lubricated
Pump Low Oil Shut-off
No
Tank
Tank Size
20 Gallons
Tank Orientation
Horizontal
Overview
Weight
166 Pounds
Product Length
34 Inches
Product Width
22.75 Inches
Product Height
34.5 Inches
Consumer Warranty
2 Years
Power Type
Electric
UPC
846212002315
