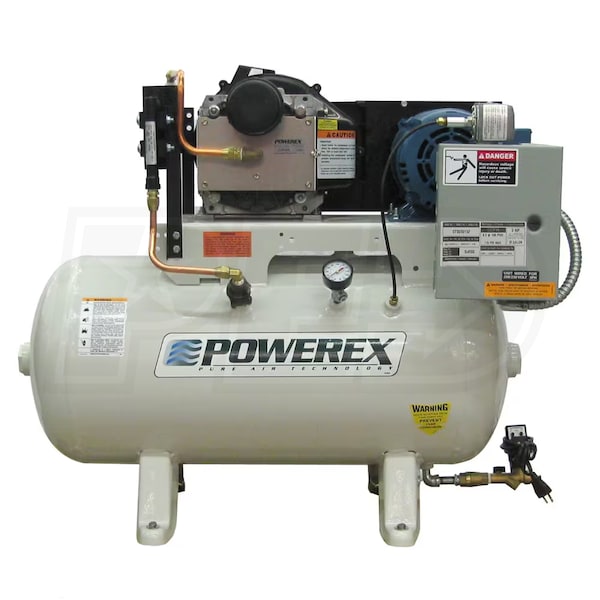

Powerex STS 5-HP 60-Gallon Oil-Less Open Scroll Air Compressor w/ Refrigerated Dryer (208/230V 1-Phase 116 PSI)

Powerex STS 5-HP 60-Gallon Oil-Less Open Scroll Air Compressor w/ Refrigerated Dryer (208/230V 1-Phase 116 PSI)
Model: STS151264
$8,699.00
Factory-Direct
Ships in 2 - 3 Weeks
Factory items ship direct from the manufacturer.
Shipping times vary.
Free Shipping &
Tax-Free (Except IL)
Add-Ons
+$75.00
Free ShippingNo Sales Tax* (Except IL)$8,699.00Buy Now
Free FreightNo Sales Tax* (Except IL)$8,699.00Visit Site
Factory-Direct
Ships in 2 - 3 Weeks
Enter your ZIP Code below to see an estimated arrival time of delivery to your home or business.
*We currently CANNOT ship this product to Alaska, Hawaii or any destination outside of the United States
Free Freight
Free Freight
Lift Gate Services
Lift Gate Service
  • Product Description
  • Reviews
  • Product Q&A
  • How-To Articles
  • Manuals
Product Description
+
Grade
Commercial Grade Air Compressors
Style
Scroll Compressors
CFM
15.2
CFM Rated @ 100 PSI
Tank Size
60
Gallons


Product Video Disclaimer: "PED is not responsible for any variances from the product in this video and the item you purchase. Please review all product specs prior to purchase."

Features
Features
  • ISO 8573-1 Class Zero Oil-Free Air (Not For Medical Use)
  • Perfect for any application where a compact footprint and completely clean, dry air is required
  • Ideal for manufacturing, instrumentation, pharmaceutical production, laboratories, etc.
  • Onboard Refrigerated Air Dryer
  • Completely integrated into the system to eliminate contamination of the end product
  • Easy to access and simple to maintain
  • Integral Aftercooler Design
  • Cools the compressed air, allowing water droplets to condense out of the air flow for drier air
  • Extremely Quiet & Energy Efficient
  • 72 dBA is perfect for situations where excessive noise or vibration may be an issue; about as loud as a vacuum cleaner
  • The oil-free scroll design eliminates the need for costly oil changes; the few moving parts make it extremely durable
  • No oil contamination of your end product, powered equipment, or the environment
  • UL Listed Magnetic Starter
  • Safely & reliably starts the compressor; provides under-voltage and overload protection
  • 60-Gallon Air Tank With Automatic 115V No-Loss Tank Drain
  • Certified to meet ASME standards for your safety; rated up to 200 PSI (116 PSI maximum working pressure)
  • Simplifies maintenance- just set the timer for regular draining of the air receiver; will not affect air pressure
  • Limited Standard Factory Warranty Covers Defects In Materials & Workmanship
  • 12 months / 5,000 hours of use; covers the airend for 36 months / 10,000 hours whichever comes first
  • Premium Warranty extends to 2 years / 7,500 hours; available at time of purchase for an extra charge (see Accessories)
Specifications
Motor
Voltage
208-230 Volt AC
Phase
1-Phase
Magnetic Starter
Yes
Amp Draw
24
Recommended Breaker
Consult Certified Electrician
dBA
72
Engine
HP
5
Pump
CFM
15.2
CFM Rated @
100 PSI
Pump Type
Scroll Compressor
Max PSI
116 PSI
After Cooler
Yes
Pump Drive
Belt Drive
Oil Type
Oil Free
Duty Cycle
100%
Tank
Tank Size
60 Gallons
Tank Included
Yes
Tank Outlet
1/2 Inch
Electronic Drain Valve
Yes
Tank Orientation
Horizontal
Accessories
Pressure Gauge
Yes
Air Dryer
Yes
Air Filter
Yes
Overview
Certification
ASME, OSHA, UL
Weight
470 Pounds
Product Length
53 Inches
Product Width
23 Inches
Product Height
43 Inches
Consumer Warranty
1 Year
Commercial Warranty
1 Year
Grade
Commercial Grade Air Compressors
Style
Scroll Compressors
CFM
15.2
CFM Rated @ 100 PSI
Tank Size
60
Gallons


Product Video Disclaimer: "PED is not responsible for any variances from the product in this video and the item you purchase. Please review all product specs prior to purchase."

Features
Features
  • ISO 8573-1 Class Zero Oil-Free Air (Not For Medical Use)
  • Perfect for any application where a compact footprint and completely clean, dry air is required
  • Ideal for manufacturing, instrumentation, pharmaceutical production, laboratories, etc.
  • Onboard Refrigerated Air Dryer
  • Completely integrated into the system to eliminate contamination of the end product
  • Easy to access and simple to maintain
  • Integral Aftercooler Design
  • Cools the compressed air, allowing water droplets to condense out of the air flow for drier air
  • Extremely Quiet & Energy Efficient
  • 72 dBA is perfect for situations where excessive noise or vibration may be an issue; about as loud as a vacuum cleaner
  • The oil-free scroll design eliminates the need for costly oil changes; the few moving parts make it extremely durable
  • No oil contamination of your end product, powered equipment, or the environment
  • UL Listed Magnetic Starter
  • Safely & reliably starts the compressor; provides under-voltage and overload protection
  • 60-Gallon Air Tank With Automatic 115V No-Loss Tank Drain
  • Certified to meet ASME standards for your safety; rated up to 200 PSI (116 PSI maximum working pressure)
  • Simplifies maintenance- just set the timer for regular draining of the air receiver; will not affect air pressure
  • Limited Standard Factory Warranty Covers Defects In Materials & Workmanship
  • 12 months / 5,000 hours of use; covers the airend for 36 months / 10,000 hours whichever comes first
  • Premium Warranty extends to 2 years / 7,500 hours; available at time of purchase for an extra charge (see Accessories)
Specifications
Motor
Voltage
208-230 Volt AC
Phase
1-Phase
Magnetic Starter
Yes
Amp Draw
24
Recommended Breaker
Consult Certified Electrician
dBA
72
Engine
HP
5
Pump
CFM
15.2
CFM Rated @
100 PSI
Pump Type
Scroll Compressor
Max PSI
116 PSI
After Cooler
Yes
Pump Drive
Belt Drive
Oil Type
Oil Free
Duty Cycle
100%
Tank
Tank Size
60 Gallons
Tank Included
Yes
Tank Outlet
1/2 Inch
Electronic Drain Valve
Yes
Tank Orientation
Horizontal
Accessories
Pressure Gauge
Yes
Air Dryer
Yes
Air Filter
Yes
Overview
Certification
ASME, OSHA, UL
Weight
470 Pounds
Product Length
53 Inches
Product Width
23 Inches
Product Height
43 Inches
Consumer Warranty
1 Year
Commercial Warranty
1 Year
Product Specs
+
Specifications
Motor
Voltage
208-230 Volt AC
Phase
1-Phase
Magnetic Starter
Yes
Amp Draw
24
Recommended Breaker
Consult Certified Electrician
dBA
72
Engine
HP
5
Pump
CFM
15.2
CFM Rated @
100 PSI
Pump Type
Scroll Compressor
Max PSI
116 PSI
After Cooler
Yes
Pump Drive
Belt Drive
Oil Type
Oil Free
Duty Cycle
100%
Tank
Tank Size
60 Gallons
Tank Included
Yes
Tank Outlet
1/2 Inch
Electronic Drain Valve
Yes
Tank Orientation
Horizontal
Accessories
Pressure Gauge
Yes
Air Dryer
Yes
Air Filter
Yes
Overview
Certification
ASME, OSHA, UL
Weight
470 Pounds
Product Length
53 Inches
Product Width
23 Inches
Product Height
43 Inches
Consumer Warranty
1 Year
Commercial Warranty
1 Year
