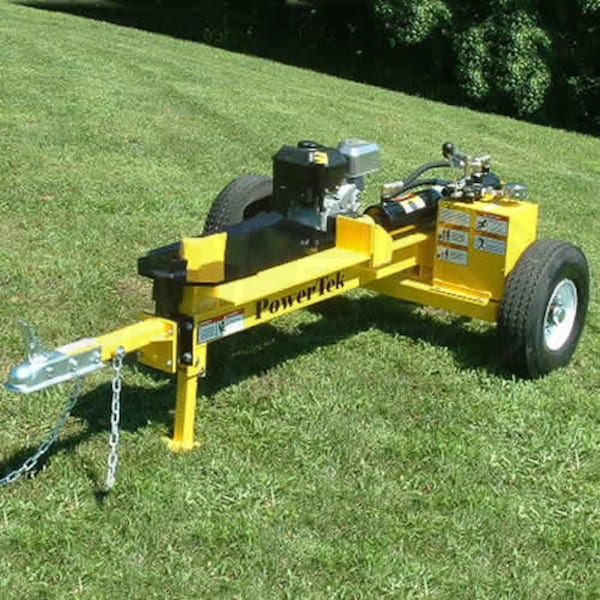

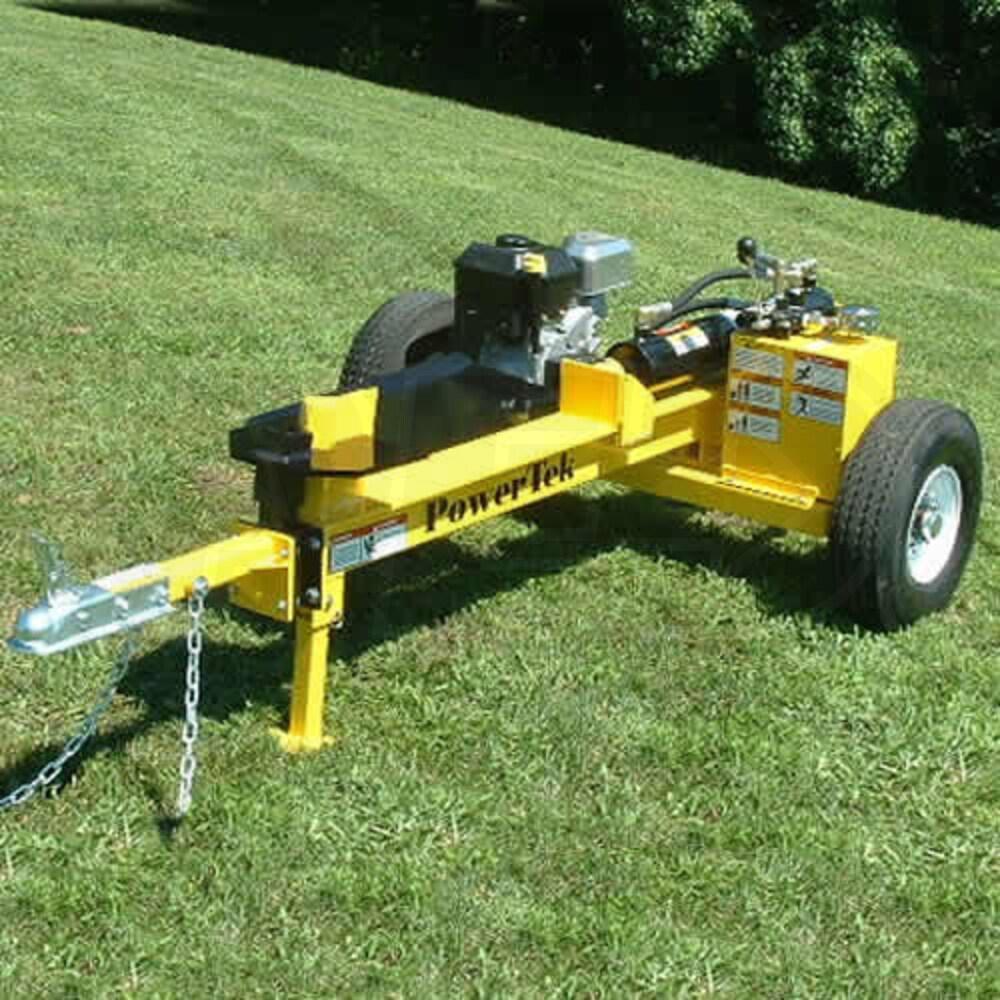

PowerTek 20-Ton Horizontal Gas Log Splitter w/ Honda 160cc Engine

Model:

516-H

Write A Review
$2,719.99
Free Shipping
  Learn More About Free Freight
Free Shipping
*This product qualifies for Free Shipping anywhere in the contiguous US. Accessories may ship separately. Items over 100lbs shipped via semi-truck, be sure to select "Lift Gate" to lower the product to the ground curbside. Remote area surcharges may apply, see our full shipping policy for more details.
Factory-Direct
Ships in 4-6 Weeks

Free Shipping$2,719.99Buy Now
Free Freight$2,719.99Visit Site
PowerTek 20-Ton Horizontal Gas Log Splitter w/ Honda 160cc Engine
PowerTek 20-Ton Horizontal Gas Log Splitter w/ Honda 160cc Engine
Model: 516-H
$2,719.99
Accessories
Features
Specifications
Reviews
Product Q&A
How-To Articles
Manuals
Share

Recommended Accessories

Power Equipment Direct expert image
Expert Recommended Accessories Selected by Dale, our Expert
Required Accessories 9
These accessories are required to properly setup/install this product.
Optional Accessories 10

Features

Force

20 Tons

Style

Gas

Type

Horizontal

Log Length

26 Inches

  • Powerful 5.5 HP Honda GX160 Engine
  • Starts easily, runs quietly
  • Powerful 2 Stage Hydraulic Pump
  • 20 tons of splitting force; 3000 PSI maximum pressure
  • Handles logs up to 26 inches long
  • Rapid 13 Second Cycle Time
  • 4" x 1.75" lets you split more wood faster
  • 7" Angled Splitting Wedge
  • 7° back-cut keeps the log in place on the beam
  • Rigid Horizontal Frame
  • Tow over the road at speeds up to 45 MPH
  • Split wood at a comfortable 29 inch height
  • Check your local laws for registration & lighting requirements

Specifications

516-H
specs product image PID-7480
General Information
Product Category
Log Splitter
Engine
Engine Brand
Honda GX
Starting System
Recoil Start
HP
5.5 HP
Hydraulics
Auto Return
Yes
Hydraulic Oil Included
Yes
Max Pump PSI
3000 PSI
Cylinder Diameter
4 Inches
Cylinder Length
24 Inches
Cycle Time
13 Seconds
Tonnage
20 Tons
Overview
Product Category
Log Splitter
Assembly Required
Yes
Weight
400 Pounds
Consumer Warranty
1 Year
Product Length
21 Inches
Product Width
68.5 Inches
Product Height
28.2 Inches
Power Type
Gas
Wedge
Wedge Size
7 Inches
Wedge Style
2-way
Sharpenable Wedge
Yes
Log Capacity
Max Log Length
26 Inches
Towing
Towable
Yes
D.O.T. Lights
No
Fenders
No
Hitch Type
2 Inch Ball Hitch
Max Towing Speed
45 MPH
Accessories
Jack Stands
Included
Log Cradles
No

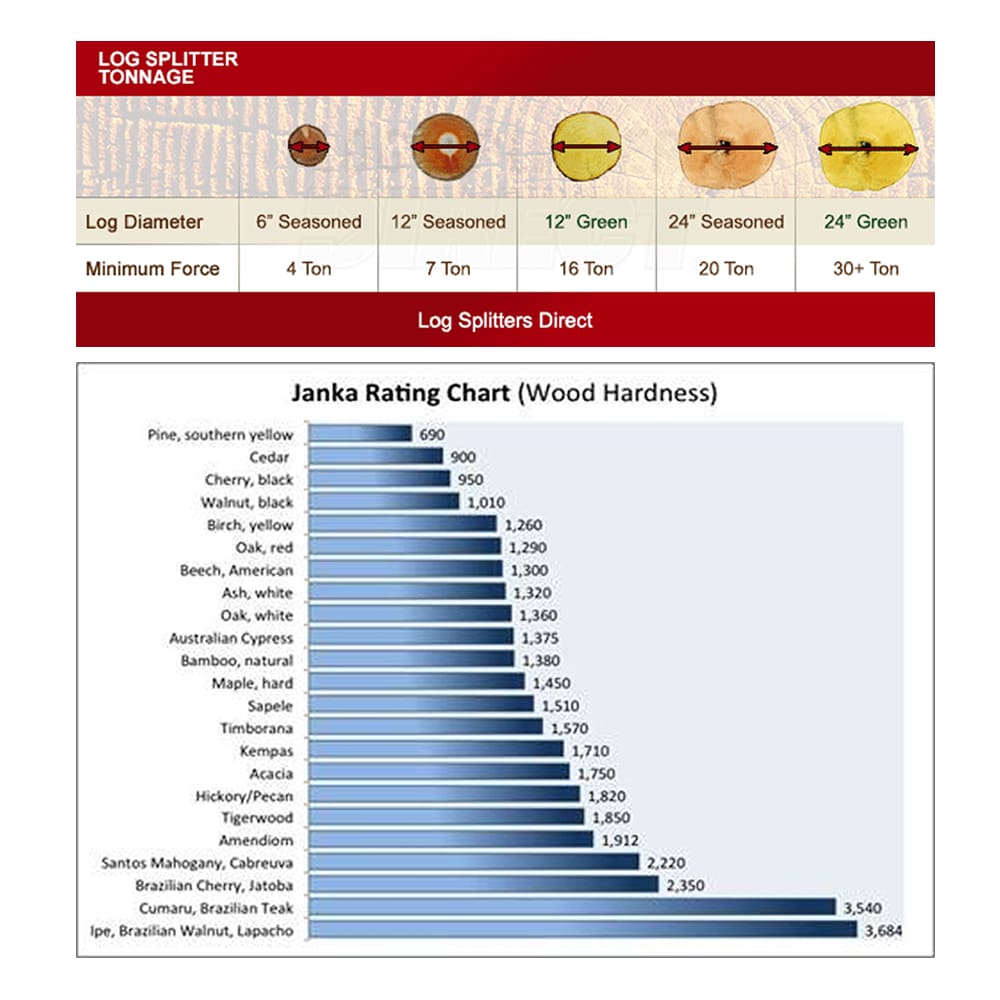

Wood Type Hardness Rating 6" Seasoned 6" Green 12" Seasoned 12" Green 24" Seasoned 24" Green
Alder 590 Lbs. 4+ Tons 6+ Tons 7+ Tons 9+ Tons 27+ Tons 30+ Tons
Ash 1320 Lbs. 7+ Tons 9+ Tons 16+ Tons 22+ Tons 30+ Tons 35+ Tons
Aspen 420 Lbs. 4+ Tons 6+ Tons 7+ Tons 9+ Tons 27+ Tons 30+ Tons
Basswood 410 Lbs. 4+ Tons 6+ Tons 7+ Tons 9+ Tons 27+ Tons 30+ Tons
Beech 1300 Lbs. 7+ Tons 9+ Tons 16+ Tons 22+ Tons 30+ Tons 35+ Tons
Birch 1470 Lbs. 7+ Tons 9+ Tons 16+ Tons 22+ Tons 30+ Tons 35+ Tons
Boxelder 720 Lbs. 6+ Tons 8+ Tons 10+ Tons 13+ Tons 27+ Tons 30+ Tons
Buckeye 350 Lbs. 4+ Tons 6+ Tons 7+ Tons 9+ Tons 27+ Tons 30+ Tons
Catalpa 550 Lbs. 4+ Tons 6+ Tons 7+ Tons 9+ Tons 27+ Tons 30+ Tons
Cedar 900 Lbs. 6+ Tons 8+ Tons 15+ Tons 20+ Tons 27+ Tons 30+ Tons
Cherry 950 Lbs. 6+ Tons 8+ Tons 15+ Tons 20+ Tons 27+ Tons 30+ Tons
Cottonwood 430 Lbs. 4+ Tons 6+ Tons 7+ Tons 9+ Tons 27+ Tons 30+ Tons
Dogwood 2150 Lbs. 10+ Tons 13+ Tons 22+ Tons 27+ Tons 30+ Tons 35+ Tons
Elm 1540 Lbs. 10+ Tons 13+ Tons 16+ Tons 22+ Tons 30+ Tons 35+ Tons
Fir 710 Lbs. 6+ Tons 8+ Tons 10+ Tons 13+ Tons 27+ Tons 30+ Tons
Hickory 1820 Lbs. 10+ Tons 13+ Tons 22+ Tons 27+ Tons 30+ Tons 35+ Tons
Locust 1700 Lbs. 10+ Tons 13+ Tons 22+ Tons 27+ Tons 30+ Tons 35+ Tons
Magnolia 1020 Lbs. 7+ Tons 9+ Tons 16+ Tons 22+ Tons 30+ Tons 35+ Tons
Maple 1450 Lbs. 7+ Tons 9+ Tons 16+ Tons 22+ Tons 30+ Tons 35+ Tons
Oak 1620 Lbs. 10+ Tons 13+ Tons 22+ Tons 27+ Tons 30+ Tons 35+ Tons
Pine 860 Lbs. 6+ Tons 8+ Tons 10+ Tons 13+ Tons 27+ Tons 30+ Tons
Poplar 540 Lbs. 4+ Tons 6+ Tons 7+ Tons 9+ Tons 27+ Tons 30+ Tons
Spruce 510 Lbs. 4+ Tons 6+ Tons 7+ Tons 9+ Tons 27+ Tons 30+ Tons
Sweet Gum 850 Lbs. 6+ Tons 8+ Tons 10+ Tons 13+ Tons 27+ Tons 30+ Tons
Walnut 1010 Lbs. 7+ Tons 9+ Tons 16+ Tons 22+ Tons 30+ Tons 35+ Tons
