PowerKing 22-Ton Horizontal Kinetic ABS Log Splitter w/ Kohler 177cc Engine & All-Weather Cover
Model:
PK0322K
+
Share This Product
Recommended Accessories
Expert Recommended Accessories
Selected by Dale, our Expert
Required Accessories
9
These accessories are required to properly setup/install this product.
Optional Accessories
10
Features
Force
22 Tons
Style
Gas
Type
Horizontal
Log Length
20.5 Inches

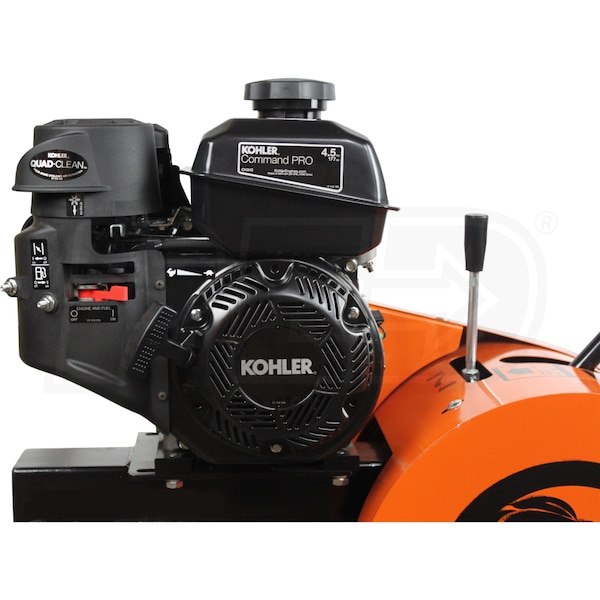

- Dependable Kohler Command Pro CH245 4.5HP 4-Cycle OHV Engine
- Designed to weather the toughest, dirtiest conditions
- Steel-forged crankshaft and cast iron cylinder extends engine life
- Quad-Clean™ cyclonic air filter keeps harmful contaminants out
- Outsplit The Competition
- Faster than any other splitter
- Blistering ram speed and 3-second cycle time
- Those precious seconds quickly add up when splitting cord after cord
- Low Maintenance
- Don't worry about maintaining any leaky hoses, pumps, or valves
- No more time or money wasted on sustaining the hydraulic fluid
- Auto Braking System (ABS)
- Shuts down and restarts the system in the event of an overload
- Prolongs the splitter's life and effectiveness of components over time
- Highly Capable
- Split any type of log up to 20.5" long and 15.7" in diameter
- Foldable Front Stand & Tow Bar
- Creates convenient work space for splitting logs off the table
- Supports any 2" ball easy towing around the yard
- Large Area Work Table Standard
- Helps you handle big logs
- Keeps you from having to bend over to pick up split wood

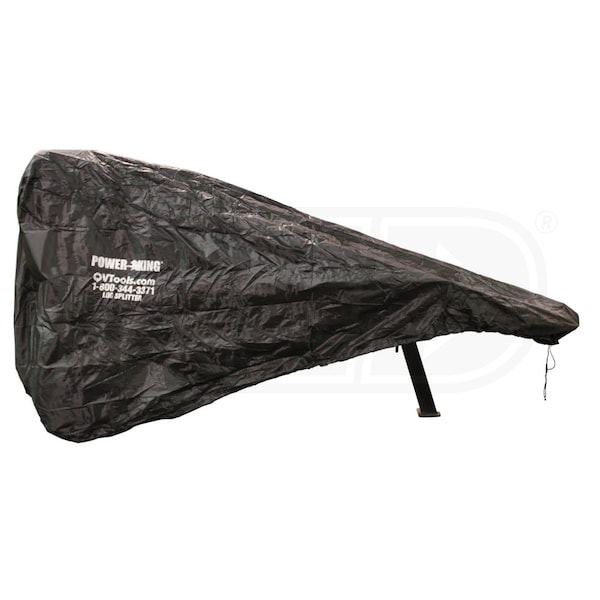

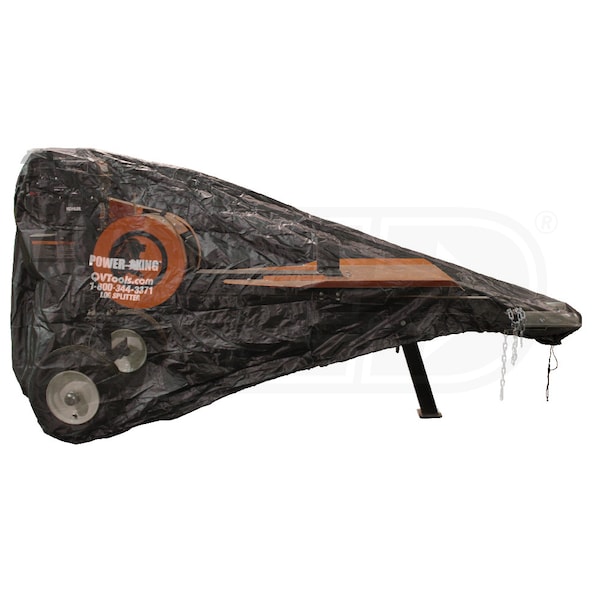

- Includes All-Weather Cover w/ Zippered Storage Pouch
- Water and UV/UVB resistant
- Protects against rain, dust, snow, dirt and sun damage
- 1-Year Warranty & 3-Year Engine Warranty
California residents see
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
For more information go to: www.p65Warnings.ca.gov
Specifications
PK0322K
General Information
Product Category
Log Splitter
Engine
Engine Brand
Kohler Command
Starting System
Recoil Start
Engine Cycle
4-Cycle
HP
4.5 HP
CC
177 CCs
Fuel Tank Size
.16 Gallons
Torque
9.8 Lbs
Consumer Engine Warranty
3 Years
Commercial Engine Warranty
3 Years
Hydraulics
Auto Return
Yes
Hydraulic Filter
No
Cycle Time
3 Seconds
Tonnage
22 Tons
Overview
Product Category
Log Splitter
Product Length
97 Inches
Product Width
31 Inches
Product Height
48 Inches
UPC
037229991512
Wedge
Wedge Material
Steel
Wedge Size
6 Inches
Wedge Style
2-way
Replaceable Wedge
No
Sharpenable Wedge
No
Log Capacity
Max Log Length
20.5 Inches
Max Log Diameter
15.7 Inches
Towing
Towable
Yes
D.O.T. Lights
No
Fenders
No
Hitch Type
2 Inch Ball Hitch
| Wood Type | Hardness Rating | 6" Seasoned | 6" Green | 12" Seasoned | 12" Green | 24" Seasoned | 24" Green |
|---|---|---|---|---|---|---|---|
| Alder | 590 Lbs. | 4+ Tons | 6+ Tons | 7+ Tons | 9+ Tons | 27+ Tons | 30+ Tons |
| Ash | 1320 Lbs. | 7+ Tons | 9+ Tons | 16+ Tons | 22+ Tons | 30+ Tons | 35+ Tons |
| Aspen | 420 Lbs. | 4+ Tons | 6+ Tons | 7+ Tons | 9+ Tons | 27+ Tons | 30+ Tons |
| Basswood | 410 Lbs. | 4+ Tons | 6+ Tons | 7+ Tons | 9+ Tons | 27+ Tons | 30+ Tons |
| Beech | 1300 Lbs. | 7+ Tons | 9+ Tons | 16+ Tons | 22+ Tons | 30+ Tons | 35+ Tons |
| Birch | 1470 Lbs. | 7+ Tons | 9+ Tons | 16+ Tons | 22+ Tons | 30+ Tons | 35+ Tons |
| Boxelder | 720 Lbs. | 6+ Tons | 8+ Tons | 10+ Tons | 13+ Tons | 27+ Tons | 30+ Tons |
| Buckeye | 350 Lbs. | 4+ Tons | 6+ Tons | 7+ Tons | 9+ Tons | 27+ Tons | 30+ Tons |
| Catalpa | 550 Lbs. | 4+ Tons | 6+ Tons | 7+ Tons | 9+ Tons | 27+ Tons | 30+ Tons |
| Cedar | 900 Lbs. | 6+ Tons | 8+ Tons | 15+ Tons | 20+ Tons | 27+ Tons | 30+ Tons |
| Cherry | 950 Lbs. | 6+ Tons | 8+ Tons | 15+ Tons | 20+ Tons | 27+ Tons | 30+ Tons |
| Cottonwood | 430 Lbs. | 4+ Tons | 6+ Tons | 7+ Tons | 9+ Tons | 27+ Tons | 30+ Tons |
| Dogwood | 2150 Lbs. | 10+ Tons | 13+ Tons | 22+ Tons | 27+ Tons | 30+ Tons | 35+ Tons |
| Elm | 1540 Lbs. | 10+ Tons | 13+ Tons | 16+ Tons | 22+ Tons | 30+ Tons | 35+ Tons |
| Fir | 710 Lbs. | 6+ Tons | 8+ Tons | 10+ Tons | 13+ Tons | 27+ Tons | 30+ Tons |
| Hickory | 1820 Lbs. | 10+ Tons | 13+ Tons | 22+ Tons | 27+ Tons | 30+ Tons | 35+ Tons |
| Locust | 1700 Lbs. | 10+ Tons | 13+ Tons | 22+ Tons | 27+ Tons | 30+ Tons | 35+ Tons |
| Magnolia | 1020 Lbs. | 7+ Tons | 9+ Tons | 16+ Tons | 22+ Tons | 30+ Tons | 35+ Tons |
| Maple | 1450 Lbs. | 7+ Tons | 9+ Tons | 16+ Tons | 22+ Tons | 30+ Tons | 35+ Tons |
| Oak | 1620 Lbs. | 10+ Tons | 13+ Tons | 22+ Tons | 27+ Tons | 30+ Tons | 35+ Tons |
| Pine | 860 Lbs. | 6+ Tons | 8+ Tons | 10+ Tons | 13+ Tons | 27+ Tons | 30+ Tons |
| Poplar | 540 Lbs. | 4+ Tons | 6+ Tons | 7+ Tons | 9+ Tons | 27+ Tons | 30+ Tons |
| Spruce | 510 Lbs. | 4+ Tons | 6+ Tons | 7+ Tons | 9+ Tons | 27+ Tons | 30+ Tons |
| Sweet Gum | 850 Lbs. | 6+ Tons | 8+ Tons | 10+ Tons | 13+ Tons | 27+ Tons | 30+ Tons |
| Walnut | 1010 Lbs. | 7+ Tons | 9+ Tons | 16+ Tons | 22+ Tons | 30+ Tons | 35+ Tons |
