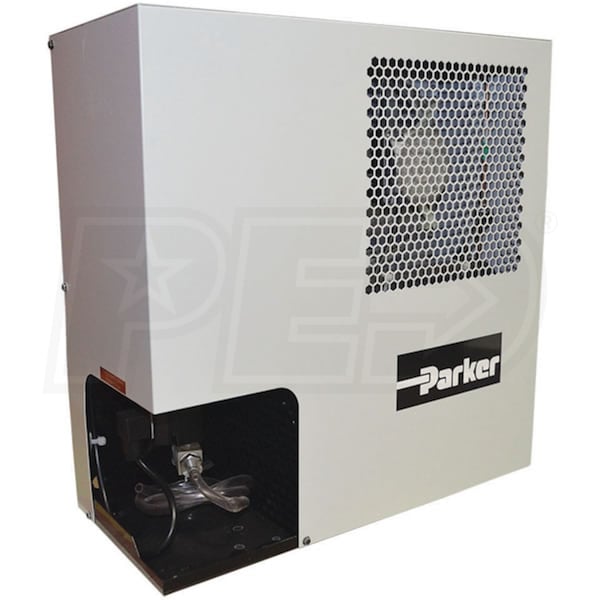

Parker PRD Non-Cycling Refrigerated Air Dryer 3HP (10 CFM)

Model:

PRD10-A11516016FLU

Write A Review
Product Discontinued
Sorry, this product is no longer available.
Try this product instead
Parker PRD Non-Cycling Refrigerated Air Dryer 3HP (10 CFM)
Parker PRD Non-Cycling Refrigerated Air Dryer 3HP (10 CFM)
Model: PRD10-A11516016FLU
Product Discontinued
Accessories
Features
Specifications
Reviews
How-To Articles
Manuals
Share

Recommended Accessories

Power Equipment Direct expert image
Expert Recommended Accessories Selected by Melissa, our Expert
Required Accessories 9
These accessories are required to properly setup/install this product.
Optional Accessories 10

Features

Style

Refrigerated

Air Dryer CFM

10
  • Plug-And-Play Design
  • Easy installation for extremely compact spaces
  • Robust Timed Solenoid Drain
  • Easy maintenance and improved reliability
  • Unique 3-in-1 Heat Exchanger
  • Increases efficiency while reducing pressure drop for significant cost savings
  • Low pressure differential across dryer (1.45 psi average)
  • Oversized Demister Separator
  • Provides excellent liquid removal over all operating conditions
  • Oversized Condenser
  • Operates in ambients up to 122°F (50°C)
  • Fan cycling ensures stable operation
  • Dewpoint Indicator
  • Helps monitor moisture in the system
  • Environmentally Friendly, ETL Certified
  • R134a refrigerants allow for zero ozone depletion
  • No Interior Interconnected Tubing
  • Flow path designed to optimize performance
  • 1/2" NPTF connections; requires 115V 1-phase power
  • 50 PSI minimum operating pressure; 232 PSI maximum
California residents see
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
For more information go to: www.p65Warnings.ca.gov

Specifications

PRD10-A11516016FLU
specs product image PID-57955
Engine
HP
3
Air Dryer
Air Dryer CFM Learn More
Air Dryer CFM
All compressed air dryers have a maximum drying capacity expressed in Cubic Feet Per Minute (CFM)
10
Max Inlet Temp. Rating Learn More
Max Inlet Temp. Rating
The highest temperature the compressed air can be passing through the dryer for the dryer to operate properly and effectively
149
Max Ambient Temp. Rating Learn More
Max Ambient Temp. Rating
Ambient temperature is the air temperature of any object or environment where equipment is stored
122
Non-Cycling Learn More
Non-Cycling
Non-cycling refrigerated air dryers have refrigeration compressors that start as soon as you turn the dryer on ― and don't stop until you turn the dryer off. They are less expensive than cycling dryers and are a good choice for applications where they will constantly run at full capacity
Yes
Inlet Fittings
1/2"
Outlet Fittings
1/2"
Auto Drain Learn More
Auto Drain
Auto drain or drip leg drain used to drain air line of condensate and water
Yes
Overview
Weight
42 Pounds
Consumer Warranty
1 Year
Commercial Warranty
1 Year
Product Length
16.9 Inches
Product Width
17.7 Inches
Product Height
8.3 Inches
Additional Model Numbers

PRD10, PRD10-A11516016FLU
