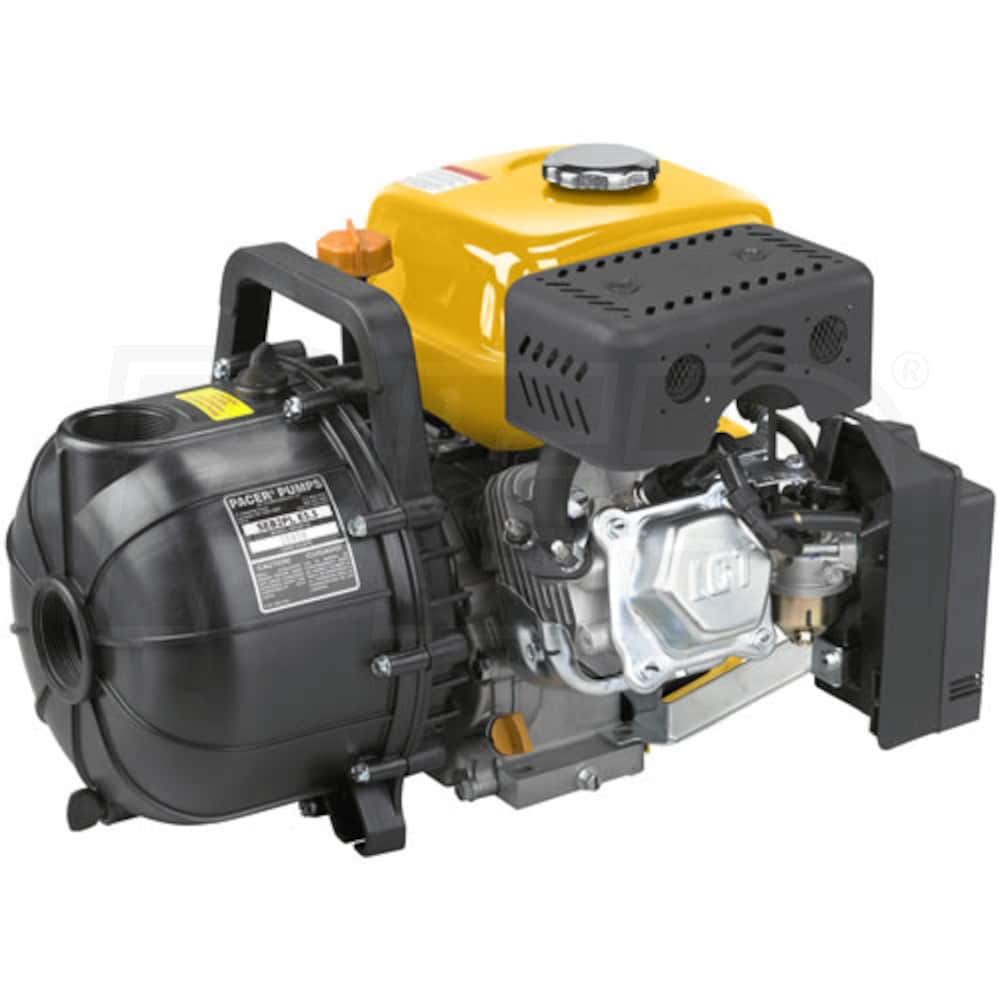

Pacer SEB2PLE5.5 - 160 GPM (2") Econo-Ag Water Pump

Pacer SEB2PLE5.5 - 160 GPM (2") Econo-Ag Water Pump
Model: PAC160
$259.99
Factory-Direct
Ships in 2-5 Business Days
Factory items ship direct from the manufacturer.
Shipping times vary.
Free Shipping
Free ShippingNo Sales Tax* (Except IL)$259.99Buy Now
Free ShippingNo Sales Tax* (Except IL)$259.99Visit Site
Factory-Direct
Ships in 2-5 Business Days
Free Shipping
Free Shipping
*We currently CANNOT ship this product to Canada or any destination outside of the United States
Share
  • Product Description
  • 5
    Reviews
  • 1
    Product Q&A
  • Recommended Accessories
  • How-To Articles
  • Manuals
Product Description
+

Inlet Size
2"
Style
Dewatering Pumps
GPM
160
Gallons
Engine
Inlet Size
2"
Style
Dewatering
GPM
160 Gallons
Engine
LCT


Product Video Disclaimer: "PED is not responsible for any variances from the product in this video and the item you purchase. Please review all product specs prior to purchase."

Features
Features
  • Econo-Ag 2" Multi-Purpose Pump
  • Designed for agricultural, transfer & dewatering applications
  • 6 HP LCT MAXX Series OHV Engine
  • Cast-Iron cylinder sleeve & low oil shutoff for added protection
  • Glass-Reinforced Polyester Housing, Volute & Impeller
  • The original corrosion-resistant design
  • For use w/ water, salt water, waste water, mild acids & bases
  • Pacer's # 704 Impeller
  • Ensures the performance you've come to expect
  • 52 PSI Max Pressure Shutoff
  • Provides increased pumping distances
  • Standard EPDM Elastomers (O-Rings & Gasket)
  • Compatible with many agricultural chemicals
  • EPDM Fitted Stainless Steel Shaft Seal w/ Carbon-Ceramic Faces
  • Extends the useful life of the pump
  • Internal Stainless Steel & External Plated Steel Fasteners
  • High quality components that are built to last
Specifications
Pump
Gallons Per Minute
160 Gallons
Inlet Diameter
2"
Outlet Diameter
2"
Self Priming
Yes
Pump Head Material
Glass-Reinforced Polyester
Pump Housing Drain
Yes
Quick Clean Out
No
Mechanical Seal Material
Ceramic Carbon
Impeller Material
Plastic
Handles Solids
No
Suction Head
25 Feet
Total Head Lift
120 Feet
Maximum PSI
52
Submersible
No
Engine
Engine Brand
LCT
Starting System
Recoil Start
Engine Cycles
4-Cycle
Low Oil Shutdown
Yes
Continuous Operation
Yes
Horsepower
6 hp
Fuel Tank Size
0.75 Gallons
Consumer Engine Warranty
1 Year
Accessories
Strainer
Sold Separately
Float Switch
No
Hose
Sold Separately
Hose Couplings
No
Hose Bands
No
Lifting Hook
No
Transport Handle
Yes
Wheel Kit
No
Overview
Weight
50 Pounds
Consumer Warranty
1 Year

Inlet Size
2"
Style
Dewatering Pumps
GPM
160
Gallons
Engine
Inlet Size
2"
Style
Dewatering
GPM
160 Gallons
Engine
LCT


Product Video Disclaimer: "PED is not responsible for any variances from the product in this video and the item you purchase. Please review all product specs prior to purchase."

Features
Features
  • Econo-Ag 2" Multi-Purpose Pump
  • Designed for agricultural, transfer & dewatering applications
  • 6 HP LCT MAXX Series OHV Engine
  • Cast-Iron cylinder sleeve & low oil shutoff for added protection
  • Glass-Reinforced Polyester Housing, Volute & Impeller
  • The original corrosion-resistant design
  • For use w/ water, salt water, waste water, mild acids & bases
  • Pacer's # 704 Impeller
  • Ensures the performance you've come to expect
  • 52 PSI Max Pressure Shutoff
  • Provides increased pumping distances
  • Standard EPDM Elastomers (O-Rings & Gasket)
  • Compatible with many agricultural chemicals
  • EPDM Fitted Stainless Steel Shaft Seal w/ Carbon-Ceramic Faces
  • Extends the useful life of the pump
  • Internal Stainless Steel & External Plated Steel Fasteners
  • High quality components that are built to last
Specifications
Pump
Gallons Per Minute
160 Gallons
Inlet Diameter
2"
Outlet Diameter
2"
Self Priming
Yes
Pump Head Material
Glass-Reinforced Polyester
Pump Housing Drain
Yes
Quick Clean Out
No
Mechanical Seal Material
Ceramic Carbon
Impeller Material
Plastic
Handles Solids
No
Suction Head
25 Feet
Total Head Lift
120 Feet
Maximum PSI
52
Submersible
No
Engine
Engine Brand
LCT
Starting System
Recoil Start
Engine Cycles
4-Cycle
Low Oil Shutdown
Yes
Continuous Operation
Yes
Horsepower
6 hp
Fuel Tank Size
0.75 Gallons
Consumer Engine Warranty
1 Year
Accessories
Strainer
Sold Separately
Float Switch
No
Hose
Sold Separately
Hose Couplings
No
Hose Bands
No
Lifting Hook
No
Transport Handle
Yes
Wheel Kit
No
Overview
Weight
50 Pounds
Consumer Warranty
1 Year
Product Specs
+
Specifications
Pump
Gallons Per Minute
160 Gallons
Inlet Diameter
2"
Outlet Diameter
2"
Self Priming
Yes
Pump Head Material
Glass-Reinforced Polyester
Pump Housing Drain
Yes
Quick Clean Out
No
Mechanical Seal Material
Ceramic Carbon
Impeller Material
Plastic
Handles Solids
No
Suction Head
25 Feet
Total Head Lift
120 Feet
Maximum PSI
52
Submersible
No
Engine
Engine Brand
LCT
Starting System
Recoil Start
Engine Cycles
4-Cycle
Low Oil Shutdown
Yes
Continuous Operation
Yes
Horsepower
6 hp
Fuel Tank Size
0.75 Gallons
Consumer Engine Warranty
1 Year
Accessories
Strainer
Sold Separately
Float Switch
No
Hose
Sold Separately
Hose Couplings
No
Hose Bands
No
Lifting Hook
No
Transport Handle
Yes
Wheel Kit
No
Overview
Weight
50 Pounds
Consumer Warranty
1 Year
Reviews
(5)
+
Pacer PAC160 Reviews & Ratings
Product Q&A
(1)
+
Search Product Q&A's Answered by Jim, the Water Pump Expert
icon-social-fb1
+
Hi Jim Is it okay to have the input 2 inch in and reduce the output to a 1 1/2? that would probably increase the PSI a little bit more too, right? or do I have to match both input and output with the same size hose? Thank you.
Marc D
from Minnesota
January 22, 2014
Answer
It is always recommended that you use the same diameter hose/piping as the suction and discharge ports on the pump. While it is sometimes necessary to reduce that diameter, it is NOT recommended that you do so by more than one size. In this case, 1-1/2" hose or piping would be the maximum reduction, While you may see an increased pressure due to the reduced piping, the pump will also see an increased backpressure on the pump. The more you reduce the hose/piping diameter, the more you increase this backpressure AND increase premature pump failure that would NOT be covered under warranty.
