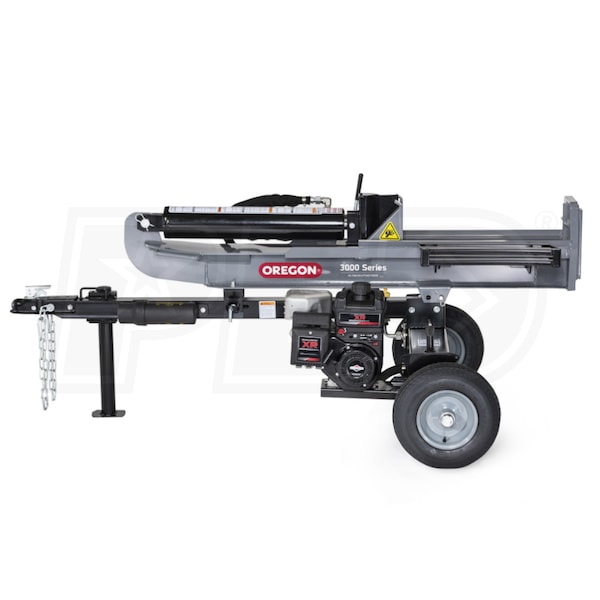

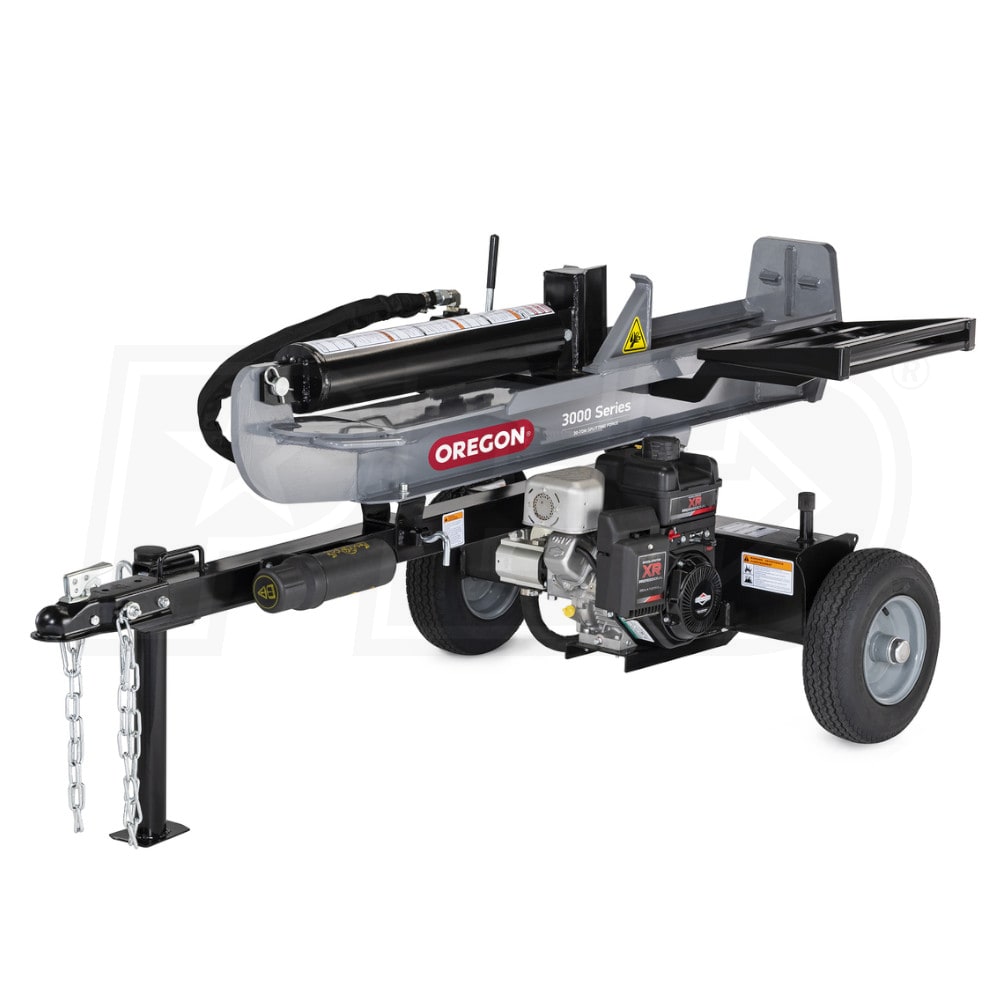

Oregon 30-Ton Horizontal / Vertical Gas Log Splitter w/ Briggs & Stratton 250cc Engine
Model:
OR30TBS-1
+
Share This Product
Recommended Accessories
Expert Recommended Accessories
Selected by Dale, our Expert
Required Accessories
9
These accessories are required to properly setup/install this product.
Optional Accessories
10
Features
Force
30 Tons
Style
Gas
Type
Vertical / Horizontal
Log Length
25.5 Inches
- 30-Ton Splitting Force
- Dependable splitting force for logs up to 25.5" long
- High strength H-beam with robotically welded stripper plates
- 250cc Briggs & Stratton XR1150 OHV Engine
- Commercial grade, Lo-Tone muffler and higher torque
- Ensures maintenance-free, easy starting in hot or cold state

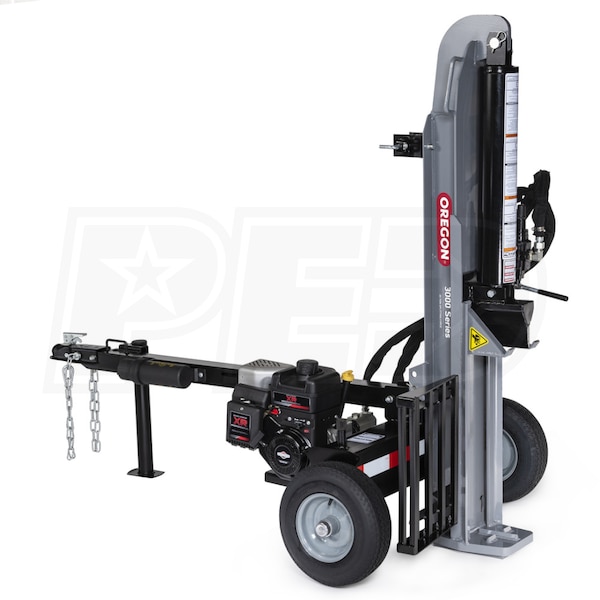

- Vertical & Horizontal Splitting

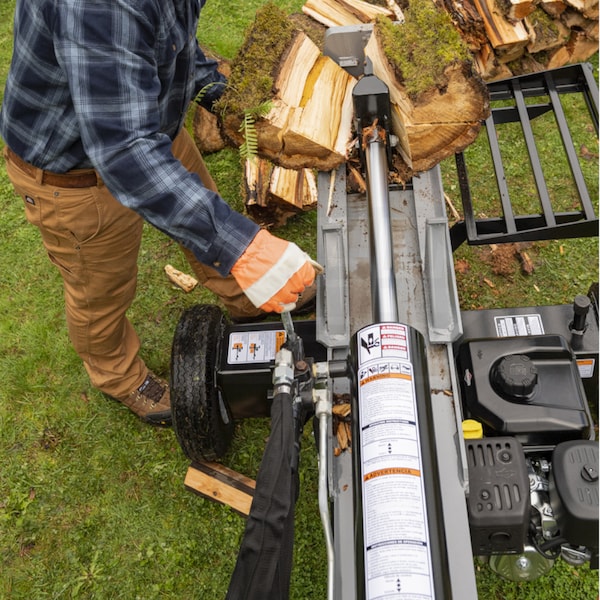

- Horizontal: Split smaller logs at comfortable waist height
- Vertical: Roll larger and heavier logs into place for cutting
- Easily position beam with the quick release spring-loaded hinge
- 2-Stage, 14 GPM Hydraulic Pump
- Productive 12.9 second cycle time with auto-return
- 6-gallon hydraulic system - hydraulic fluid NOT included
- Tow-Capable w/ 16" Pneumatic Tires
- Highway towable up to 45 mph
- Safety chains and 2" ball coupler included for safe towing
- Log Catcher & Welded 8" Wedge Included
- One-sided cradle catches split logs for easier stacking
- Optimal knife-edge and separator wedge for efficient splitting
- 2-Year Limited Manufacturer Warranty
- Covers defects in materials and workmanship
- Motor oil, hydraulic oil, and standard 2" diameter ball hitch NOT included
California residents see
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
For more information go to: www.p65Warnings.ca.gov
Specifications
OR30TBS-1
General Information
Product Category
Log Splitter
Engine
Engine Brand
Briggs & Stratton
Starting System
Recoil Start
Engine Cycle
4-Cycle
CC
250 CCs
Fuel Tank Size
0.8 Gallons
Engine Cylinders
1 Cylinder
Torque
11.5 Lbs
Idle Control
No
Low Oil Shutdown
No
Consumer Engine Warranty
2 Years
Commercial Engine Warranty
2 Years
Hydraulics
Auto Return
Yes
Hydraulic Filter
Yes
Hydraulic Oil Included
No
Hydraulic Reservoir Size
6 Gallons
Max Pump PSI
4161 PSI
Cylinder Diameter
4.5 Inches
Cylinder Length
24 Inches
Cycle Time
12.9 Seconds
Tonnage
30 Tons
Dual Action
No
Overview
Product Category
Log Splitter
Weight
500 Pounds
Consumer Warranty
2 Years
Product Length
71 Inches
Product Width
48.4 Inches
Product Height
30.5 Inches
Power Type
Gas
UPC
87196727331
Wedge
Wedge Material
Cast Steel
Wedge Size
8 Inches
Wedge Style
2-way
Replaceable Wedge
Yes
Sharpenable Wedge
Yes
Log Capacity
Max Log Length
25.5 Inches
Towing
Towable
Yes
D.O.T. Lights
No
Fenders
No
Hitch Type
2 Inch Ball Hitch
Max Towing Speed
45 MPH
Accessories
Jack Stands
Included
Log Cradles
Included
Wheels
Rear Tire Size
4.5 x 16 Inch
Tire Type
Pneumatic Wheels
| Wood Type | Hardness Rating | 6" Seasoned | 6" Green | 12" Seasoned | 12" Green | 24" Seasoned | 24" Green |
|---|---|---|---|---|---|---|---|
| Alder | 590 Lbs. | 4+ Tons | 6+ Tons | 7+ Tons | 9+ Tons | 27+ Tons | 30+ Tons |
| Ash | 1320 Lbs. | 7+ Tons | 9+ Tons | 16+ Tons | 22+ Tons | 30+ Tons | 35+ Tons |
| Aspen | 420 Lbs. | 4+ Tons | 6+ Tons | 7+ Tons | 9+ Tons | 27+ Tons | 30+ Tons |
| Basswood | 410 Lbs. | 4+ Tons | 6+ Tons | 7+ Tons | 9+ Tons | 27+ Tons | 30+ Tons |
| Beech | 1300 Lbs. | 7+ Tons | 9+ Tons | 16+ Tons | 22+ Tons | 30+ Tons | 35+ Tons |
| Birch | 1470 Lbs. | 7+ Tons | 9+ Tons | 16+ Tons | 22+ Tons | 30+ Tons | 35+ Tons |
| Boxelder | 720 Lbs. | 6+ Tons | 8+ Tons | 10+ Tons | 13+ Tons | 27+ Tons | 30+ Tons |
| Buckeye | 350 Lbs. | 4+ Tons | 6+ Tons | 7+ Tons | 9+ Tons | 27+ Tons | 30+ Tons |
| Catalpa | 550 Lbs. | 4+ Tons | 6+ Tons | 7+ Tons | 9+ Tons | 27+ Tons | 30+ Tons |
| Cedar | 900 Lbs. | 6+ Tons | 8+ Tons | 15+ Tons | 20+ Tons | 27+ Tons | 30+ Tons |
| Cherry | 950 Lbs. | 6+ Tons | 8+ Tons | 15+ Tons | 20+ Tons | 27+ Tons | 30+ Tons |
| Cottonwood | 430 Lbs. | 4+ Tons | 6+ Tons | 7+ Tons | 9+ Tons | 27+ Tons | 30+ Tons |
| Dogwood | 2150 Lbs. | 10+ Tons | 13+ Tons | 22+ Tons | 27+ Tons | 30+ Tons | 35+ Tons |
| Elm | 1540 Lbs. | 10+ Tons | 13+ Tons | 16+ Tons | 22+ Tons | 30+ Tons | 35+ Tons |
| Fir | 710 Lbs. | 6+ Tons | 8+ Tons | 10+ Tons | 13+ Tons | 27+ Tons | 30+ Tons |
| Hickory | 1820 Lbs. | 10+ Tons | 13+ Tons | 22+ Tons | 27+ Tons | 30+ Tons | 35+ Tons |
| Locust | 1700 Lbs. | 10+ Tons | 13+ Tons | 22+ Tons | 27+ Tons | 30+ Tons | 35+ Tons |
| Magnolia | 1020 Lbs. | 7+ Tons | 9+ Tons | 16+ Tons | 22+ Tons | 30+ Tons | 35+ Tons |
| Maple | 1450 Lbs. | 7+ Tons | 9+ Tons | 16+ Tons | 22+ Tons | 30+ Tons | 35+ Tons |
| Oak | 1620 Lbs. | 10+ Tons | 13+ Tons | 22+ Tons | 27+ Tons | 30+ Tons | 35+ Tons |
| Pine | 860 Lbs. | 6+ Tons | 8+ Tons | 10+ Tons | 13+ Tons | 27+ Tons | 30+ Tons |
| Poplar | 540 Lbs. | 4+ Tons | 6+ Tons | 7+ Tons | 9+ Tons | 27+ Tons | 30+ Tons |
| Spruce | 510 Lbs. | 4+ Tons | 6+ Tons | 7+ Tons | 9+ Tons | 27+ Tons | 30+ Tons |
| Sweet Gum | 850 Lbs. | 6+ Tons | 8+ Tons | 10+ Tons | 13+ Tons | 27+ Tons | 30+ Tons |
| Walnut | 1010 Lbs. | 7+ Tons | 9+ Tons | 16+ Tons | 22+ Tons | 30+ Tons | 35+ Tons |
