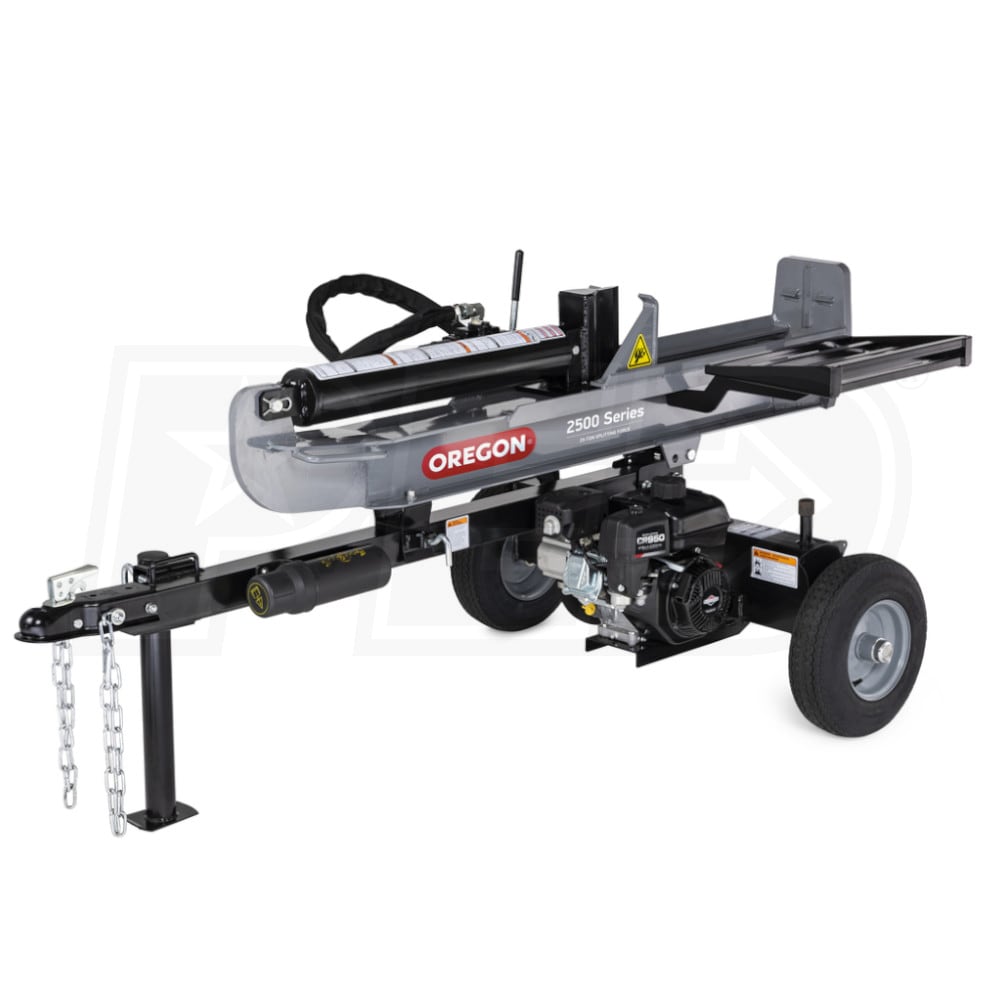

Oregon 25-Ton Horizontal / Vertical Gas Log Splitter w/ Briggs & Stratton 208cc Engine

Model:

OR25TBS-1

Write A Review
Product Discontinued
Sorry, this product is no longer available.
Oregon 25-Ton Horizontal / Vertical Gas Log Splitter w/ Briggs & Stratton 208cc Engine
Oregon 25-Ton Horizontal / Vertical Gas Log Splitter w/ Briggs & Stratton 208cc Engine
Model: OR25TBS-1
Product Discontinued
Features
Specifications
Reviews
How-To Articles
Manuals
Share

Features

Force

25 Tons

Style

Gas

Type

Vertical / Horizontal

Log Length

25.5 Inches

  • 25-Ton Splitting Force
  • Dependable splitting force for logs up to 25.5" long
  • High strength H-beam with robotically welded stripper plates
  • 208cc Briggs & Stratton CR950 OHV Engine
  • Ensures maintenance-free, easy starting
  • Lo-Tone muffler delivers low noise and good tonal quality

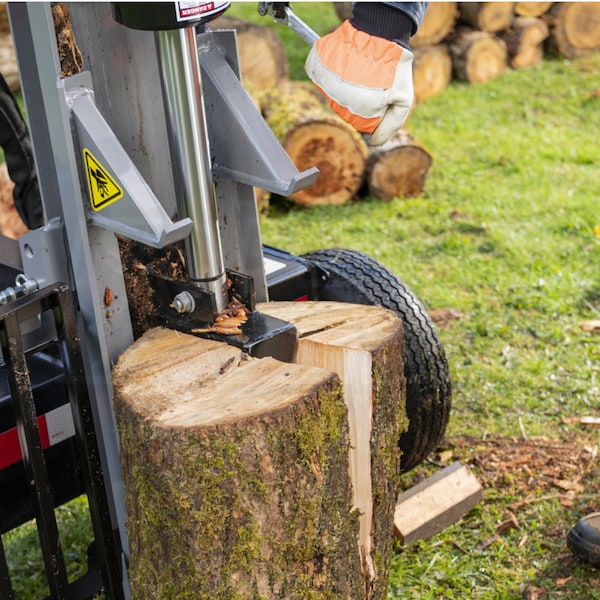

  • Vertical & Horizontal Splitting
  • Horizontal: Split smaller logs at comfortable waist height
  • Vertical: Roll larger and heavier logs into place for cutting
  • Easily position beam with the quick release spring-loaded hinge
  • 2-Stage, 14 GPM Hydraulic Pump
  • Productive 11.2 second cycle time with auto-return
  • 4.5-gallon hydraulic system - hydraulic fluid NOT included
  • Tow-Capable w/ 16" Pneumatic Tires
  • Highway towable up to 45 mph
  • Safety chains and 2" ball coupler included for safe towing
  • Log Catcher & Welded 8" Wedge Included
  • One-sided cradle catches split logs for easier stacking
  • Optimal knife-edge and separator wedge for efficient splitting
  • 2-Year Limited Manufacturer Warranty
  • Covers defects in materials and workmanship
  • Motor oil, hydraulic oil, and standard 2" diameter ball hitch NOT included
California residents see
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
For more information go to: www.p65Warnings.ca.gov

Specifications

OR25TBS-1
specs product image PID-116638
General Information
Product Category
Log Splitter
Engine
Engine Brand
Briggs & Stratton
Starting System
Recoil Start
Engine Cycle
4-Cycle
CC
208 CCs
Fuel Tank Size
0.8 Gallons
Engine Cylinders
1 Cylinder
Idle Control
No
Low Oil Shutdown
No
Consumer Engine Warranty
2 Years
Commercial Engine Warranty
90 Days
Hydraulics
Auto Return
Yes
Hydraulic Filter
Yes
Hydraulic Oil Included
No
Hydraulic Reservoir Size
4.5 Gallons
Max Pump PSI
4100 PSI
Cylinder Diameter
4 Inches
Cylinder Length
24 Inches
Cycle Time
11.2 Seconds
Tonnage
25 Tons
Dual Action
No
Overview
Product Category
Log Splitter
Weight
459 Pounds
Consumer Warranty
2 Years
Product Length
71 Inches
Product Width
48.4 Inches
Product Height
30.5 Inches
Power Type
Gas
UPC
87196727324
Wedge
Wedge Material
Cast Steel
Wedge Size
8 Inches
Wedge Style
2-way
Replaceable Wedge
Yes
Sharpenable Wedge
Yes
Log Capacity
Max Log Length
25.5 Inches
Towing
Towable
Yes
D.O.T. Lights
No
Fenders
No
Hitch Type
2 Inch Ball Hitch
Max Towing Speed
45 MPH
Accessories
Jack Stands
Included
Log Cradles
Included
Wheels
Rear Tire Size
4.5 x 16 Inch
Tire Type
Pneumatic Wheels
Wood Type Hardness Rating 6" Seasoned 6" Green 12" Seasoned 12" Green 24" Seasoned 24" Green
Alder 590 Lbs. 4+ Tons 6+ Tons 7+ Tons 9+ Tons 27+ Tons 30+ Tons
Ash 1320 Lbs. 7+ Tons 9+ Tons 16+ Tons 22+ Tons 30+ Tons 35+ Tons
Aspen 420 Lbs. 4+ Tons 6+ Tons 7+ Tons 9+ Tons 27+ Tons 30+ Tons
Basswood 410 Lbs. 4+ Tons 6+ Tons 7+ Tons 9+ Tons 27+ Tons 30+ Tons
Beech 1300 Lbs. 7+ Tons 9+ Tons 16+ Tons 22+ Tons 30+ Tons 35+ Tons
Birch 1470 Lbs. 7+ Tons 9+ Tons 16+ Tons 22+ Tons 30+ Tons 35+ Tons
Boxelder 720 Lbs. 6+ Tons 8+ Tons 10+ Tons 13+ Tons 27+ Tons 30+ Tons
Buckeye 350 Lbs. 4+ Tons 6+ Tons 7+ Tons 9+ Tons 27+ Tons 30+ Tons
Catalpa 550 Lbs. 4+ Tons 6+ Tons 7+ Tons 9+ Tons 27+ Tons 30+ Tons
Cedar 900 Lbs. 6+ Tons 8+ Tons 15+ Tons 20+ Tons 27+ Tons 30+ Tons
Cherry 950 Lbs. 6+ Tons 8+ Tons 15+ Tons 20+ Tons 27+ Tons 30+ Tons
Cottonwood 430 Lbs. 4+ Tons 6+ Tons 7+ Tons 9+ Tons 27+ Tons 30+ Tons
Dogwood 2150 Lbs. 10+ Tons 13+ Tons 22+ Tons 27+ Tons 30+ Tons 35+ Tons
Elm 1540 Lbs. 10+ Tons 13+ Tons 16+ Tons 22+ Tons 30+ Tons 35+ Tons
Fir 710 Lbs. 6+ Tons 8+ Tons 10+ Tons 13+ Tons 27+ Tons 30+ Tons
Hickory 1820 Lbs. 10+ Tons 13+ Tons 22+ Tons 27+ Tons 30+ Tons 35+ Tons
Locust 1700 Lbs. 10+ Tons 13+ Tons 22+ Tons 27+ Tons 30+ Tons 35+ Tons
Magnolia 1020 Lbs. 7+ Tons 9+ Tons 16+ Tons 22+ Tons 30+ Tons 35+ Tons
Maple 1450 Lbs. 7+ Tons 9+ Tons 16+ Tons 22+ Tons 30+ Tons 35+ Tons
Oak 1620 Lbs. 10+ Tons 13+ Tons 22+ Tons 27+ Tons 30+ Tons 35+ Tons
Pine 860 Lbs. 6+ Tons 8+ Tons 10+ Tons 13+ Tons 27+ Tons 30+ Tons
Poplar 540 Lbs. 4+ Tons 6+ Tons 7+ Tons 9+ Tons 27+ Tons 30+ Tons
Spruce 510 Lbs. 4+ Tons 6+ Tons 7+ Tons 9+ Tons 27+ Tons 30+ Tons
Sweet Gum 850 Lbs. 6+ Tons 8+ Tons 10+ Tons 13+ Tons 27+ Tons 30+ Tons
Walnut 1010 Lbs. 7+ Tons 9+ Tons 16+ Tons 22+ Tons 30+ Tons 35+ Tons
