Features
Grade
Contractor
Style
DC Compressors
CFM
8
Tank Size
10
- Designed for Commercial & Industrial Use
- Made for work trucks and tow trucks
- Runs On Your 12 Volt DC Vehicle Battery
- Unit arrives ready to connect to your battery
- XD 4000 100% Duty Cycle Pump
- Great for continued, extreme, & construction use
- Rated at 100% at 100 PSI at 70°
- Air Breather Assembly (ABA) provides clean intake air
- 10 Gallon Tank
- ASME coded tank is ready to bolt down
- Fan Cooled Motor & Compressor
- Units that run cooler can run longer & work harder
- Strong & Compact
- 2.2 HP motor pushes 8 CFM at 100 PSI
- Pulls 180 amps of current & 2160 watts at maximum load
- Measures 40" long x 10" wide x 24" high
- Maximum pressure is 200 PSI, 150 PSI maximum restart pressure
- Environmentally Friendly
- No noisy gas engine or nasty fumes- just a subdued whir
- No engine to maintain- doesn't need gas, filters, or spark plugs
California residents see
Warning: This product can expose you to chemicals including Antimony oxide (Antimony trioxide) which is known to the State of California to cause Cancer.
For more information go to: www.p65Warnings.ca.gov
Specifications
XDT10-4000-12
General Information
Product Category
Air Compressor - Portable
Motor
Voltage
12 Volt DC
Magnetic Starter
Magnetic Starter
The Magnetic Starter is the "thinking cap" for the motor of the air compressor. Magnetic starters are electromagnetically operated switches that provide a safe method for certain motors to be started under a large motor load.
No
Amp Draw
180 @ Max
Engine
HP
2.2
Pump
CFM
CFM
Cubic Feet Per Minute, which indicates the compressor's flow rate - or the amount of air that a compressor can produce at a given pressure level. Typically compressors that have higher CFM ratings are able to provide more air, which makes them ideal for larger applications
8
CFM Rated @
100 PSI
Pump Material
Aluminum
Max PSI
Max PSI
PSI, or Pounds Per Square Inch, measures the amount of pressure placed on a square inch of space. In compressor terms, PSI is the amount of force that an air compressor can deliver
200 PSI
Oil Sight Glass
Yes
Pump Type
Single-Stage
After Cooler
After Cooler
An aftercooler is a mechanical heat exchanger designed to remove the heat and moisture of compression from a compressed air stream so the air is cool and dry enough for use in air-operated equipment. A compressed air aftercooler has three primary functions: Cool the air discharged from the air compressor
No
Pump Drive
Direct Drive
Oil Type
Oil Lubricated
Tank
Tank Size
10 Gallons
Tank Outlet
3/4 Inch
Electronic Drain Valve
Electronic Drain Valve
The inexpensive and reliable electric drain valve (EDV) automatically removes condensate from your air system. It has an integral strainer to prevent clogging and saves time and money by eliminating the need for manual draining
No
Tank Orientation
Horizontal
Accessories
Pressure Gauge
Yes
Air Dryer
No
Air Filter
Yes
Overview
Product Category
Air Compressor - Portable
Weight
110 Pounds
Certification
ASME
Consumer Warranty
1 Year
Commercial Warranty
1 Year
Product Length
40 Inches
Product Width
10 Inches
Product Height
24 Inches
Reviews
(3)
Oasis Manufacturing XDT10-4000-12 Reviews & Ratings
Product Q&A
(1)
Product Questions
Answered by Joshua, the Air Compressor Expert
Can this be mounted inverted or on its side?
Clifford
from Texas
August 11, 2018
How-To Articles
Electric Generators Direct Contest
Thank you so much to everyone who entered the Powered For Anything Contest Give...
How to Pick the Perfect Portable Single-Stage Compressor
We’ve all heard that Rome wasn’t built in a day, but then again the Romans didn...
Power Equipment How-To Library
Articles, Tips and Buying Guides from Our Experts
Manuals
Ask A Question!
*Required Fields
+
Thank You For Submitting Your Question
Your submission has been sent successfully. Please give our experts up to two business days to respond.
Media Gallery

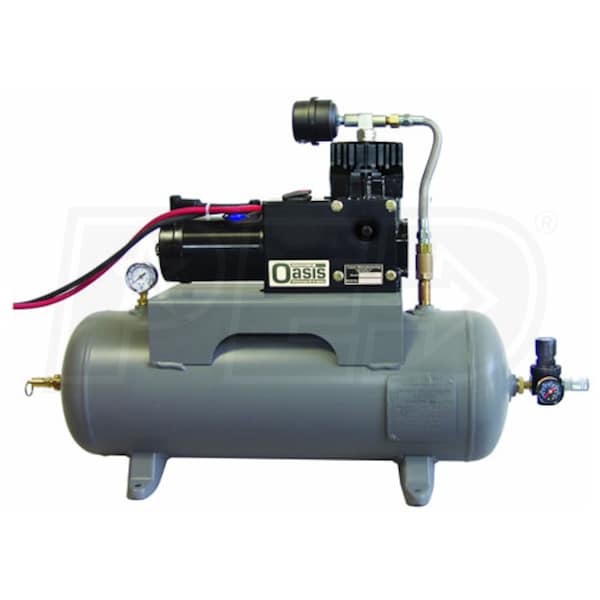

Oasis 10-Gallon 12-Volt Continuous Duty Air Compressor
