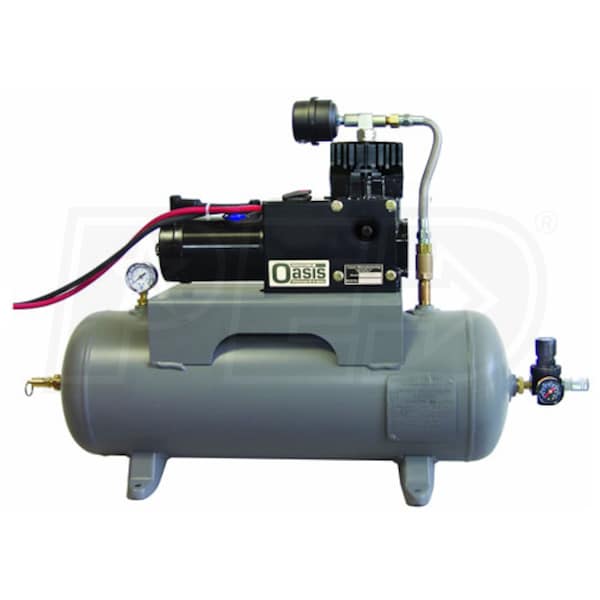

Oasis 10-Gallon 24-Volt Extended Duty Air Compressor

Model:

XDT10-3000-24

Write a Review
$2,549.00
Holiday Shipping Schedule
Holiday Schedule -
Free Shipping
  Learn More About Free Freight
Factory-Direct
This Item Is Built To Order

Free Shipping$2,549.00Buy Now
Free Freight$2,549.00Visit Site
Oasis 10-Gallon 24-Volt Extended Duty Air Compressor
Oasis 10-Gallon 24-Volt Extended Duty Air Compressor
Model: XDT10-3000-24
$2,549.00
Accessories
Features
Specifications
Reviews
How-To Articles
Manuals
Share

Recommended Accessories

Power Equipment Direct expert image
Expert Recommended Accessories Selected by Joshua, our Expert
Required Accessories 9
These accessories are required to properly setup/install this product.
Optional Accessories 10

Features

Grade

Contractor

Style

DC Compressors

CFM

8

Tank Size

10

  • Designed for Commercial & Industrial Use
  • Made for work trucks and tow trucks
  • Unit arrives ready to connect to your DC battery
  • XD 3000 Extended Duty Pump
  • Great for continued, extreme, & construction use
  • Air Breather Assembly (ABA) provides clean intake air
  • Rated 100% at 100 PSI at 70°
  • 10 Gallon Tank
  • ASME coded tank is ready to bolt down
  • Fan Cooled Motor & Compressor
  • Units that run cooler can run longer & work harder
  • Strong & Compact
  • 2.2 HP motor pushes 8 CFM at 100 PSI
  • Pulls 90 amps of current & 2160 watts at maximum load
  • Measures 40" long x 10" wide x 24" high
  • Maximum pressure is 200 PSI, 150 PSI maximum restart pressure
  • Environmentally Friendly
  • No exhaust fumes - DC electrical energy runs clean
  • No noisy gas engine- just a subdued whir
  • No engine to maintain- doesn't need gas, filters, or spark plugs
California residents see
Warning: This product can expose you to chemicals including Antimony oxide (Antimony trioxide) which is known to the State of California to cause Cancer.
For more information go to: www.p65Warnings.ca.gov

Specifications

XDT10-3000-24
specs product image PID-6803
Motor
Voltage
24 Volt DC
Magnetic Starter
No
Amp Draw
90 @ Max
Engine
HP
2.2
Pump
CFM
8
CFM Rated @
100 PSI
Pump Material
Aluminum
Max PSI
200 PSI
Oil Sight Glass
Yes
Pump Type
Single-Stage
After Cooler
No
Pump Drive
Direct Drive
Oil Type
Oil Lubricated
Tank
Tank Size
10 Gallons
Tank Outlet
3/8 Inch
Electronic Drain Valve
No
Tank Orientation
Horizontal
Accessories
Pressure Gauge
Yes
Air Dryer
No
Air Filter
Yes
Overview
Weight
107 Pounds
Certification
ASME
Consumer Warranty
1 Year
Commercial Warranty
1 Year
Product Length
40 Inches
Product Width
10 Inches
Product Height
24 Inches
