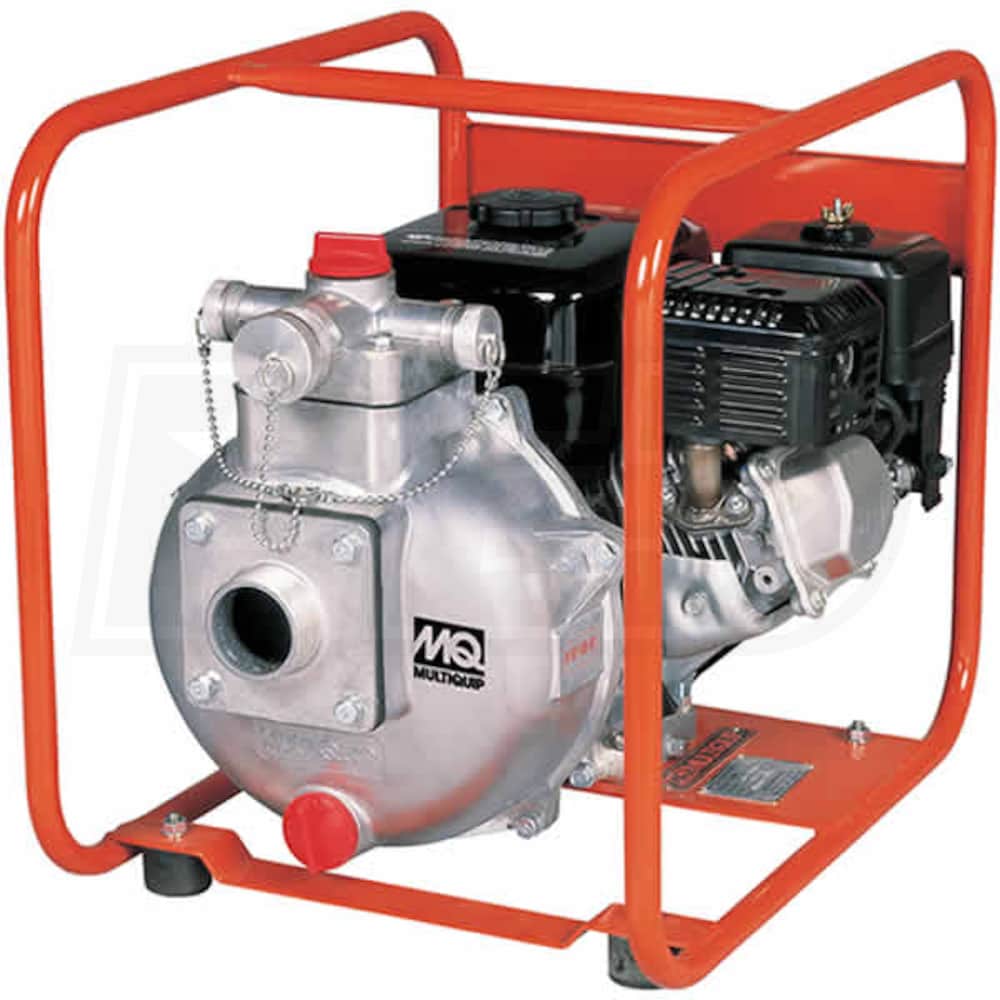

Multiquip QP205SH - 106 GPM (2") High Pressure Water Pump w/ Honda GX Engine
Model: QP205SH
+
Share This Product
-
Product Description
-
1Reviews
-
Product Q&A
-
Recommended Accessories
-
How-To Articles
-
Manuals
Product Description
+−
Inlet Size
2"
Style

GPM
106
Gallons
Engine
Inlet Size
2"
Style
Dewatering
GPM
106 Gallons
Engine
Honda GX
Features
Features
- Multiquip 2" High Pressure Water Pump (230' Max Head)
- Designed for high pressure/high head applications
- Commercial Grade 163cc Honda OHV GX160
- Fuel efficient, easy starting and quieter operation
- Protected By Honda Oil Alert® Warning System
- Alerts you or shuts engine down if oil reaches an unsafe level
- Helps to prevent engine seizure due to a low oil condition
- Die-Cast Aluminum, Closed Design Impeller
- Provide the ability for high pressure pumping (up to 100 PSI)
- Die-Cast Aluminum Body
- Lightweight, resilient pump body for strength
- Silicon/Carbon Mechanical Seal
- Designed for long live and superior abrasion resistance
- Multi-Discharge Manifold
- (1) 1.5" and (2) 1" Ports to suit your application
- 1" Tubular Steel Frame
- Rugged design for added protection on the job site
Specifications
Pump
Gallons Per Minute
106 Gallons
Inlet Diameter
2"
Outlet Diameter
1-1/2"
Self Priming
Yes
Pump Head Material
Aluminum
Pump Housing Drain
Yes
Quick Clean Out
No
Mechanical Seal Material
Silicon Carbide
Impeller Material
Aluminum
Solids Handling Size
.18 inch
Handles Solids
Yes
Suction Head
25 Feet
Maximum PSI
100
Total Head Lift
230 Feet
Submersible
No
Engine
Engine Brand
Honda GX
Starting System
Recoil Start
Engine Cycles
4-Cycle
Low Oil Shutdown
Yes
Fuel Tank Size
1.03 Gallons
Accessories
Tool Kit
Yes
Strainer
No
Hose Couplings
No
Float Switch
No
Hose
Sold Separately
Hose Bands
No
Transport Handle
No
Wheel Kit
No
Overview
Weight
64 Pounds
Consumer Warranty
2 Years
Product Length
22 Inches
Product Width
15 Inches
Product Height
16.5 Inches
