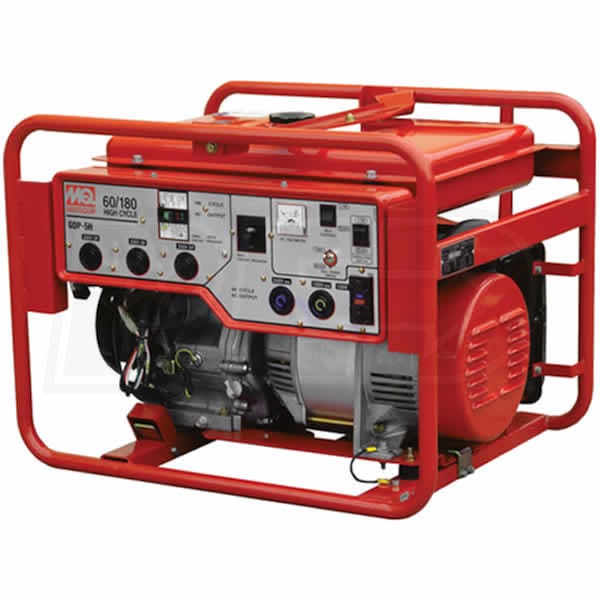

Multiquip GDP5HA - 3600 Watt 60/180 Hz Professional Portable Generator w/ Honda GX Engine (CARB)

Model:

GDP5HA

Write a Review
$3,649.99
Holiday Shipping Schedule
Holiday Schedule -
Free Shipping
&
Lift Gate
  Learn More About Free Freight
Factory-Direct
This Item Is Built To Order
Free Shipping$3,649.99Buy Now
Free Freight$3,649.99Visit Site
Multiquip GDP5HA - 3600 Watt 60/180 Hz Professional Portable Generator w/ Honda GX Engine (CARB)
Multiquip GDP5HA - 3600 Watt 60/180 Hz Professional Portable Generator w/ Honda GX Engine (CARB)
Model: GDP5HA
$3,649.99
Accessories
Features
Specifications
Reviews
How-To Articles
Manuals
Share

Recommended Accessories

Power Equipment Direct expert image
Expert Recommended Accessories Selected by Jared, our Expert
Required Accessories 9
These accessories are required to properly setup/install this product.
Optional Accessories 10

Features

Grade

Professional

Style

Portable

Run Watts

3,600 Rated Watts

Surge Watts

4,000
Starting Watts

Fuel

Gasoline

Engine

Honda GX

  • Multiquip High Cycle Portable Generator - For The Professional Contractor
  • Produces 3600w of continuous 120/240V 60Hz power
  • Only Model That Simultaneously Produces 60Hz/180Hz Power
  • 180Hz for high-cycle concrete vibrators
  • Honda GX340 Industrial-Grade OHV Engine w/ Oil Alert®
  • Provides consistent, dependable & fuel efficient performance
  • Alerts you or shuts engine down if oil reaches an unsafe level
  • Superior Voltage Regulation
  • Brushless alternator w/ 100% copper windings for clean power
  • Full-Panel GFCI Protection - OSHA & NEC Compliant
  • Must use GFI type manual transfer switch for panel connection
  • Not for use with interlock kits
  • Automatic Idle Control
  • Reduces engine speed during periods of no load
  • Rugged & Easy To Use Control Panel w/ Voltmeter
  • Separate 60Hz and 180Hz outlets & allows for easy monitoring
  • Versatile Design
  • Powers up to (3) Multiquip 2" FXA-series high cycle vibrators
  • Fold-Down Lifting Bail Standard
  • 2-Year Parts & Labor Warranty
California residents see
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
For more information go to: www.p65Warnings.ca.gov

Specifications

Plug Types
NEMA 5-20R (GFCI)
NEMA L6-20R
NEMA L5-30R
GDP5HA
specs product image PID-16312
Product Specs
Voltage
Voltage Selector Switch
Frequency
60 Hertz
Alternator
Brushless
Auto Voltage Regulation
Not Necessary
Rated Watts
3600 Watts
Surge Watts
4000 Watts
Fuel Type
Gasoline
Tank Size
5 Gallons
Fuel Tank Material
Metal
Fuel Gauge
Yes
Decibel Rating @ 7m Learn More
Not Measured by Manufacturer
Idle Control
Yes
Hour Meter
Yes
Voltage Meter
Yes
Lifting Eye
Yes
Grade Type
Professional
Engine
Engine Brand
Honda GX
Starting System
Recoil Start
CC
389 CC
Consumer Engine Warranty
2 Years
Commercial Engine Warranty
2 Years
Engine RPM
3600 RPM
Low Oil Alert/Shutdown
Yes
Cast Iron Sleeve
Yes
Overview
Weight
252 Pounds
CA (CARB) Compliant
Yes
Certification
CARB
Consumer Warranty
2 Years
Commercial Warranty
2 Years
Product Style
Portable Generator
Product Length
28.34 Inches
Product Width
22.04 Inches
Product Height
21.25 Inches
Plugs
NEMA 5-20R - GFCI
1
NEMA L6-20R
1
NEMA L5-30R
1
