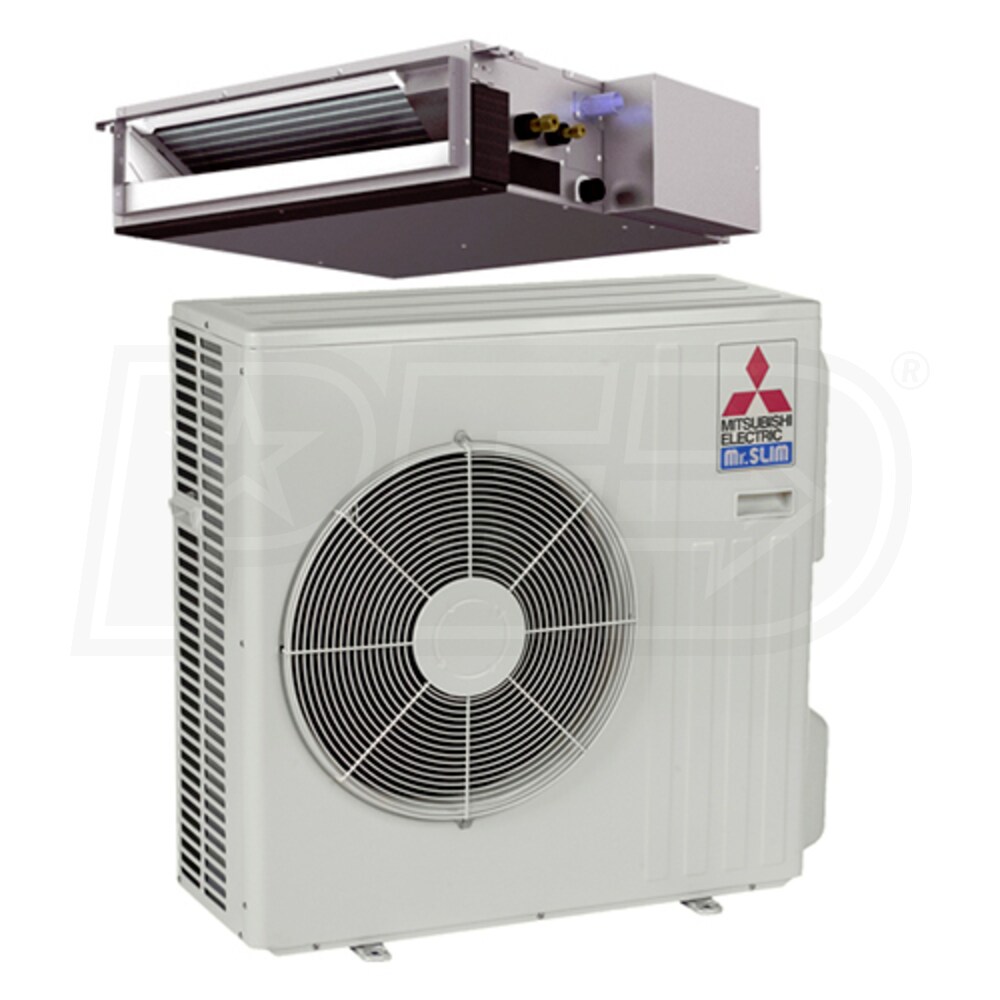

Mitsubishi - 15k BTU Cooling + Heating - M-Series Concealed Duct Air Conditioning System - 15.5 SEER

Model:

SZ-KD15NA

Write A Review
Product Discontinued
Sorry, this product is no longer available.
Continue Shopping With These Categories
Mitsubishi - 15k BTU Cooling + Heating - M-Series Concealed Duct Air Conditioning System - 15.5 SEER
Mitsubishi - 15k BTU Cooling + Heating - M-Series Concealed Duct Air Conditioning System - 15.5 SEER
Model: SZ-KD15NA
Was $2,459.00
Product Discontinued
Features
Specifications
Reviews
How-To Articles
Manuals
Share

Features

    Overview for Mitsubishi SZ-KD15NA

    If you are looking for the Mr. Slim series from Mitsubishi Electric's discrete zoned comfort system, then a short-run ducted unit is the right solution. As a stand-alone system or connected to a MXZ multi-room system, the SEZ ducted units provide energy efficiency, quiet operation, and a compact design for quick, easy installation hidden either in the ceiling or beneath the floor. All of the 1:1 systems are ENERGY STAR certified, and two systems qualify for the federal tax credit. These systems provide customers with an environmentally friendly indoor unit with a similar installation and familiar style. These SEZ indoor units also connect to MXZ multi-zone systems, providing a wide array of installation options to best fit any application.
    Product Includes
    • (1) Mitsubishi 14,100 BTU Ducted Horizontal Heat Pump Air Handler (SEZ-KD15NA4R1.TH)
    • (1) Mitsubishi - 15k BTU - M-Series Outdoor Condenser - Single Zone Only (SUZ-KA15NA.TH)

Specifications

Product Includes
  • (1) Mitsubishi 14,100 BTU Ducted Horizontal Heat Pump Air Handler (SEZ-KD15NA4R1.TH)
  • (1) Mitsubishi - 15k BTU - M-Series Outdoor Condenser - Single Zone Only (SUZ-KA15NA.TH)
SZ-KD15NA
specs product image PID-85552
General Information
Type
Concealed Duct
Product Line
M-Series
Operating Mode Learn More
Operating Mode
Some products are only capable of cooling, while others can either heat or cool a space. Some products heat via "heat pump" technology while others use electric heating elements. Learn More
Heating and Cooling
Number of Zones Learn More
Number of Zones
A zone is a room or area within a building that has its own temperature control.
1
Refrigerant Type
R-410A
Indoor Unit Size(s) Learn More
Indoor Unit Size(s)
Mini split systems can have one or more indoor units connected to a single outdoor unit. Indoor Unit Size(s) specifies what indoor unit sizes are used in a system. We have combined 6k and 7k indoor units to enhance searchability.
15
Configuration Learn More
Configuration
Orientation describes the direction that air will flow through a piece of equipment. (e.g. air will flow horizontally through a "Horizontal" unit heater.) Most equipment will only function properly if installed in the proper orientation.
Multi-Zone
Performance
Cooling BTU
15000
Cooling Capacity
15000 BTU
Heating Capacity
15000 BTU
Maximum Air Flow
529 CFM
Minimum Air Flow
18000 CFM
Electrical Data
Phase
1
Frequency
60 Hz
Minimum Circuit Ampacity
1 Amp
Recommended Breaker Size
10 Amps
Dimensions
Gas Connection Size
1/2 Inch
Liquid Connection Size
1/4 Inch
Product Height
7 7/8 Inches
Product Width
39 Inches
Product Depth
27 9/16 Inches
Product Weight
154 Pounds
Shipping Weight
154 Pounds
Certifications
ETL Listed
Yes
AHRI Certified
Yes
SEZ-KD15NA4R1
General Information
Type
Concealed Duct
Product Line
M-Series
Product Category
Mini Split System Components
Operating Mode Learn More
Operating Mode
Some products are only capable of cooling, while others can either heat or cool a space. Some products heat via "heat pump" technology while others use electric heating elements. Learn More
Heating and Cooling
Multi-Zone Compatible
Yes
Refrigerant Type
R-410A
Indoor Unit Size(s) Learn More
Indoor Unit Size(s)
Mini split systems can have one or more indoor units connected to a single outdoor unit. Indoor Unit Size(s) specifies what indoor unit sizes are used in a system. We have combined 6k and 7k indoor units to enhance searchability.
15
Installation Location
Indoor
Performance
Cooling BTU
15000
Cooling Capacity
14100 BTU
Moisture Removal
2.6 Pints/Hour
Maximum Air Flow
529 CFM
Minimum Air Flow
353 CFM
Minimum Sound Level
30 dB
Maximum Sound Level Learn More
Maximum Sound Level
Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB. Learn More
37 dB
Electrical Data
Phase
1
Frequency
60 Hz
Dimensions
Gas Connection Size
1/2 Inch
Liquid Connection Size
1/4 Inch
Product Height
7 7/8 Inches
Product Width
39 Inches
Product Depth
27 9/16 Inches
Product Weight
64 Pounds
Shipping Weight
74 Pounds
Certifications
ETL Listed
Yes
Warranty Information
Parts Warranty Learn More
Parts Warranty
A warranty is a safeguard from defects in manufacturing and can vary in length and terms. Some manufacturers require registration for extended warranty benefits, be sure to check out features and the warranty document. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
5 Years
Overview
Product Category
Mini Split System Components
SUZ-KA15NA.TH
General Information
Type
Outdoor Condenser
Product Line
M-Series
Product Category
Mini Split System Components
Operating Mode Learn More
Operating Mode
Some products are only capable of cooling, while others can either heat or cool a space. Some products heat via "heat pump" technology while others use electric heating elements. Learn More
Heating and Cooling
Maximum Number of Zones
1
Multi-Zone Compatible
No
Refrigerant Type
R-410A
Installation Location
Outdoor
Performance
Cooling BTU
15000
Cooling Capacity
17700 BTU
Heating BTU
22200
Maximum Sound Level Learn More
Maximum Sound Level
Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB. Learn More
51 dB
Low Ambient Heating
Yes
Minimum Outdoor Temperature for Heating Learn More
Minimum Outdoor Temperature for Heating
This is the lowest rated outdoor temperature for heating operation. Because heat pumps rely on heat available in outdoor air, the amount of heat they are able to supply decreases with outdoor temperatures. Learn More
-4 F
Minimum Outdoor Temperature for Cooling
14 F
Electrical Data
Voltage
208/230 Volts
Phase
1
Frequency
60 Hz
Minimum Circuit Ampacity
12 Amps
Recommended Breaker Size
15 Amps
Dimensions
Maximum Line Length
65 Feet
Gas Connection Size
1/2 Inch
Liquid Connection Size
1/4 Inch
Product Height
21 5/8 Inches
Product Width
31 1/2 Inches
Product Depth
11 1/4 Inches
Product Weight
90 Pounds
Shipping Weight
90 Pounds
Certifications
ETL Listed
Yes
Warranty Information
Parts Warranty Learn More
Parts Warranty
A warranty is a safeguard from defects in manufacturing and can vary in length and terms. Some manufacturers require registration for extended warranty benefits, be sure to check out features and the warranty document. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
5 Years
Compressor Warranty
7 Years
