Features
Product Video Disclaimer: "PED is not responsible for any variances from the product in this video and the item you purchase. Please review all product specs prior to purchase."
- Compact & Capable
- Large displacement and OHV design provide optimal output
- 4-point mounting system greatly reduces overall engine vibration
- Complete Control
- Enjoy seamless shifting and steering for enhanced maneuverability
- Forward, neutral, and reverse with a 180° turning radius
- Automatic reverse lock, for added safety and improved control
- Tiller Style Handle
- Twist grip throttle for easy access and straightforward operation
- Great for those looking to employ techniques such as backtrolling
- Throttle control and steering resistance are adjustable using co-pilots
- Integral Fuel Tank
- Compact 1-liter tank frees up additional space in your boat
- External fuel shutoff keeps the carburetor dry for safer storage
- Extend your cruising range using the convenient remote tank connection
- Painless Ignition
- Designed with capacitor discharge (CD) ignition for a quicker charge
- Built-in decompression combined with a hotter spark makes pull starts a breeze
- Six Manual Trim Positions w/ Shallow Drive
- Tilt Lock System locks motor in place when removing from water or portaging
- Shallow-Water Drive System tilts motor for shallow water operation
- Auto Reverse Lock prevents motor popping when shifted to reverse
- Exclusive Through-Prop Exhaust
- Exhaust is emitted through the prop for significant noise reduction
- The shear pin is easy to maintain and provides drive protection
- 3-blade aluminum with rubber hub propeller instead of plastic (less slippage)
- Easy Maintenance & Transportation
- Lightweight design and built-in handles for painless transportation
- Features an oil drain plug for quick and hassle-free oil changes
- The motor is NOT capable of remote operation, tiller handle control use ONLY
- ***State Registrations Take 2-3 Weeks To Arrive After Request***
California residents see
Warning: This product can expose you to chemicals including Gasoline engine exhaust (condensates/extracts) which is known to the State of California to cause Cancer
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
For more information go to: www.p65Warnings.ca.gov
Specifications
1FX5201KK
General Information
Product Category
Outboard Motor
Engine
CARB Compliant
Yes
Fuel System
Carbureted
Engine Brand
Mercury
Engine Type
4-Stroke OHV
Cylinder Count
1 Cylinder
Horsepower
5
Engine Displacement
123 CCs
Bore & Stroke
2.32 x 1.77 Inches
Full Throttle RPM Range
4,500 - 5,500
Starting System
Recoil
Cooling System
Water Cooled
Ignition System
Digital CDI
Exhaust System
Through Prop
Power Tilt
No
External Fuel Tank
Sold Separately
Power Trim
No
Fuel
Unleaded 87 Octane
Fuel Tank Capacity
.30 US gal
Oil Recommended Viscosity
10W-30 Marine Oil
Oil Pressure Alert
Yes
Engine Oil Capacity
.47 US qt. (15 oz.)
Engine Oil Included
No
Drive
Steering
Tiller
Gear Ratio
2.15:1
Gear Shift
F-N-R
Propeller Blades
3
Propeller Material
Aluminum
Transom Height
15 Inches
Overview
Product Category
Outboard Motor
Weight
57 Pounds
Consumer Warranty
3 Years
Product Length
41 Inches
Product Width
13 Inches
Product Height
21 Inches
Power Type
Gas
UPC
678633078439
Additional Model Numbers
1FX5201EK, 1FX5201KK
Reviews
(4)
Mercury Marine 1FX5201KK Reviews & Ratings
Product Q&A
Be the First to Ask A Question
Answered by Dale, the Power Equipment Expert
How-To Articles
How to Choose an Outboard Motor for Your Small Boat
There's nothing like setting out on the lake for an early morning catch in your...
The Best Honda Marine Boat Motors 2-20hp
Can horses run on water? Of course! With a Honda outboard motor, you'll be gall...
Power Equipment How-To Library
Articles, Tips and Buying Guides from Our Experts
Manuals
Ask A Question!
*Required Fields
+
Thank You For Submitting Your Question
Your submission has been sent successfully. Please give our experts up to two business days to respond.
Media Gallery

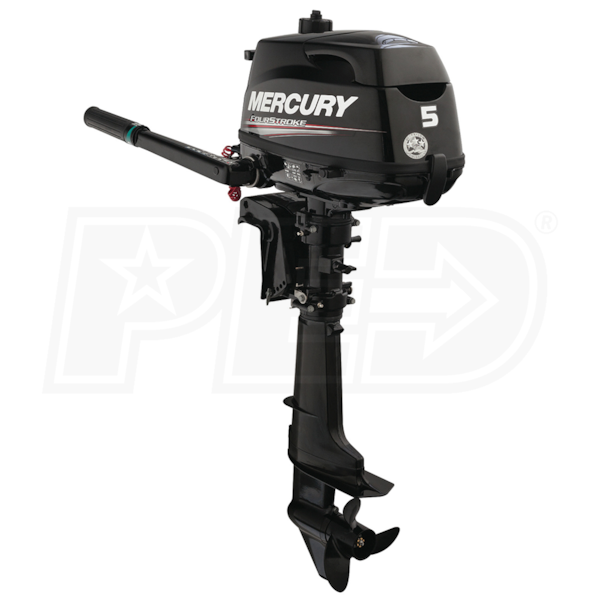

Mercury 5 HP (15") Shaft Gas Powered Outboard Motor
