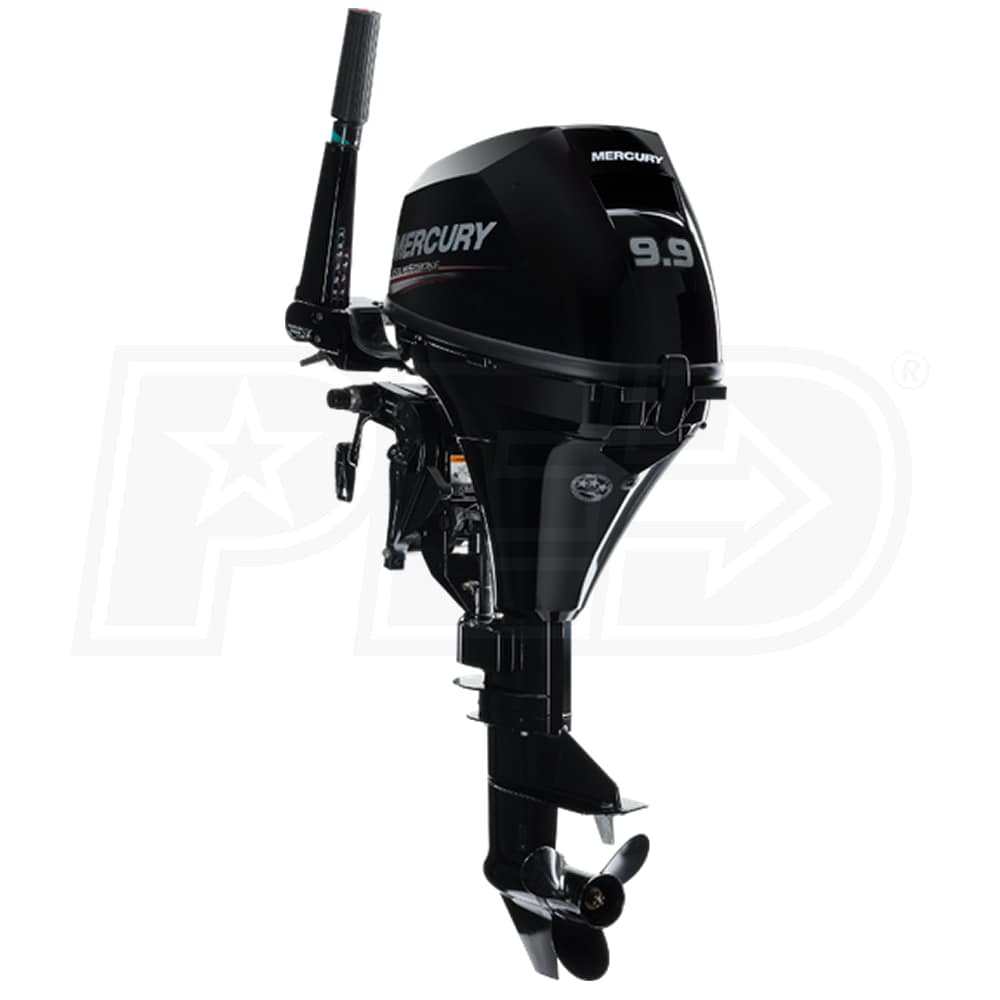

Mercury 9.9 HP (20") Shaft Gas Powered Outboard Motor w/ Electric Start
Model:
1F10311BK
+
Share This Product
Recommended Accessories
Expert Recommended Accessories
Selected by Dale, our Expert
Required Accessories
9
These accessories are required to properly setup/install this product.
Optional Accessories
10
Features
Product Video Disclaimer: "PED is not responsible for any variances from the product in this video and the item you purchase. Please review all product specs prior to purchase."
- Strong & Compact
- The thrust and efficiency you need to power heavier boats
- Single overhead cam (SOHC) with 2 valves per cylinder for max output
- Low oil pressure and over-rev alerts keep you and your engine safe
- Total Control
- Long tiller handle offers the best for steering and hull control
- Tilts up for easy operation and can be locked in up position
- Tilts down for storage for safe and convenient storage
- Easy Starting
- Convenient electric start with manual recoil backup
- 6-Amp alternator maintains the battery's charge
- 3-Position choke for faster starts and warm-ups
- Exclusive Multi-Function Tiller Handle
- Tiller style twist grip throttle for easy, straightforward operation
- Adjustable co-pilots for controlled throttle and steering resistance
- Steering, tilting, stopping, throttle/shifting all in the palm of your hand
- Six Manual Trim Positions w/ Water Drive
- Exclusive ratcheting transom bracket for easy tilt adjustments
- Simply push down on the handle to tilt the motor into position
- Engage the Shallow Drive System to tilt motor when in shallow waters
- Dual Water Pickups
- The gearcase is equipped with a secondary water pick-up
- Helps prevent overheating if primary intakes clogs
- Easy Maintenance & Transportation
- Lightweight design and built-in handles for painless transportation
- Features an oil drain plug for quick and hassle-free oil changes
- Enjoy the convenience of the automotive spin-on type oil filter
- Requires Battery w/ 465 Marine Cranking Amps (Sold Separately)
- The motor is NOT capable of remote operation, tiller handle control use ONLY
- ***State Registrations Take 2-3 Weeks To Arrive After Request***
California residents see
Warning: This product can expose you to chemicals including Gasoline engine exhaust (condensates/extracts) which is known to the State of California to cause Cancer
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
For more information go to: www.p65Warnings.ca.gov
Specifications
1F10311BK
General Information
Product Category
Outboard Motor
Engine
CARB Compliant
Yes
Fuel System
Carbureted
Engine Brand
Mercury
Engine Type
4-Stroke SOHC
Cylinder Count
2 Cylinder
Horsepower
9.9
Engine Displacement
208 CCs
Bore & Stroke
2.16 x 1.73 Inches
Full Throttle RPM Range
5,000 - 6,000
Starting System
Recoil w/ Electric Start
Charging System
6-Amp (76 watt)
Cooling System
Water Cooled
Ignition System
Digital CDI
Exhaust System
Through Prop
Power Tilt
No
External Fuel Tank
Included w/ Fuel Hose
Power Trim
No
Fuel
Unleaded 87 Octane
Fuel Tank Capacity
3.2 US gal Aux Tank
Oil Recommended Viscosity
10W-30 Marine Oil
Oil Pressure Alert
Yes
Engine Oil Capacity
.84 US qt. (27 oz.)
Engine Oil Included
No
Drive
Steering
Tiller
Gear Ratio
2.08:1
Gear Shift
F-N-R
Propeller Blades
3
Propeller Material
Aluminum
Transom Height
20 Inches
Overview
Product Category
Outboard Motor
Weight
94 Pounds
Consumer Warranty
3 Years
Product Length
51 Inches
Product Width
15 Inches
Product Height
35 Inches
Power Type
Gas
UPC
678633127151
Additional Model Numbers
1F10311KK, 1F10311BK
