Features
Product Video Disclaimer: "PED is not responsible for any variances from the product in this video and the item you purchase. Please review all product specs prior to purchase."
- Compact & Capable
- Large displacement and OHV design provide optimal output
- 4-point mounting system greatly reduces overall engine vibration
- Complete Control
- Enjoy seamless shifting and steering for enhanced maneuverability
- Forward, neutral, and reverse with a 180° turning radius
- Automatic reverse lock, for added safety and improved control
- Longer Tiller Style Handle
- Twist grip throttle for easy access and precise throttle control
- Great for those looking to employ techniques such as backtrolling
- Throttle control and steering resistance are adjustable using co-pilots
- Compact Fuel Tank
- External fuel shutoff keeps the carburetor dry for safe storage
- Integral 1-liter tank frees up additional space in your boat
- Extend your cruising range using the convenient remote tank connection
- Effortless Ignition
- Designed with capacitor discharge (CD) ignition for a quicker charge
- Built-in decompression combined with a hotter spark makes pull starts a breeze
- Six Manual Trim Positions w/ Shallow Drive
- Shallow-Water Drive System tilts motor for shallow water operation
- Tilt Lock System locks motor in place when removing from water or portaging
- Exclusive Through-Prop Exhaust
- Exhaust is emitted through the prop for significant noise reduction
- The shear pin is easy to maintain and provides drive protection
- 3-blade aluminum with rubber hub propeller instead of plastic (less slippage)
- Easy Maintenance & Transportation
- Features an oil drain plug for quick and hassle-free oil changes
- Featherweight design and built-in handles for painless transportation
California residents see
Warning: This product can expose you to chemicals including Gasoline engine exhaust (condensates/extracts) which is known to the State of California to cause Cancer
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
For more information go to: www.p65Warnings.ca.gov
Specifications
1F05221KK
General Information
Product Category
Outboard Motor
Engine
CARB Compliant
Yes
Fuel System
Carbureted
Engine Brand
Mercury
Engine Type
4-Stroke OHV
Cylinder Count
1 Cylinder
Horsepower
5
Engine Displacement
123 CCs
Bore & Stroke
2.32 x 1.77 Inches
Full Throttle RPM Range
4,500 - 5,500
Starting System
Recoil
Cooling System
Water Cooled
Ignition System
Digital CDI
Exhaust System
Through Prop
Power Tilt
No
External Fuel Tank
Sold Separately
Power Trim
No
Fuel
Unleaded 87 Octane
Fuel Tank Capacity
.30 US gal
Oil Recommended Viscosity
10W-30 Marine Oil
Oil Pressure Alert
Yes
Engine Oil Capacity
.47 US qt. (15 oz.)
Engine Oil Included
No
Drive
Steering
Tiller
Gear Ratio
2.15:1
Gear Shift
F-N-R
Propeller Blades
3
Propeller Material
Aluminum
Transom Height
25 Inches
Overview
Product Category
Outboard Motor
Weight
60 Pounds
Consumer Warranty
3 Years
Product Length
51 Inches
Product Width
13 Inches
Product Height
21 Inches
Power Type
Gas
UPC
678633126901
Additional Model Numbers
1F05221EK, 1F05221KK
Reviews
(3)
Mercury Marine 1F05221KK Reviews & Ratings
How-To Articles
Manuals
Ask A Question!
*Required Fields
+
Thank You For Submitting Your Question
Your submission has been sent successfully. Please give our experts up to two business days to respond.
Media Gallery

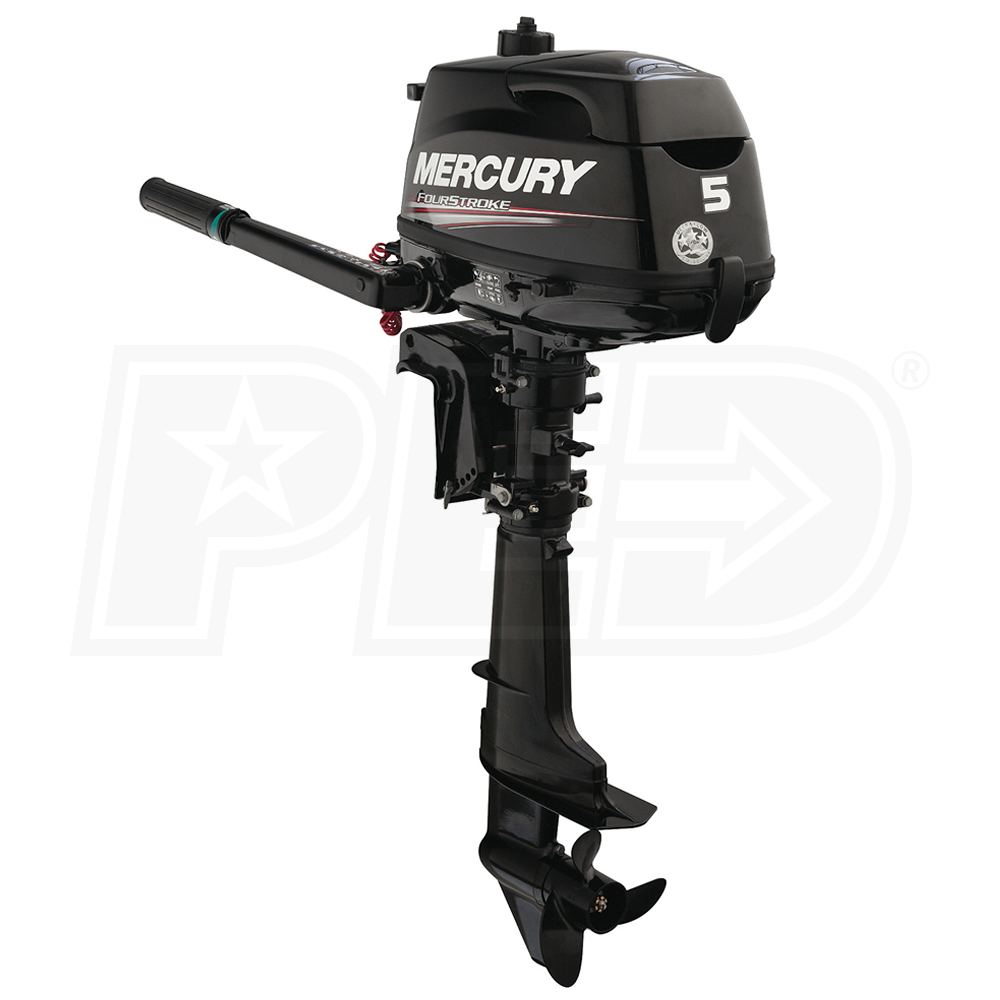

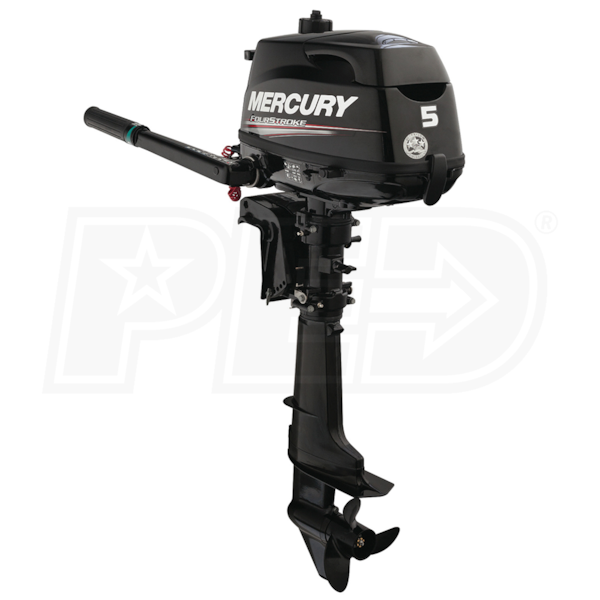

Mercury 5 HP (25") Shaft Gas Powered Outboard Motor
