Features
Product Video Disclaimer: "PED is not responsible for any variances from the product in this video and the item you purchase. Please review all product specs prior to purchase."
- Smooth & Capable
- Overhead valve design with large displacement for peak output
- 4-point mounting system significantly reduces overall engine vibration
- Unrestricted Control
- Enjoy seamless shifting and steering for enhanced maneuverability
- Forward, neutral, and reverse with a 180° turning radius
- Automatic reverse lock, for added safety and improved control
- Longer Tiller Style Handle
- Throttle control and steering resistance are adjustable using co-pilots
- Twist grip throttle for easy access and precise throttle control
- Great for those looking to employ techniques such as backtrolling
- Internal Fuel Tank
- External fuel shutoff keeps the carburetor dry for safer storage
- Compact 1-liter tank frees up additional space in your boat
- Extend your cruising range using the convenient remote tank connection
- Effortless Ignition
- Built-in decompression combined with a hotter spark makes pull starts a breeze
- Designed with capacitor discharge (CD) ignition for a quicker charge
- Six Manual Trim Positions w/ Shallow Drive
- Shallow-Water Drive System tilts motor for shallow water operation
- Tilt Lock System locks motor in place when removing from water or portaging
- Exclusive Through-Prop Exhaust
- Exhaust is emitted through the prop for significant noise reduction
- Designed with a shear pin for added drive protection
- 3-blade aluminum with rubber hub propeller instead of plastic (less slippage)
- Easy Maintenance & Transportation
- Lightweight design and built-in handles for painless transportation
- Features an oil drain plug for quick and hassle-free oil changes
- The motor is NOT capable of remote operation, tiller handle control use ONLY
- ***State Registrations Take 2-3 Weeks To Arrive After Request***
California residents see
Warning: This product can expose you to chemicals including Gasoline engine exhaust (condensates/extracts) which is known to the State of California to cause Cancer
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
For more information go to: www.p65Warnings.ca.gov
Specifications
1F04211KK
General Information
Product Category
Outboard Motor
Engine
CARB Compliant
Yes
Fuel System
Carbureted
Engine Brand
Mercury
Engine Type
4-Stroke OHV
Cylinder Count
1 Cylinder
Horsepower
4
Engine Displacement
123 CCs
Bore & Stroke
2.32 x 1.77 Inches
Full Throttle RPM Range
4,500 - 5,500
Starting System
Recoil
Cooling System
Water Cooled
Ignition System
Digital CDI
Exhaust System
Through Prop
Power Tilt
No
External Fuel Tank
Sold Separately
Power Trim
No
Fuel
Unleaded 87 Octane
Fuel Tank Capacity
.30 US gal
Oil Recommended Viscosity
10W-30 Marine Oil
Oil Pressure Alert
Yes
Engine Oil Capacity
.47 US qt. (15 oz.)
Engine Oil Included
No
Drive
Steering
Tiller
Gear Ratio
2.15:1
Gear Shift
F-N-R
Propeller Blades
3
Propeller Material
Aluminum
Transom Height
20 Inches
Overview
Product Category
Outboard Motor
Weight
59 Pounds
Consumer Warranty
3 Years
Product Length
46 Inches
Product Width
13 Inches
Product Height
21 Inches
Power Type
Gas
UPC
678633126802
Additional Model Numbers
1F04211EK, 1F04211KK
Reviews
(1)
Mercury Marine 1F04211KK Reviews & Ratings
How-To Articles
Manuals
Ask A Question!
*Required Fields
+
Thank You For Submitting Your Question
Your submission has been sent successfully. Please give our experts up to two business days to respond.
Media Gallery

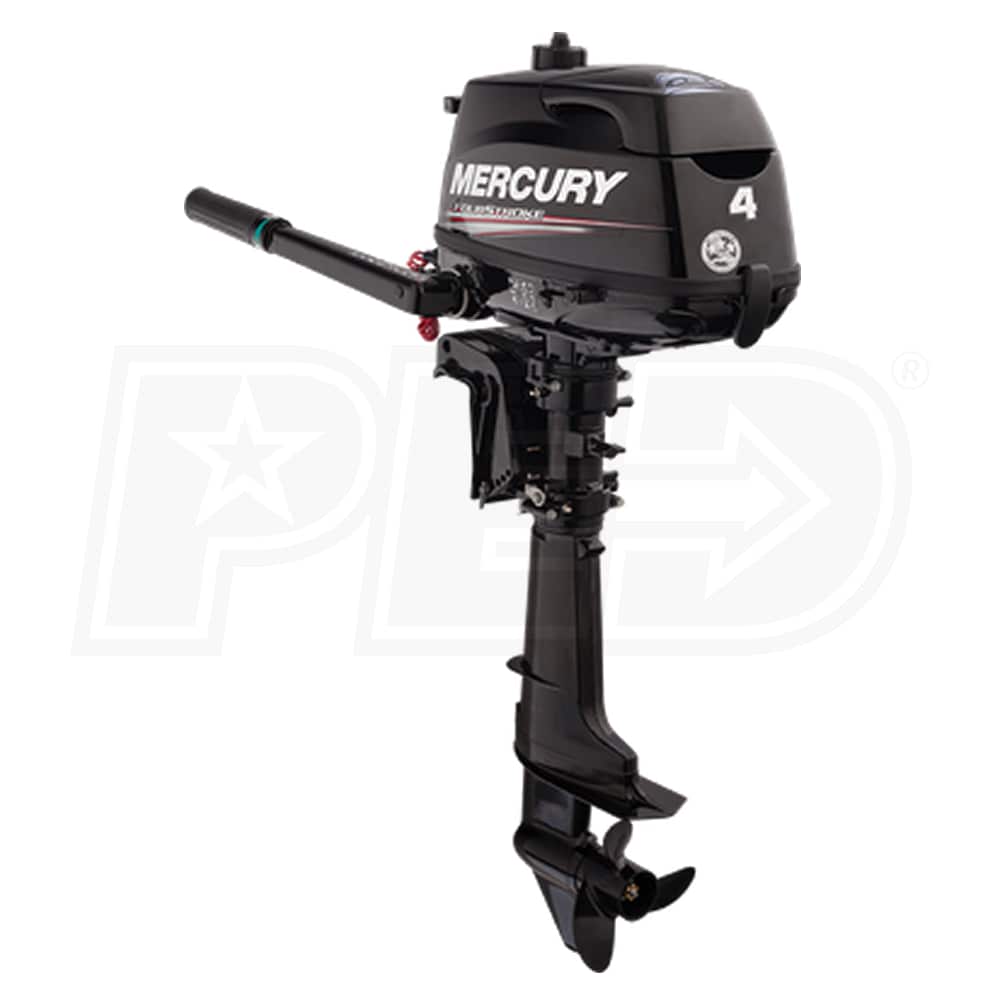

Mercury 4 HP (20") Shaft Gas Powered Outboard Motor
