Features
Product Video Disclaimer: "PED is not responsible for any variances from the product in this video and the item you purchase. Please review all product specs prior to purchase."
- Compact & Capable
- 4-point mounting system significantly reduces overall engine vibration
- Overhead valve design and large displacement provide optimal power output
- Unrestricted Control
- Enjoy seamless shifting and steering for greater maneuverability
- Forward and neutral gears with a 180°/360° turning radius
- Tiller Style Handle
- Twist grip throttle for easy access and straightforward operation
- Co-pilot friction adjusters for fine-tuning throttle and steering resistance
- Integral Fuel Tank
- Compact 1-liter tank frees up additional space in your boat
- External fuel shutoff keeps your carburetor dry for safer storage
- Painless Ignition
- Designed with capacitor discharge (CD) ignition for a quicker charge
- Built-in decompression combined with a hotter spark makes pull starts a breeze
- Four Manual Trim Positions
- Exercise 1 of 4 tilt positions for maximum control and performance
- Tilt Lock System locks motor in place when removing from water or portaging
- 3-Blade Propeller
- Constructed with durable composite material for efficient operation
- Simply remove the shear pin to perform prop maintenance!
- Easy Maintenance & Transportation
- Lightweight design and built-in handles for painless transportation
- Use the oil site gauge to quickly check on oil quality and levels
- Features an oil drain plug for quick and hassle-free oil changes
- The motor is NOT capable of remote operation, tiller handle control use ONLY
- ***State Registrations Take 2-3 Weeks To Arrive After Request***
California residents see
Warning: This product can expose you to chemicals including Gasoline engine exhaust (condensates/extracts) which is known to the State of California to cause Cancer
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
For more information go to: www.p65Warnings.ca.gov
Specifications
1F03201KK
General Information
Product Category
Outboard Motor
Engine
CARB Compliant
Yes
Fuel System
Carbureted
Engine Brand
Mercury
Engine Type
4-Stroke OHV
Cylinder Count
1 Cylinder
Horsepower
3.5
Engine Displacement
85 CCs
Bore & Stroke
2.16 x 1.42 Inches
Full Throttle RPM Range
5,000 - 6,000
Starting System
Recoil
Cooling System
Water Cooled
Ignition System
Digital CDI
Exhaust System
Under Water, Above Propeller
Power Tilt
No
External Fuel Tank
No
Power Trim
No
Fuel
Unleaded 87 Octane
Fuel Tank Capacity
.30 US gal
Oil Recommended Viscosity
10W-30 Marine Oil
Oil Pressure Alert
No
Engine Oil Capacity
.31 US qt. (10 oz.)
Engine Oil Included
No
Drive
Steering
Tiller
Gear Ratio
2.15:1
Gear Shift
F-N
Propeller Blades
3
Propeller Material
Plastic
Transom Height
15 Inches
Gearcase Pre-Filled
Yes
Overview
Product Category
Outboard Motor
Weight
41 Pounds
Consumer Warranty
3 Years
Product Length
40 Inches
Product Width
14 Inches
Product Height
19 Inches
Power Type
Gas
UPC
678633126734
Additional Model Numbers
1F03201EK, 1F03201KK
Reviews
(5)
Mercury Marine 1F03201KK Reviews & Ratings
Product Q&A
Be the First to Ask A Question
Answered by Dale, the Power Equipment Expert
How-To Articles
How to Choose an Outboard Motor for Your Small Boat
There's nothing like setting out on the lake for an early morning catch in your...
The Best Honda Marine Boat Motors 2-20hp
Can horses run on water? Of course! With a Honda outboard motor, you'll be gall...
Power Equipment How-To Library
Articles, Tips and Buying Guides from Our Experts
Manuals
Ask A Question!
*Required Fields
+
Thank You For Submitting Your Question
Your submission has been sent successfully. Please give our experts up to two business days to respond.
Media Gallery

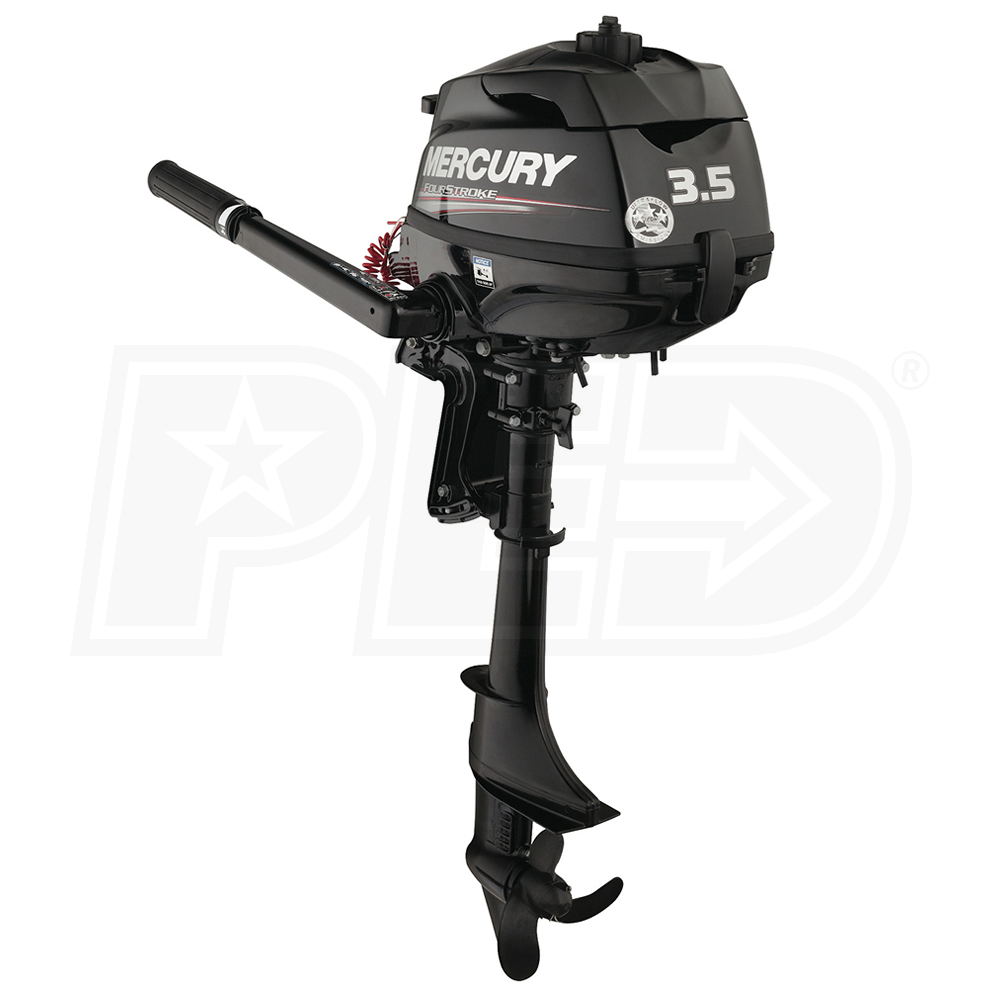

Mercury 3.5 HP (15") Shaft Gas Powered Outboard Motor
