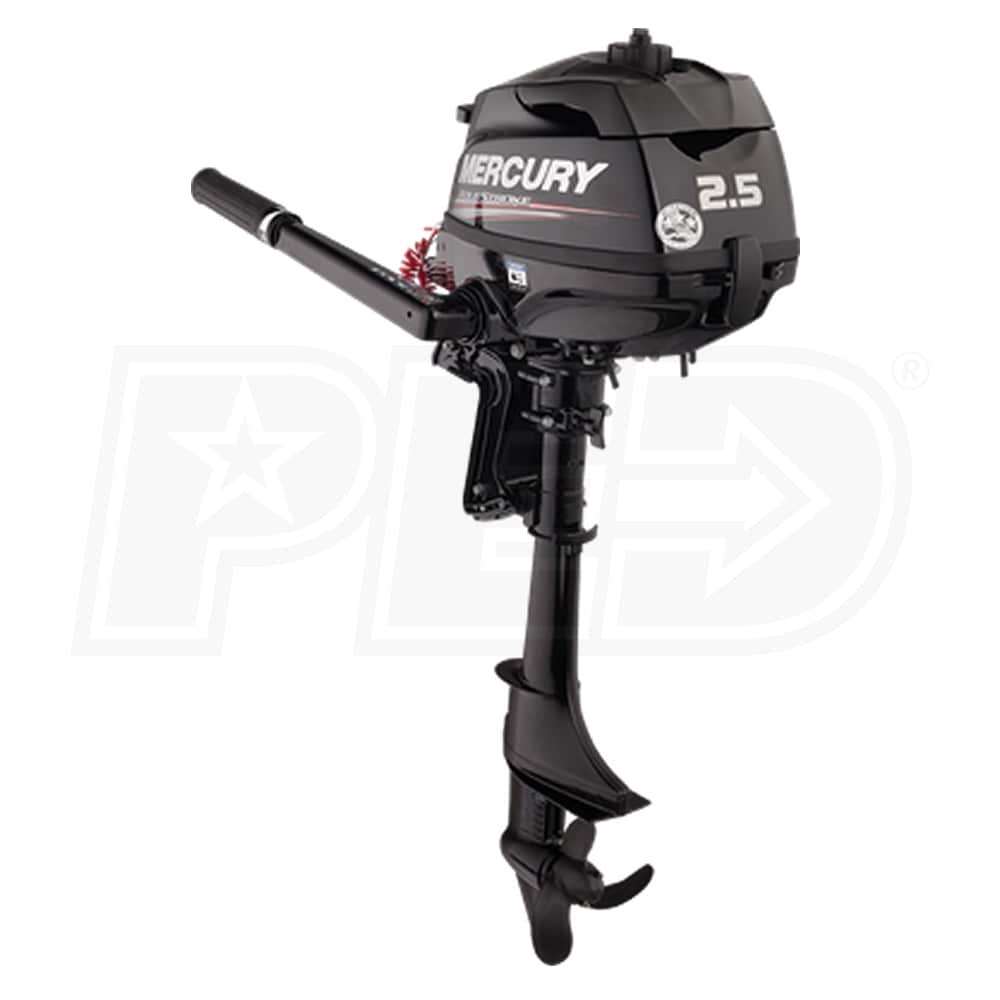

Mercury 2.5 HP (15") Shaft Gas Powered Outboard Motor

Model:

1F02201KK

Write a Review
$900.99
Holiday Shipping Schedule
Holiday Schedule -
Free Shipping
  Learn More About Free Freight
In-Stock
Ships in 1-3 Business Days
Shipping to60601

Mercury 2.5 HP (15
Mercury 2.5 HP (15") Shaft Gas Powered Outboard Motor
Model: 1F02201KK
$900.99
Accessories
Features
Specifications
Reviews
How-To Articles
Manuals
Share

Recommended Accessories

Power Equipment Direct expert image
Expert Recommended Accessories Selected by Dale, our Expert
Required Accessories 9
These accessories are required to properly setup/install this product.
Optional Accessories 10

Features



Product Video Disclaimer: "PED is not responsible for any variances from the product in this video and the item you purchase. Please review all product specs prior to purchase."
  • Smooth & Capable
  • 4-point mounting system significantly reduces overall engine vibration
  • Overhead valve design and large displacement provide optimal power output
  • Tiller Style Handle
  • Twist grip throttle for easy access and straightforward operation
  • Forward and neutral gears with a 180/360 turning radius
  • Enjoy seamless shifting and steering for better maneuverability
  • Co-pilot friction adjusters for fine-tuning throttle and steering resistance
  • Integral Fuel Tank
  • Compact 1-liter tank frees up additional space in your boat
  • External fuel shutoff keeps the carburetor dry for safer storage
  • Effortless Ignition
  • Designed with capacitor discharge (CD) ignition for a quicker charge
  • Built-in decompression combined with a hotter spark makes pull starts a breeze
  • Four Manual Trim Positions
  • Exercise 1 of 4 trim positions for maximum control and performance
  • Tilt Lock System locks motor in place when removing from water or portaging
  • 3-Blade Propeller
  • Designed with durable composite material for efficient operation
  • Simply remove the shear pin to perform prop maintenance
  • Easy Maintenance & Transportation
  • Lightweight design and built-in handles for painless transportation
  • Use the oil site gauge to quickly check on oil quality and levels
  • Features an oil drain plug for quick and hassle-free oil changes
  • The motor is NOT capable of remote operation, tiller handle control use ONLY
California residents see
Warning: This product can expose you to chemicals including Gasoline engine exhaust (condensates/extracts) which is known to the State of California to cause Cancer
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
For more information go to: www.p65Warnings.ca.gov

Specifications

1F02201KK
specs product image PID-97558
Engine
CARB Compliant
Yes
Fuel System
Carbureted
Engine Brand
Mercury
Engine Type
4-Stroke OHV
Cylinder Count
1 Cylinder
Horsepower
2.5
Engine Displacement
85 CCs
Bore & Stroke
2.16 x 1.42 Inches
Full Throttle RPM Range
4,500 - 5,500
Starting System
Recoil
Cooling System
Water Cooled
Ignition System
Digital CDI
Exhaust System
Under Water, Above Propeller
Power Tilt
No
External Fuel Tank
No
Power Trim
No
Fuel
Unleaded 87 Octane
Fuel Tank Capacity
.30 US gal
Oil Recommended Viscosity
10W-30 Marine Oil
Oil Pressure Alert
No
Engine Oil Capacity
.31 US qt. (10 oz.)
Engine Oil Included
No
Drive
Steering
Tiller
Gear Ratio
2.15:1
Gear Shift
F-N
Propeller Blades
3
Propeller Material
Plastic
Transom Height
15 Inches
Overview
Weight
41 Pounds
Consumer Warranty
3 Years
Product Length
40 Inches
Product Width
14 Inches
Product Height
19 Inches
Power Type
Gas
UPC
678633126710
Additional Model Numbers

1F02201EK, 1F02201KK
