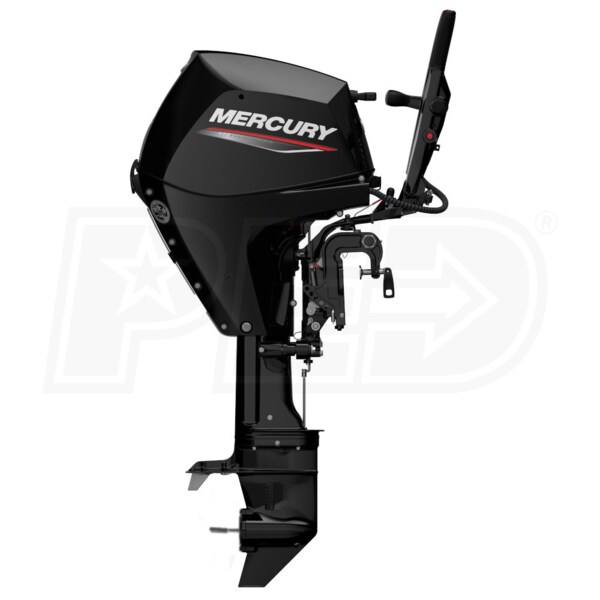

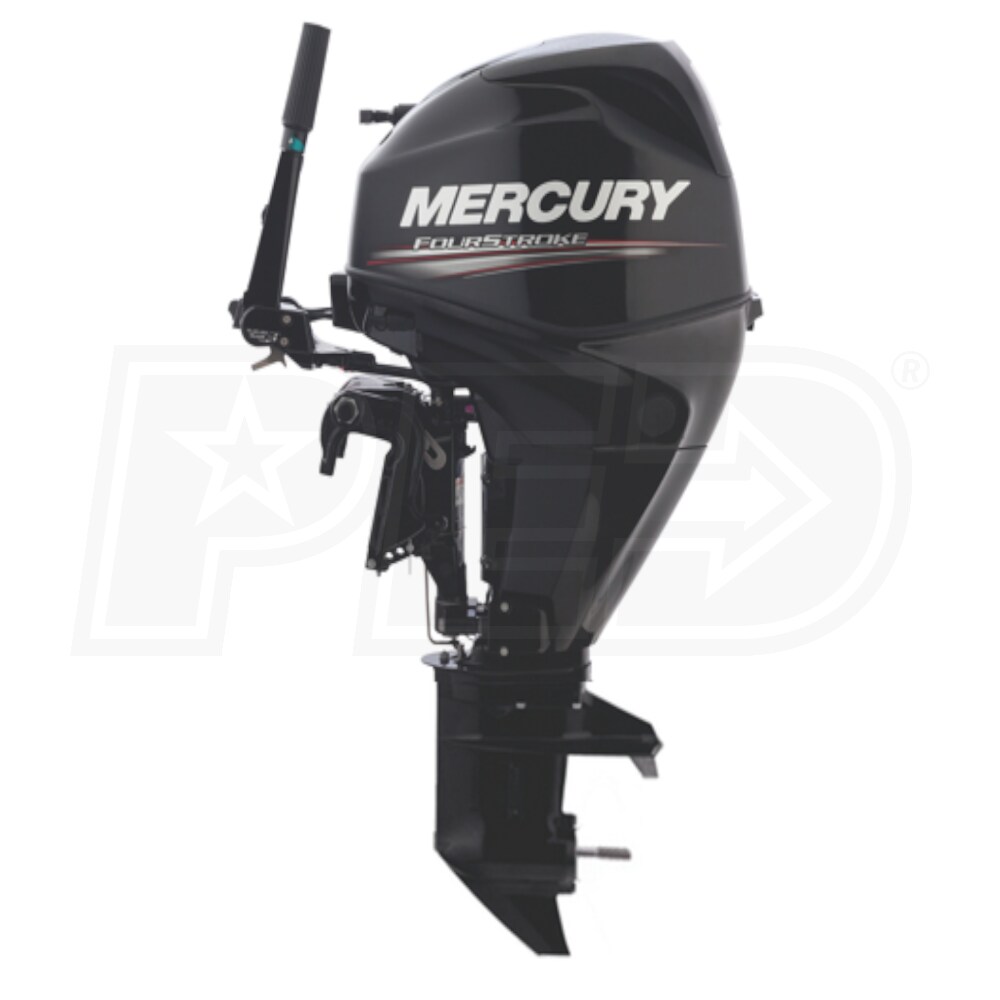

Mercury 25 HP (15") Shaft EFI Outboard Motor

Model:

1A25203BK

Write A Review
Product Discontinued
Sorry, this product is no longer available.
Mercury 25 HP (15
Mercury 25 HP (15") Shaft EFI Outboard Motor
Model: 1A25203BK
Was $4,005.00
Product Discontinued
Features
Specifications
Reviews
How-To Articles
Manuals
Share

Features



Product Video Disclaimer: "PED is not responsible for any variances from the product in this video and the item you purchase. Please review all product specs prior to purchase."
  • Highly Efficient EFI (Electronic Fuel Injection) Engine
  • Powerful (SOHC) design delivers performance with smooth operation
  • Battery-free EFI reduces weight for easier portability
  • Easy starting, burns less fuel and requires less maintenance vs. carburetor system
  • Newly Designed Exclusive Multi-Function Tiller Handle
  • Tiller style twist grip throttle for easy, straightforward operation
  • Steering, tilting, stopping, throttle/shifting all in the palm of your hand
  • Built-To-Last
  • Durable 1.92:1 gear ratio for added thrust in any direction
  • Dual water intake ensures proper water cooling
  • Overheating, low oil pressure and over-rev protection alerts keep you and your engine safe
  • Five Trim Positions w/ Shallow Drive
  • Shallow Drive System tilts the motor for operation in shallow waters
  • Simply push down on the handle to tilt the motor into position
  • Convenience
  • 15-Amp alternator maintains the battery's charge
  • No-maintenance digital CD ignition for a hotter spark
  • Easy Maintenance & Transportation
  • Lightweight design & built-in handles for painless transportation
  • Features an oil drain plug for quick and hassle-free oil changes
  • Enjoy the convenience of the automotive spin-on type oil filter
  • Propeller Does Not Come With Motor - Click to Learn More
  • The motor is NOT capable of remote operation, tiller handle control use ONLY
  • ***State Registrations Take 2-3 Weeks To Arrive After Request***
California residents see
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
For more information go to: www.p65Warnings.ca.gov

Specifications

1A25203BK
specs product image PID-100810
General Information
Product Category
Outboard Motor
Engine
CARB Compliant
Yes
Fuel System
EFI
Engine Brand
Mercury
Engine Type
4-Stroke SOHC
Cylinder Count
3 Cylinder
Horsepower
25
Engine Displacement
526 CCs
Bore & Stroke
2.40 X 2.36 Inches
Full Throttle RPM Range
5,000 - 6,000
Starting System
Recoil
Cooling System
Water Cooled
Ignition System
Digital CDI
Exhaust System
Through Prop
Power Tilt
No
External Fuel Tank
Included w/ Fuel Hose
Power Trim
No
Fuel
Unleaded 87 Octane
Fuel Tank Capacity
6.6 US gal Aux Tank
Oil Recommended Viscosity
10W-30 Marine Oil
Oil Pressure Alert
Yes
Engine Oil Capacity
1.9 US qt. (60.8 oz.)
Engine Oil Included
No
Drive
Steering
Tiller
Gear Ratio
1.92:1
Gear Shift
F-N-R
Transom Height
15 Inches
Overview
Product Category
Outboard Motor
Weight
132 Pounds
CARB Compliant
Yes
Consumer Warranty
3 Years
Product Length
23 Inches
Product Width
38 Inches
Product Height
63 Inches
Power Type
Gas
UPC
678633127700
Additional Model Numbers

1A25203EK, 1A25203BK
