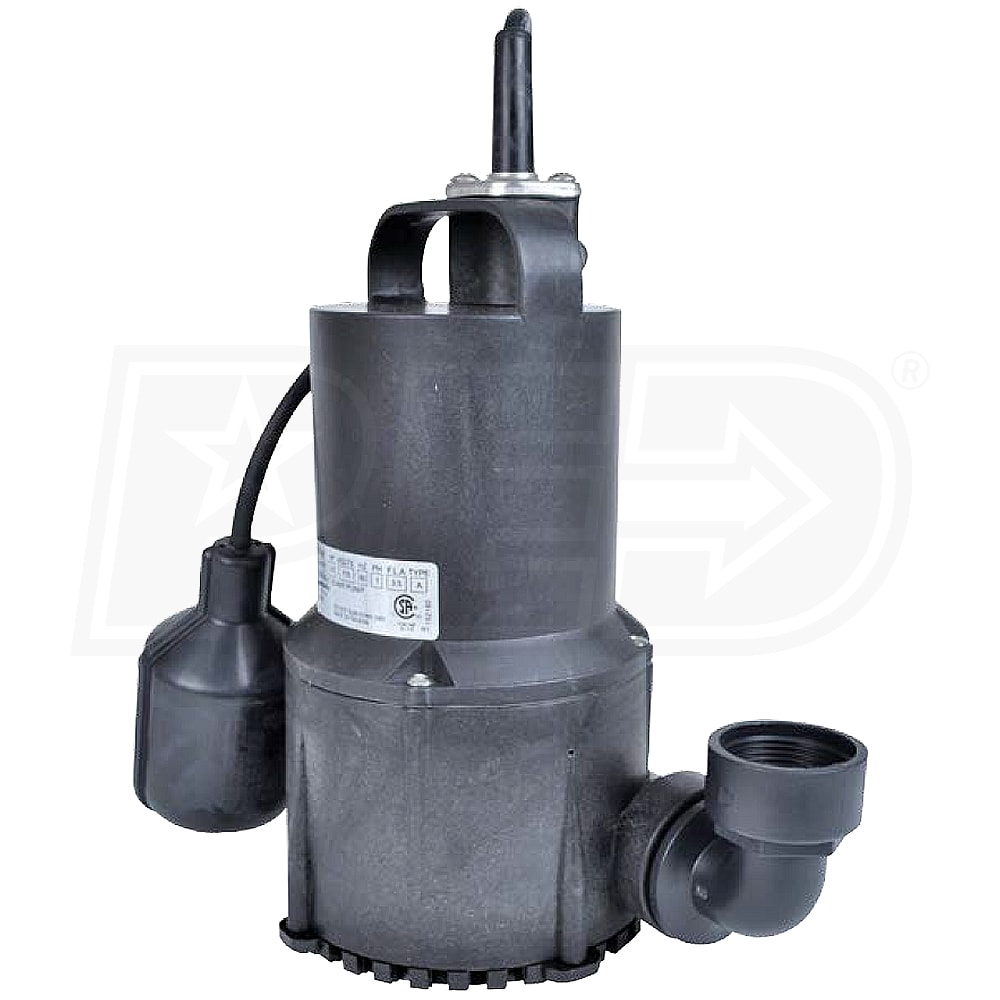

Little Giant SP33A - 1/3 HP Thermoplastic Submersible Sump Pump w/ Tether Float Switch
Model:
620135
+
Share This Product
Recommended Accessories
Expert Recommended Accessories
Selected by Jim, our Expert
Required Accessories
9
These accessories are required to properly setup/install this product.
Optional Accessories
10
Features
Style
Primary
GPH
1800 Gallons
Switch Type
Tether
- Automatic Submersible Sump Pump
- Ideal for light-duty sump and utility pump applications
- Reinforced Thermoplastic Pump Housing
- Durable design provides excellent corrosion resistance
- 1/3 HP Continuous Duty, Overload Protected "Oil-Free" Motor
- Energy saving design w/ low amp draw (3.5-Amps full load)
- Tethered Float Switch
- Provides automatic operation in sump pits as small as 12-inches
- Stainless Steel Motor Housing & Heat Treated Shaft
- Provides improved heat dissipation for longer motor life
- Reinforced Thermoplastic Impeller
- Non-clogging design passes up to 1/4" spherical solds
- Built-In Suction Strainer w/ Removable Filter Screen
- Minimizes debris entering pump to prevent pump damage
- Makes cleaning out this pump an easy task
- 10-Foot Power Cord
- 23' Max Shutoff Head
- 1-Year Limited Warranty
California residents see
Warning: This product can expose you to chemicals including Carbon black (airborne, unbound particles of respirable size) which is known to the State of California to cause Cancer.
For more information go to: www.p65Warnings.ca.gov
Specifications
620135
Base
Min Sump Basin Size
12 Inch
Motor
Voltage
120 Volt
Running Amps
3.5
Thermal Protection
Yes
Power Cord Length
10 Feet
Oil Free Motor
Yes
Pump
Housing Material
Thermoplastic
Solids Handling Size
.25 inch
Float Type
Tether Switch

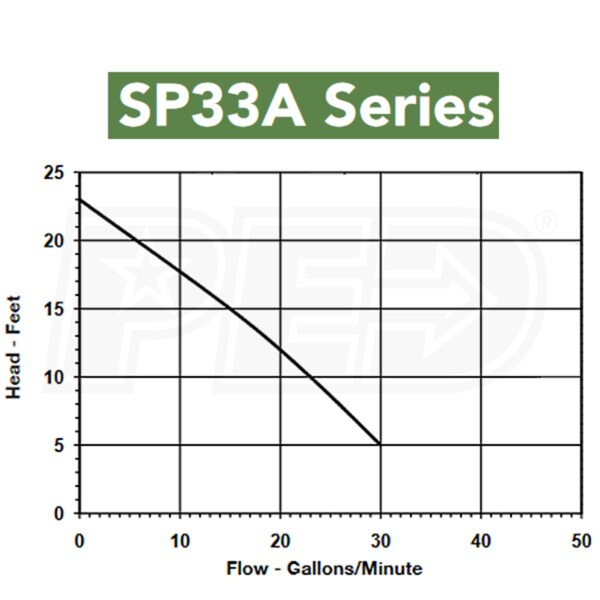

GPH @ 0 feet
1800
GPH @ 5 feet
1800
GPH @ 10 feet
1380
GPH @ 15 feet
900
GPH @ 20 feet
300
Discharge Port Size
1-1/4 Inch
Check Valve Included
No
Float On
11.8" Inches
Float Off
5.9" Inches
Manual Override
No
Engine
Horsepower
.33 hp
Overview
Weight
10 Pounds
Consumer Warranty
1 Year
Product Length
8.375 Inches
Product Width
5.87 Inches
Product Height
10 Inches
UPC
010121126008
