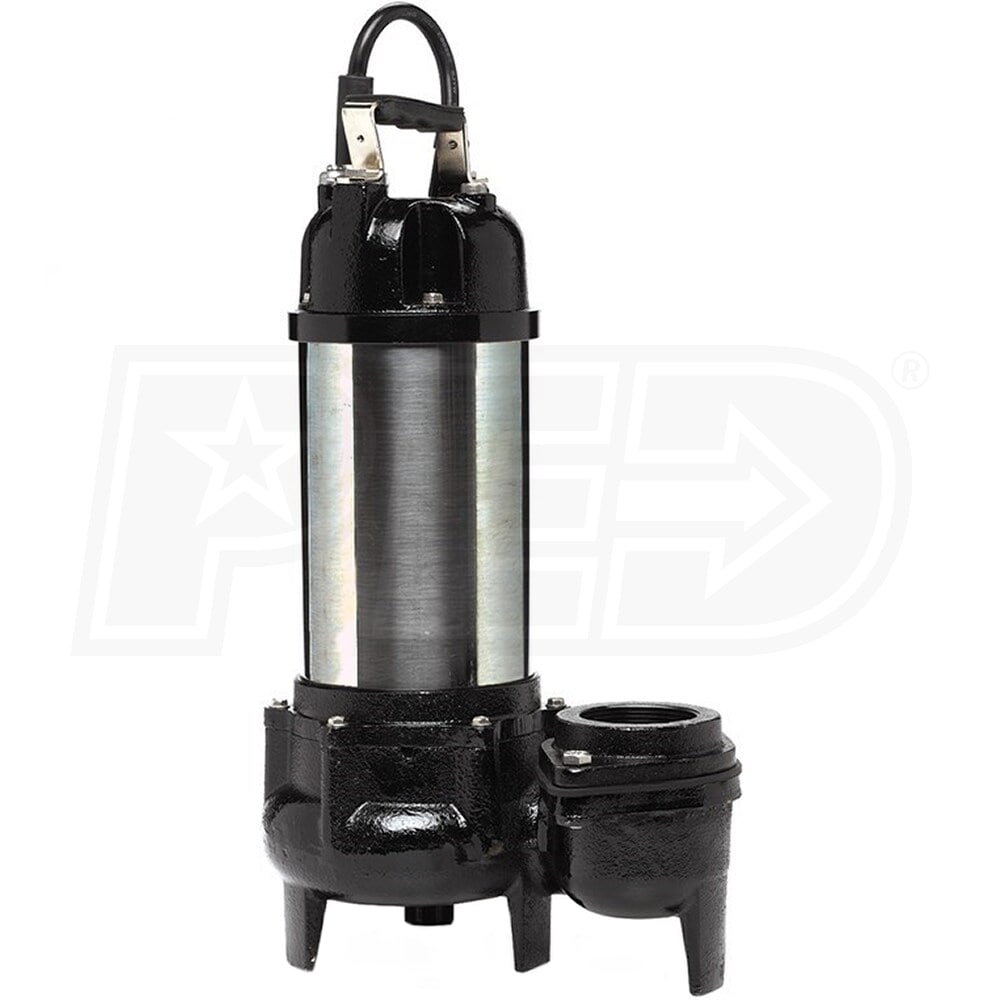

Little Giant WGFP-200 - 250 PGM 2-HP (3") Submersible Stainless Steel Water Feature Pump (19' Cord - Bare Lead) (230V)
Model: 566072
+
Share This Product
-
Product Description
-
Reviews
-
Product Q&A
-
Recommended Accessories
-
How-To Articles
-
Manuals
Product Description
+−
Inlet Size
N/A
Style
GPM
250
Gallons
Inlet Size
N/A
GPM
250 Gallons
Features
Features
- Little Giant WPG Series Submersible Pump
- Specifically designed for water features
- 2 HP PSC Motor* (230V)
- Energy efficient design, only draws 9 Amps
- Built-In Thermal Protection w/ Auto-Reset
- Provides added protection to keep your pump running
- Continuous Duty Rated
- For operating in the most rigorous of water features
- Stainless Steel Motor Casing
- Corrosion-resistant design for extended pump life
- Vortex-Style Impeller
- Easily pass solids up to 1"
- Double Mechanical & Single Radial-Lip Shaft Seals
- Provides maximum motor protection from leaks
- 3" FPT Discharge
- Allows for up to 16,000 GPH @ 5' Head lift
- 19-Foot Power Cord w/ Bare Leads
- Designed for hard-wired applications
- 2-Year Limited Warranty
Specifications
Base
Base Material
Cast Iron
Motor
Voltage
230 Volt
Running Amps
9
Thermal Protection
Yes
Power Cord Length
19 Feet
Pump
Gallons Per Minute
250 Gallons
Housing Material
Stainless Steel
Solids Handling Size
1 inch
Handles Solids
Yes

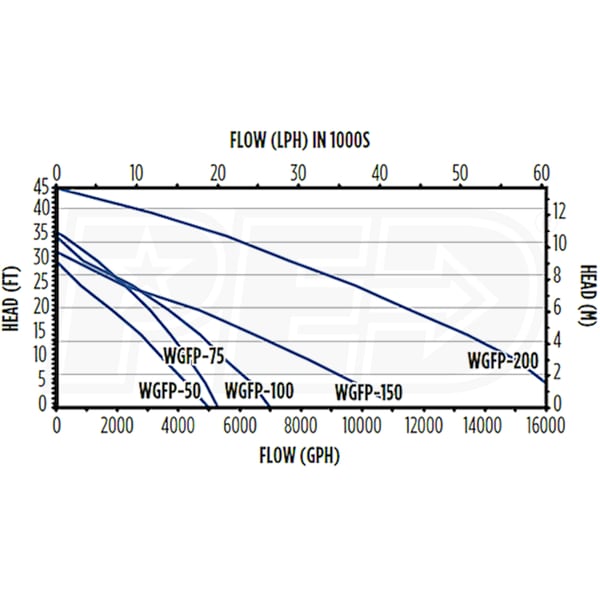

GPH @ 5 feet
16000
GPH @ 10 feet
15000
GPH @ 15 feet
13410
GPH @ 20 feet
11575
Discharge Port Size
3 Inch
Min Head
45 Feet
Submersible
Yes
Engine
Continuous Operation
Yes
Horsepower
2 hp
Overview
Weight
55 Pounds
Consumer Warranty
2 Years
Commercial Warranty
2 Years
Product Depth
7.5 Inches
Product Width
11.75 Inches
Product Height
20.75 Inches
UPC
010121139985
Inlet Size
N/A
Style
GPM
250
Gallons
Inlet Size
N/A
GPM
250 Gallons
Features
Features
- Little Giant WPG Series Submersible Pump
- Specifically designed for water features
- 2 HP PSC Motor* (230V)
- Energy efficient design, only draws 9 Amps
- Built-In Thermal Protection w/ Auto-Reset
- Provides added protection to keep your pump running
- Continuous Duty Rated
- For operating in the most rigorous of water features
- Stainless Steel Motor Casing
- Corrosion-resistant design for extended pump life
- Vortex-Style Impeller
- Easily pass solids up to 1"
- Double Mechanical & Single Radial-Lip Shaft Seals
- Provides maximum motor protection from leaks
- 3" FPT Discharge
- Allows for up to 16,000 GPH @ 5' Head lift
- 19-Foot Power Cord w/ Bare Leads
- Designed for hard-wired applications
- 2-Year Limited Warranty
Specifications
Base
Base Material
Cast Iron
Motor
Voltage
230 Volt
Running Amps
9
Thermal Protection
Yes
Power Cord Length
19 Feet
Pump
Gallons Per Minute
250 Gallons
Housing Material
Stainless Steel
Solids Handling Size
1 inch
Handles Solids
Yes
GPH @ 5 feet
16000
GPH @ 10 feet
15000
GPH @ 15 feet
13410
GPH @ 20 feet
11575
Discharge Port Size
3 Inch
Min Head
45 Feet
Submersible
Yes
Engine
Continuous Operation
Yes
Horsepower
2 hp
Overview
Weight
55 Pounds
Consumer Warranty
2 Years
Commercial Warranty
2 Years
Product Depth
7.5 Inches
Product Width
11.75 Inches
Product Height
20.75 Inches
UPC
010121139985
Product Specs
+−
Specifications
Base
Base Material
Cast Iron
Motor
Voltage
230 Volt
Running Amps
9
Thermal Protection
Yes
Power Cord Length
19 Feet
Pump
Gallons Per Minute
250 Gallons
Housing Material
Stainless Steel
Solids Handling Size
1 inch
Handles Solids
Yes
GPH @ 5 feet
16000
GPH @ 10 feet
15000
GPH @ 15 feet
13410
GPH @ 20 feet
11575
Discharge Port Size
3 Inch
Min Head
45 Feet
Submersible
Yes
Engine
Continuous Operation
Yes
Horsepower
2 hp
Overview
Weight
55 Pounds
Consumer Warranty
2 Years
Commercial Warranty
2 Years
Product Depth
7.5 Inches
Product Width
11.75 Inches
Product Height
20.75 Inches
UPC
010121139985
