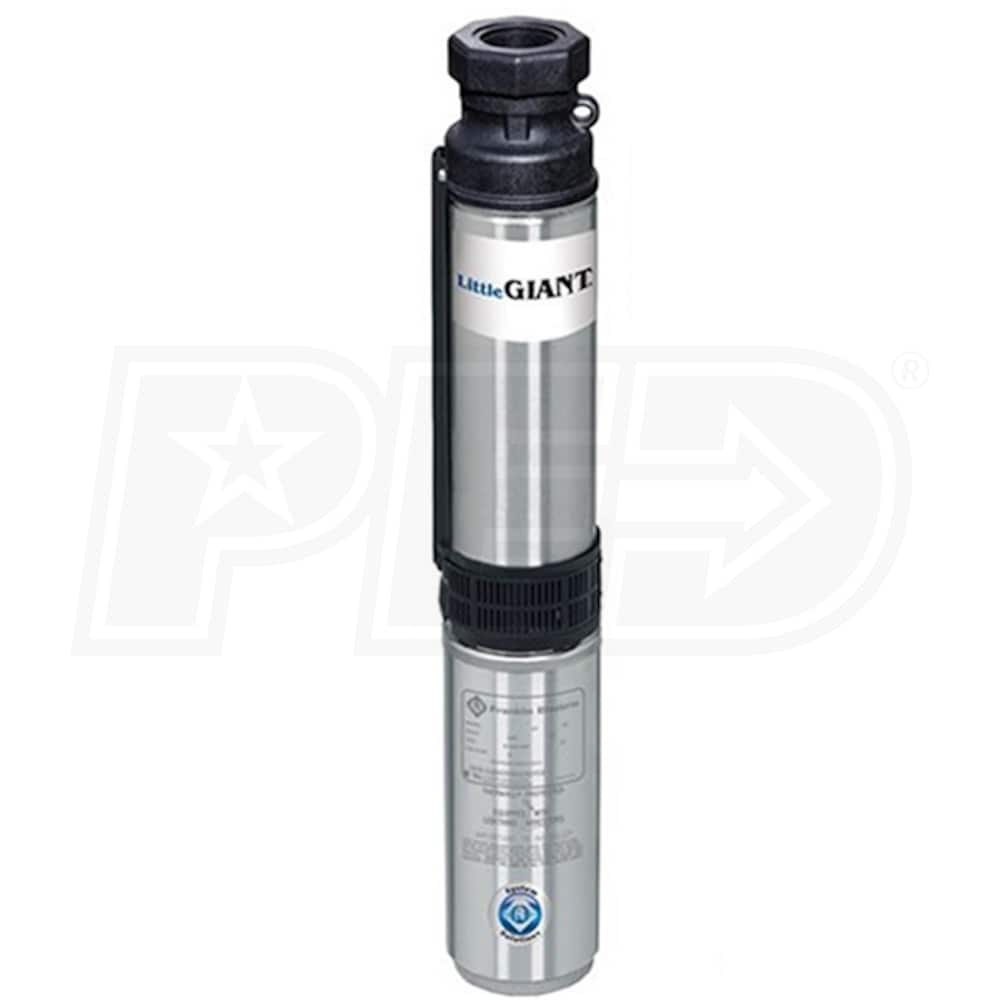

Little Giant W12G07S9-22P - 3/4 HP 12 GPM Deep Well Submersible Pump (2-Wire 230V)
Model:
558566
+
Share This Product
Recommended Accessories
Expert Recommended Accessories
Selected by Jim, our Expert
Required Accessories
9
These accessories are required to properly setup/install this product.
Optional Accessories
10
Features
Inlet Size
N/A
Style
Deep Well
GPM
12 Gallons
- 4" Submersible Deep Well Pump (2-Wire 230V)
- Ideal for use with 4" I.D. or larger wells
- Powered By Industry Standard Franklin Electric Motor
- Proven superior quality & performance ensuring quiet operation
- Hex Rubber Bearing w/ Extra-Large Surface
- Provides shaft stability and multiple flow channels
- Keeps small particles such as sand away from bearing surfaces
- Built-In Flomatic™ Check Valve
- Prevents backflow and ensures system pressure
- Removable Suction Screen
- Helps to prevent debris from clogging impellers
- Celcon® Disk
- Provides close tolerances for increased performance
- Ceramic Bearing Sleeve & Stainless steel Up-Thrust Washer
- Prevents excessive wear and provides added durability
- 1-1/4" NPT Thermoplastic Discharge Head
- Provides full-flow performance without the risk of corrosion
- 2-Year Warranty
- *Note* Installation Checklist Can Be Found On Spec Tab
Specifications
558566
General Information
Product Category
Water Pump
Motor
Voltage
240 Volt Single-Phase
Wire
2-Wire
Pump
Gallons Per Minute
12 Gallons
Outlet Diameter
1-1/4 Inch
Housing Material
Stainless Steel
Impeller Material
Plastic
Total Head Lift
295 Feet
Submersible
Yes
Engine
Horsepower
0.75 hp
Overview
Product Category
Water Pump
Weight
27 Pounds
Consumer Warranty
2 Years
Product Length
25 Inches
Product Width
3.9 Inches
UPC
010121118515
Reviews
(1)
Little Giant 558566 Reviews & Ratings
Product Q&A
(2)
Product Questions
Answered by Jim, the Water Pump Expert
In have 4 inch ID pvc well casing ..your product description says it will fit. What is the width of the pump?
Vince
from Indiana
June 16, 2016
I plan to replace a 30 yer old pump that is at 200 ft. and lower the new pump to 250 ft in a 400 ft deep well. Will I need to a check valve mid way up as well as at the well head?
Ken G
from California
July 27, 2015
