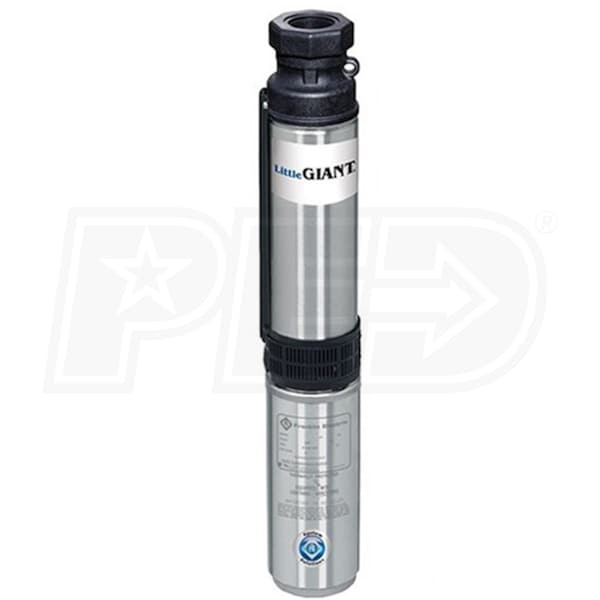

Little Giant W22G15S9-32P - 1-1/2 HP 22 GPM Deep Well Submersible Pump (3-Wire 230V)

Little Giant W22G15S9-32P - 1-1/2 HP 22 GPM Deep Well Submersible Pump (3-Wire 230V)
Model: 558539
$799.00
Factory-Direct
Ships in 2-5 Business Days
Factory items ship direct from the manufacturer.
Shipping times vary.
Free Shipping &
Tax-Free (Except IL)
Free ShippingNo Sales Tax* (Except IL)$799.00Buy Now
Free ShippingNo Sales Tax* (Except IL)$799.00Visit Site
No Sales Tax* (Except IL)$799.00Visit Site
Factory-Direct
Ships in 2-5 Business Days
Enter your ZIP Code below to see an estimated arrival time of delivery to your home or business.
*We currently CANNOT ship this product to Canada or any destination outside of the United States
Free Shipping
Free Shipping
  • Product Description
  • Reviews
  • 1
    Product Q&A
  • Recommended Accessories
  • How-To Articles
  • Manuals
Product Description
+

Inlet Size
N/A
Style
GPM
22
Gallons
Features
Features
  • *Please Note* - Requires Control Box For Operation (Not Included)
  • 4" Submersible Deep Well Pump (3-Wire 230V)
  • Ideal for use with 4" I.D. or larger wells
  • Powered By Industry Standard Franklin Electric Motor
  • Proven superior quality & performance ensuring quiet operation
  • Hex Rubber Bearing w/ Extra-Large Surface
  • Provides shaft stability and multiple flow channels
  • Keeps small particles such as sand away from bearing surfaces
  • Built-In Flomatic™ Check Valve
  • Prevents backflow and ensures system pressure
  • Removable Suction Screen
  • Helps to prevent debris from clogging impellers
  • Celcon® Disk
  • Provides close tolerances for increased performance
  • Ceramic Bearing Sleeve & Stainless Steel Up-Thrust Washer
  • Prevents excessive wear and provides added durability
  • 1-1/4" NPT Thermoplastic Discharge Head
  • Minimizes friction while providing smooth & quiet operation
  • 2-Year Warranty
  • *Note* Installation Checklist Can Be Found On Spec Tab
Specifications
Motor
Voltage
240 Volt
Wire
3-Wire
Engine
Horsepower
1.5 hp
Pump
Gallons Per Minute
22 Gallons
Outlet Diameter
1-1/4"
Housing Material
Stainless Steel
Impeller Material
Plastic
Total Head Lift
280 Feet
Maximum PSI
121
Submersible
Yes
Accessories
Control Box
Sold Separately
Overview
Weight
40 Pounds
Product Length
27 Inches
Product Width
3.9 Inches
Consumer Warranty
2 Years
UPC
010121134980

Inlet Size
N/A
Style
GPM
22
Gallons
Features
Features
  • *Please Note* - Requires Control Box For Operation (Not Included)
  • 4" Submersible Deep Well Pump (3-Wire 230V)
  • Ideal for use with 4" I.D. or larger wells
  • Powered By Industry Standard Franklin Electric Motor
  • Proven superior quality & performance ensuring quiet operation
  • Hex Rubber Bearing w/ Extra-Large Surface
  • Provides shaft stability and multiple flow channels
  • Keeps small particles such as sand away from bearing surfaces
  • Built-In Flomatic™ Check Valve
  • Prevents backflow and ensures system pressure
  • Removable Suction Screen
  • Helps to prevent debris from clogging impellers
  • Celcon® Disk
  • Provides close tolerances for increased performance
  • Ceramic Bearing Sleeve & Stainless Steel Up-Thrust Washer
  • Prevents excessive wear and provides added durability
  • 1-1/4" NPT Thermoplastic Discharge Head
  • Minimizes friction while providing smooth & quiet operation
  • 2-Year Warranty
  • *Note* Installation Checklist Can Be Found On Spec Tab
Specifications
Motor
Voltage
240 Volt
Wire
3-Wire
Engine
Horsepower
1.5 hp
Pump
Gallons Per Minute
22 Gallons
Outlet Diameter
1-1/4"
Housing Material
Stainless Steel
Impeller Material
Plastic
Total Head Lift
280 Feet
Maximum PSI
121
Submersible
Yes
Accessories
Control Box
Sold Separately
Overview
Weight
40 Pounds
Product Length
27 Inches
Product Width
3.9 Inches
Consumer Warranty
2 Years
UPC
010121134980
Product Specs
+
Specifications
Motor
Voltage
240 Volt
Wire
3-Wire
Engine
Horsepower
1.5 hp
Pump
Gallons Per Minute
22 Gallons
Outlet Diameter
1-1/4"
Housing Material
Stainless Steel
Impeller Material
Plastic
Total Head Lift
280 Feet
Maximum PSI
121
Submersible
Yes
Accessories
Control Box
Sold Separately
Overview
Weight
40 Pounds
Product Length
27 Inches
Product Width
3.9 Inches
Consumer Warranty
2 Years
UPC
010121134980
Reviews
+
This product has no reviews.
Be the first to voice your opinion on this Little Giant product.
Product Q&A
(1)
+
What is the difference between 2 wire and 3 wire 220V pumps, which is best
Harold
from Texas
July 05, 2016
Read Response +
Answer
Harold,

The difference between the 2 and 3 wire pumps is that the 2-wire (actually 3 because there is a ground) includes all the pump starting components inside the pump which is located down in the well. The 3-wire (actually 4 because there is a ground) connects to a control box above ground. this control box includes all the pump starting components, i.e, quick disconnect relay, overloads and capacitors so if there is a problem and one of those components is the cause of the pump failing, it is much easier to replace those components.
