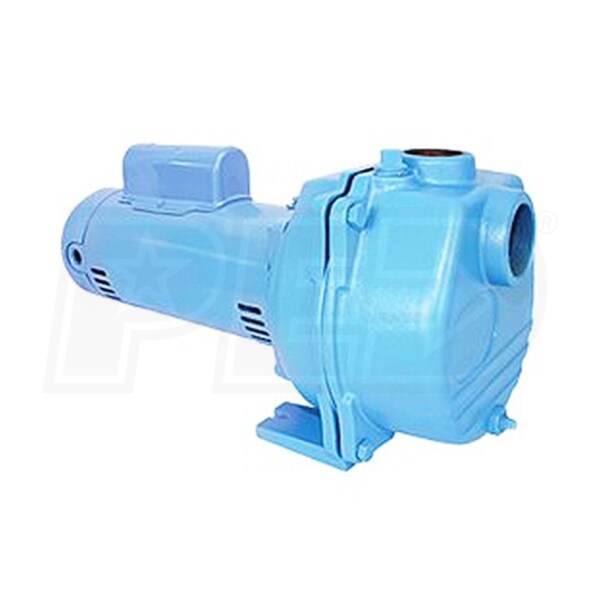

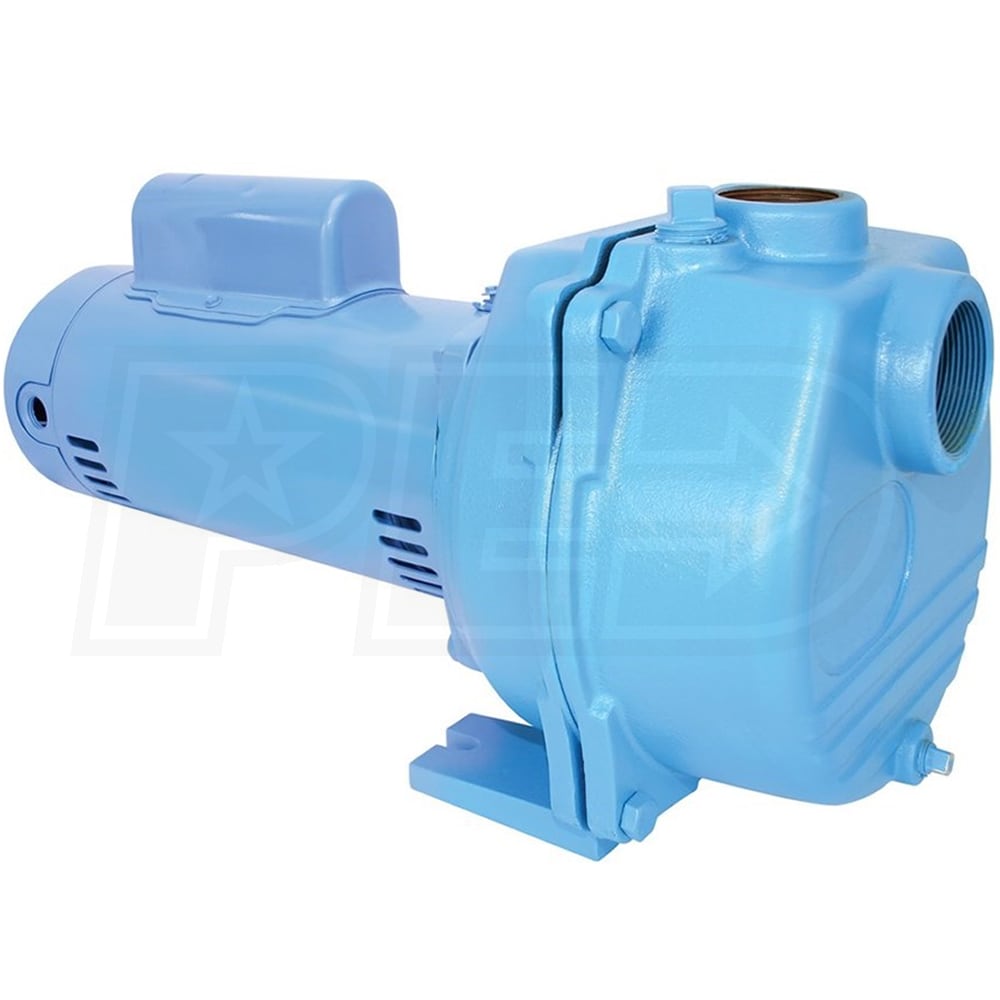

Little Giant LSPH-200-C - 85 GPM 2 HP High-Pressure Cast Iron Sprinkler Pump (55 Max PSI)
Model:
558298
+
Share This Product
Recommended Accessories
Expert Recommended Accessories
Selected by Jim, our Expert
Required Accessories
9
These accessories are required to properly setup/install this product.
Optional Accessories
10
Features
Inlet Size
2 Inch
Style
Sprinkler
GPM
85 Gallons
- 2 HP Lawn High-Pressure Sprinkler Pump
- For use in underground or above ground lawn sprinkling systems
- Provides up to 55 Max PSI
- Heavy-Duty Cast Iron Housing & Seal Plate
- Designed for years of service and reliability
- 230 Volt Heavy-Duty Century Motor (3450 RPM)
- Low amp draw w/ single-phase capacitor start
- Self-Priming Design w/ Priming Plug
- After initial fill, no additional priming required
- 5/8" Rotating Mechanical Seal
- Provides a reliable seal agaisnt water leakage
- Brass Impeller, Engineered Thermoplastic Diffuser Nozzle & Venturi
- Designed for the highest pump efficiency and longevity
- Buna-N Elastomers, Carbon-Ceramic Seal & SS Motor Shaft
- Provides corrosion resistance and 110°F max operating temperature
- Built-In Drain Plug
- Makes it easy to drain the pump before storage
- 2-Year Warranty
Specifications
558298
General Information
Product Category
Water Pump
Motor
Voltage
240 Volt Single-Phase
Running Amps
11.2
Pump
Gallons Per Minute
85 Gallons
Inlet Diameter
2 Inch
Outlet Diameter
1-1/2 Inch
Self Priming
Yes
Pump Housing Drain
Yes
Mechanical Seal Material
Ceramic Carbon
Housing Material
Cast Iron
Impeller Material
Brass
Suction Head
25 Feet
Maximum PSI
55
Total Head Lift
125 Feet
Submersible
No
Engine
Horsepower
2 hp
Overview
Product Category
Water Pump
Weight
73 Pounds
Consumer Warranty
2 Years
Product Length
21 Inches
Product Width
12 Inches
Product Height
12? Inches
UPC
010121141049
