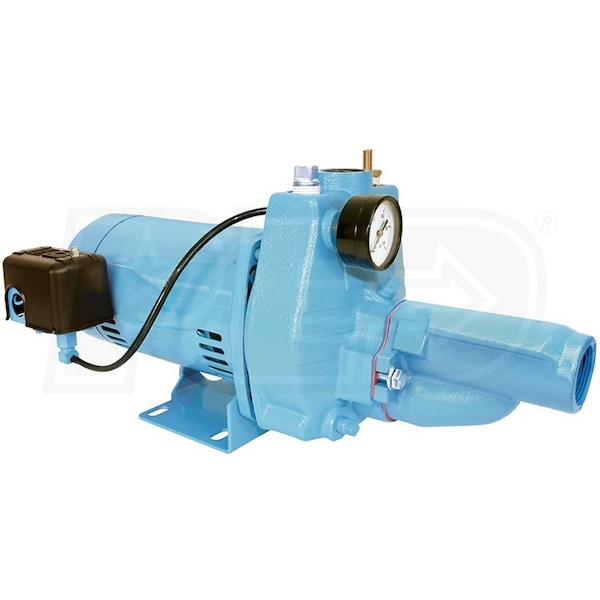

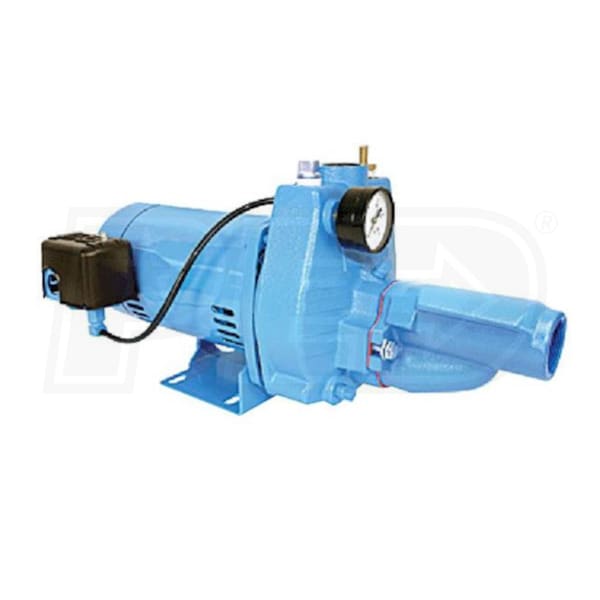

Little Giant JPC-075-C - 3/4 HP Cast Iron Convertible Jet Pump w/ Injector Kit
Model:
558282
+
Share This Product
Recommended Accessories
Expert Recommended Accessories
Selected by Jim, our Expert
Required Accessories
9
These accessories are required to properly setup/install this product.
Optional Accessories
10
Features
Inlet Size
1-1/4 Inch
Style
Convertible Jet
GPM
18.2 Gallons
- 3/4 HP Convertible Jet Pump w/ Deep Well Venturi
- Ideal for use in pumping at depths of 25' or less
- Ideal for use in deep wells (25’ to 90’)
- Heavy-Duty Cast Iron Casing & Seal Plate
- Built for years of reliable service
- 115/230 Volt Heavy-Duty Century Motor
- Voltage selector for simple connection to existing power source
- Pressure Switch Preset at 30/50 PSI
- Includes pressure gauge to easily monitor pump operation
- Stainless Steel Motor Shaft Seal & Dual Ball Bearings
- Minimizes corrosion extends the life of the pump
- Engineered Thermoplastic Impeller, Diffuser Nozzle & Venturi
- Designed for the highest pump efficiency and longevity
- 1-Inch Discharge
- Compatible with most residential plumbing applications
- 2 Year Warranty
Specifications
558282
General Information
Product Category
Water Pump
Motor
Voltage
120/240 Volt
Running Amps
7.4
Pump
Gallons Per Minute
18.2 Gallons
Inlet Diameter
1-1/4 Inch
Outlet Diameter
1 Inch
Pump Housing Drain
Yes
Housing Material
Cast Iron
Impeller Material
Plastic
Suction Head
90 Feet
Total Head Lift
164 Feet
Submersible
No
Engine
Horsepower
0.75 hp
Overview
Product Category
Water Pump
Weight
37 Pounds
Consumer Warranty
2 Years
Product Length
19.58 Inches
Product Width
9 Inches
Product Height
10 Inches
UPC
010121119536
