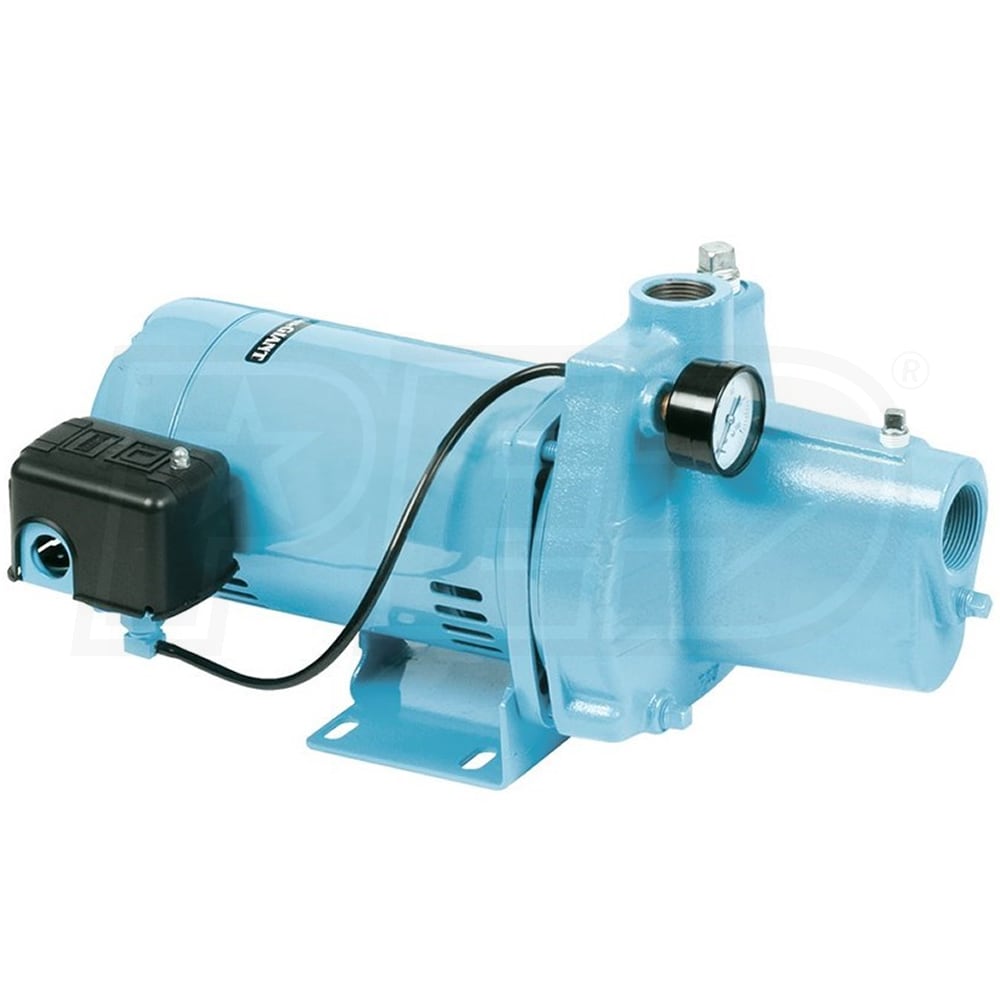

Little Giant JP-075-C - 16 GPM 3/4 HP Cast Iron Shallow Well Jet Pump

Little Giant JP-075-C - 16 GPM 3/4 HP Cast Iron Shallow Well Jet Pump
Our Price
Compare Prices
Shipping Info
Model: 558275
(Based on expert analysis, manufacturer ratings and customer reviews)
5.0 out of 55.0 out of 55.0 out of 55.0 out of 55.0 out of 5
Number of Reviews (2)
Write A Review
$399.00
Factory-Direct
Ships in 4-7 Business Days
Factory items ship direct from the manufacturer.
Shipping times vary.
Free Shipping
Free Shipping$399.00Buy Now
Free Shipping$399.00Visit Site
$399.00Visit Site
Factory-Direct
Ships in 4-7 Business Days
Free Shipping
Free Shipping
*We currently CANNOT ship this product to California or any destination outside of the United States
Share
  • Product Description
  • 2
    Reviews
  • 1
    Product Q&A
  • Recommended Accessories
  • How-To Articles
  • Manuals
Product Description
+

Inlet Size
1-1/4"
Style
GPM
16.2
Gallons
Inlet Size
1-1/4"
GPM
16.2 Gallons
Features
Features
  • 3/4 HP Shallow Well Jet Pump
  • Ideal for use in pumping at depths of 25' or less
  • Heavy-Duty Cast Iron Casing & Seal Plate
  • Built for years of reliable service
  • 115/230 Volt Heavy-Duty Century Motor
  • Voltage selector for simple connection to existing power source
  • Pressure Switch Preset at 30/50 PSI
  • Includes pressure gauge to easily monior pump operation
  • Stainless Steel Motor Shaft Seal & Dual Ball Bearings
  • Minmizes corrosion extends the life of the pump
  • Engineered Thermoplastic Impeller, Diffuser Nozzle & Venturi
  • Designed for the highest pump efficiency and longevity
  • Clean-Out Plug
  • Makes it easy to unclog nozzle
  • 1-Inch Discharge
  • Compatible with most residential plumbing applications
  • 2-Year Warranty
Specifications
Motor
Voltage
120/240 Volt
Running Amps
7.4
Pump
Gallons Per Minute
16.2 Gallons
Inlet Diameter
1-1/4"
Quick Clean Out
Yes
Housing Material
Cast Iron
Impeller Material
Plastic
Suction Head
25 Feet
Total Head Lift
150 Feet
Maximum PSI
65
Submersible
No
Engine
Horsepower
0.75 hp
Overview
Weight
38 Pounds
Product Length
17.9 Inches
Product Width
9.8 Inches
Product Height
9.8 Inches
Consumer Warranty
2 Years
UPC
010121119512

Inlet Size
1-1/4"
Style
GPM
16.2
Gallons
Inlet Size
1-1/4"
GPM
16.2 Gallons
Features
Features
  • 3/4 HP Shallow Well Jet Pump
  • Ideal for use in pumping at depths of 25' or less
  • Heavy-Duty Cast Iron Casing & Seal Plate
  • Built for years of reliable service
  • 115/230 Volt Heavy-Duty Century Motor
  • Voltage selector for simple connection to existing power source
  • Pressure Switch Preset at 30/50 PSI
  • Includes pressure gauge to easily monior pump operation
  • Stainless Steel Motor Shaft Seal & Dual Ball Bearings
  • Minmizes corrosion extends the life of the pump
  • Engineered Thermoplastic Impeller, Diffuser Nozzle & Venturi
  • Designed for the highest pump efficiency and longevity
  • Clean-Out Plug
  • Makes it easy to unclog nozzle
  • 1-Inch Discharge
  • Compatible with most residential plumbing applications
  • 2-Year Warranty
Specifications
Motor
Voltage
120/240 Volt
Running Amps
7.4
Pump
Gallons Per Minute
16.2 Gallons
Inlet Diameter
1-1/4"
Quick Clean Out
Yes
Housing Material
Cast Iron
Impeller Material
Plastic
Suction Head
25 Feet
Total Head Lift
150 Feet
Maximum PSI
65
Submersible
No
Engine
Horsepower
0.75 hp
Overview
Weight
38 Pounds
Product Length
17.9 Inches
Product Width
9.8 Inches
Product Height
9.8 Inches
Consumer Warranty
2 Years
UPC
010121119512
Product Specs
+
Specifications
Motor
Voltage
120/240 Volt
Running Amps
7.4
Pump
Gallons Per Minute
16.2 Gallons
Inlet Diameter
1-1/4"
Quick Clean Out
Yes
Housing Material
Cast Iron
Impeller Material
Plastic
Suction Head
25 Feet
Total Head Lift
150 Feet
Maximum PSI
65
Submersible
No
Engine
Horsepower
0.75 hp
Overview
Weight
38 Pounds
Product Length
17.9 Inches
Product Width
9.8 Inches
Product Height
9.8 Inches
Consumer Warranty
2 Years
UPC
010121119512
Reviews
(2)
+
Little Giant 558275 Reviews & Ratings
Product Q&A
(1)
+
Search Product Q&A's Answered by Jim, the Water Pump Expert
icon-social-fb1
+
What is the best dewatering pump for suction depth of 15 meters and pumping against a head of 10 metres?
Mushabe Charles
from Virginia
January 11, 2014
Answer
Thank you for your interest in Water Pumps Direct. Your only real option for this application would be a CONVERTIBLE JET PUMP. You would need to insure that that you size the pump according to your GPM & PSI requirements. These pumps can handle a maximum suction lift of just over 27 meters.
