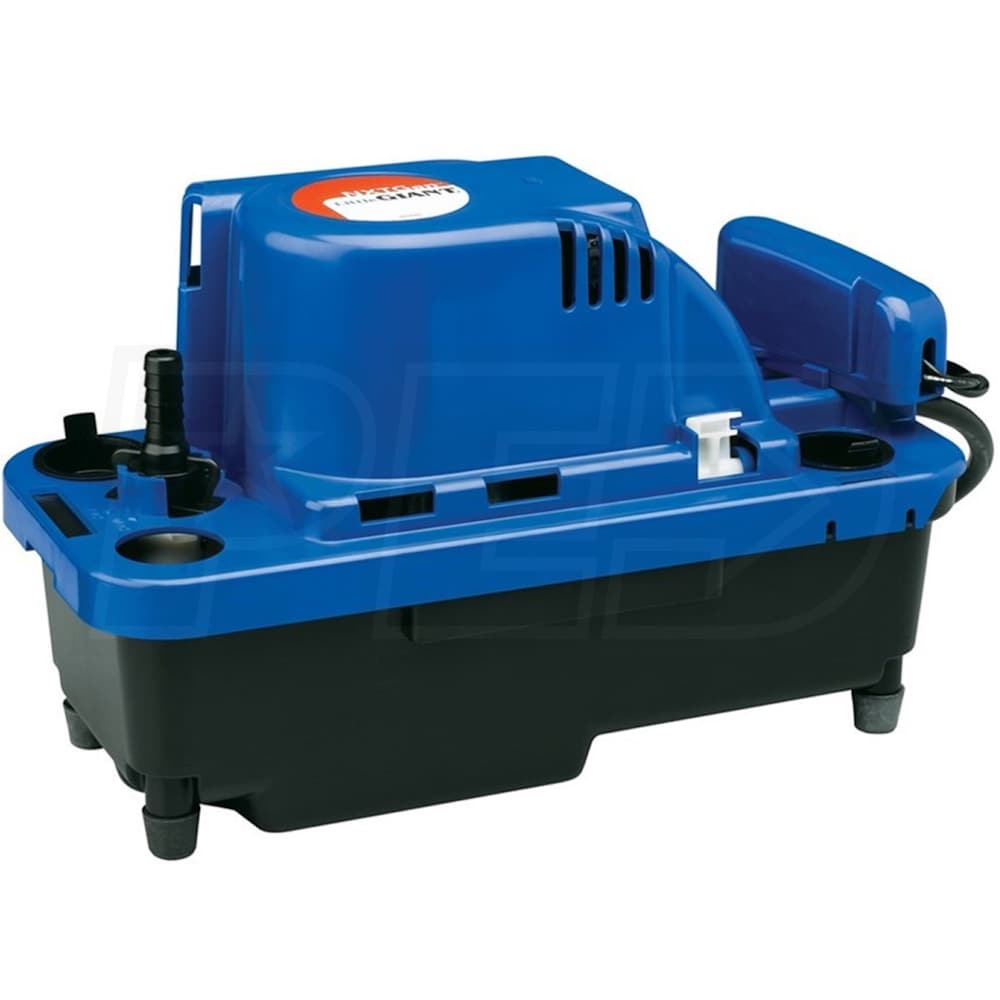

Little Giant VCMX-20ULS - 1.4 GPM NXTGen High Capacity Condensate Removal Pump
Model:
554530
Number of Reviews
(0)
Write A Review
Ask a Question

$72.00
In-Stock
Ships Friday, Mar 31st
Shipping to
60601
Update Shipping Details
Shipping Details
ZIP Code
Update
Expedited Shipping Available - Shipping rates calculated at Checkout.

Learn More
*We currently CANNOT ship this product to Canada or any destination outside of the United States
Available Add-Ons
Local Pickup
# In-Stock
Out of Stock at
Pick Up Location Name
# mi
Pick Up Address
5 Available Nearby
# mi
Change Pickup Location
Learn More About Local Pickup
Ship To Me
Little Giant VCMX-20ULS - 1.4 GPM NXTGen High Capacity Condensate Removal Pump
Model: 554530
Number of Reviews
(0)
Ask a Question
$72.00
Accessories
Features
Specifications
Reviews
Product Q&A
How-To Articles
Manuals
Share
+
Share This Product
Recommended Accessories
+
Expert Recommended Accessories
Selected by Jim, our Expert
Required Accessories
9
These accessories are required to properly setup/install this product.
Add All Required Accessories
Optional Accessories
10
Features
×
Inlet Size
1-1/8 Inch
Style
Condensation
GPM
1.4 Gallons
VCMX-20 Series High Capacity Condensate Removal Pump

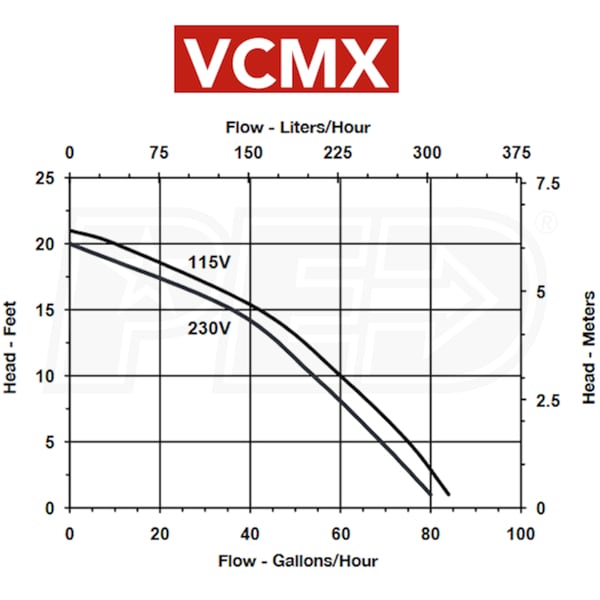

Capable of pumping up to 84 GPH @ 1', 60 GPH @10' (Off @ 21')
Ideal For Air Conditioning, Refrigeration & Dehumidification Applications
Also for high efficiency oil & gas-fired condensing furnaces/boiler equipment
High-Impact ABS Thermoplastic Housing/Motor Cover Volute & Switch Float
Engineered to minimize rust and corrosion in moist environments
Thermally Protected, 1/30 HP High Performance Motor (115V)
Energy efficient at only 1.5A; Improved cooling for longer life
3/8
Makes servicing this pump an easy task
Internal Float Switch For Start & Stop Operation w/ Ext. Test Switch
Vertical centrifugal pump design, for water up to 140F
External, Safety Overflow Switch w/ (2) 5" Switch Lead Wires
Dual function NO & NC operation (Set to NO from factory)
Oil Resistant 1/3 Gallon Tank w/ (3) 1-1/8" Inlets w/ Removable Cap Plug
Suits the needs of a wide variety of residential/HVAC applications
"Quick Install" Wall Mounting Bracket & Rubber Pump Feet
Minimizes noises and vibration during operation
6' Power Cord w/ 3-Prong Plug
2-Year Limited Warranty
California residents see
Prop 65 WARNINGS
Show All Features
×
Warning: This product can expose you to chemicals including Carbon black (airborne, unbound particles of respirable size) which is known to the State of California to cause Cancer.
For more information go to:
www.p65Warnings.ca.gov
Specifications
+
554530
General Information
Product Category
Water Pump
Motor
Voltage
120 Volt
Running Amps
1.5
Pump
Gallons Per Minute
1.4 Gallons
Inlet Diameter
1-1/8 Inch
Outlet Diameter
3/8 Inch
Housing Material
Thermoplastic
Impeller Material
Plastic
Maximum PSI
9.1
Total Head Lift
21 Feet
Submersible
No
Engine
Oil-Cooled
No
Horsepower
0.03 hp
Overview
Product Category
Water Pump
Weight
5 Pounds
Made in USA
No
Consumer Warranty
2 Years
Product Length
10.2 Inches
Product Width
4.8 Inches
Product Height
6.5 Inches
UPC
010121120709
Accessories
Float Switch
Yes
Hose
Sold Separately
