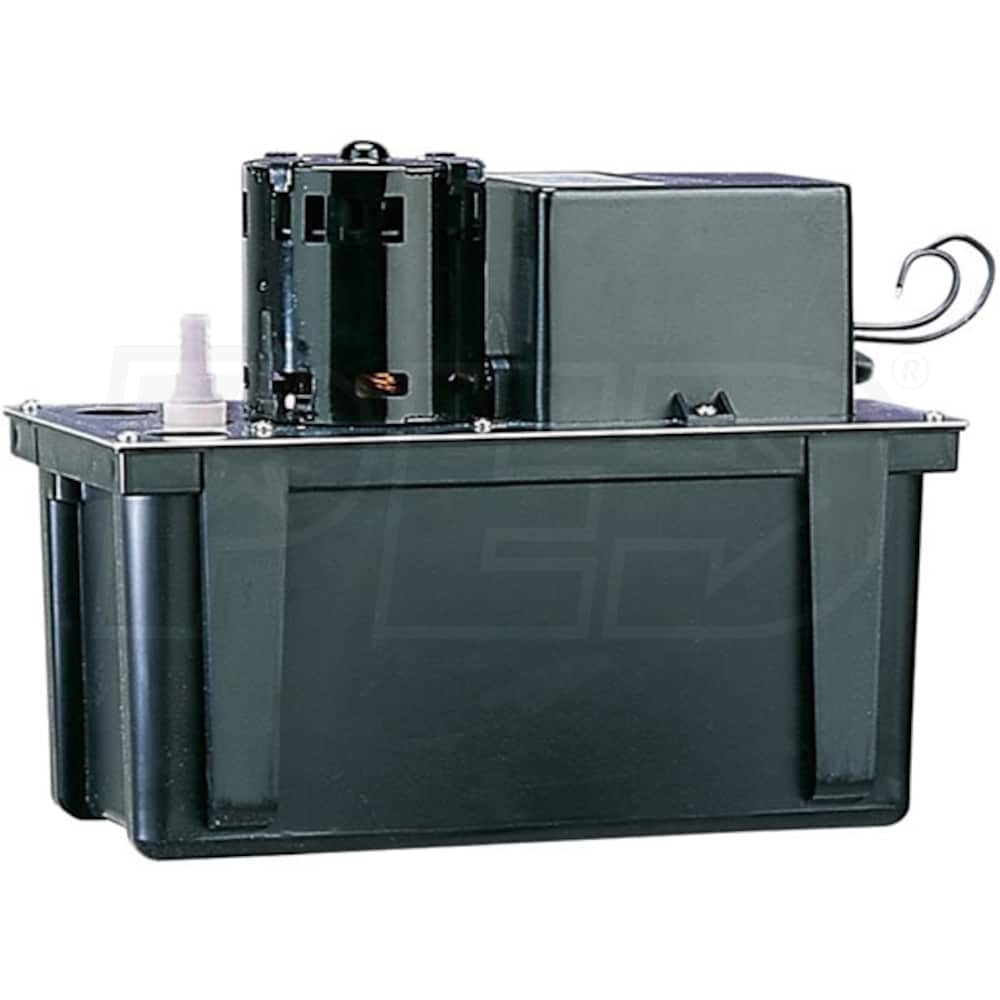

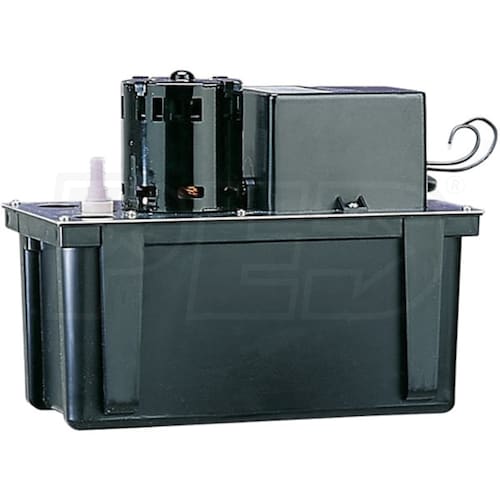

Little Giant VCL-14ULS - 3.3 GPM Thermoplastic Condensate Removal Pump w/ Safety Switch (14' Lift)

Little Giant VCL-14ULS - 3.3 GPM Thermoplastic Condensate Removal Pump w/ Safety Switch (14' Lift)
Model: 553101
$109.99
Ships in 2-5 Business Days
Tax-Free (Except IL)
No Sales Tax* (Except IL)$109.99Buy Now
No Sales Tax* (Except IL)$109.99Visit Site
No Sales Tax* (Except IL)$109.99Visit Site
Ships in 2-5 Business Days
Shipping Info
Shipping Info
*We currently CANNOT ship this product to Canada or any destination outside of the United States
Share
  • Product Description
  • Reviews
  • Product Q&A
  • Recommended Accessories
  • How-To Articles
  • Manuals
Product Description
+

Inlet Size
1-1/8"
Style
Condensation Pumps
GPM
3.3
Gallons
Inlet Size
1-1/8"
Style
Condensation
GPM
3.3 Gallons
Features
Features
  • VCL-14 Series Condensate Removal Pump (1-Gallon Tank)

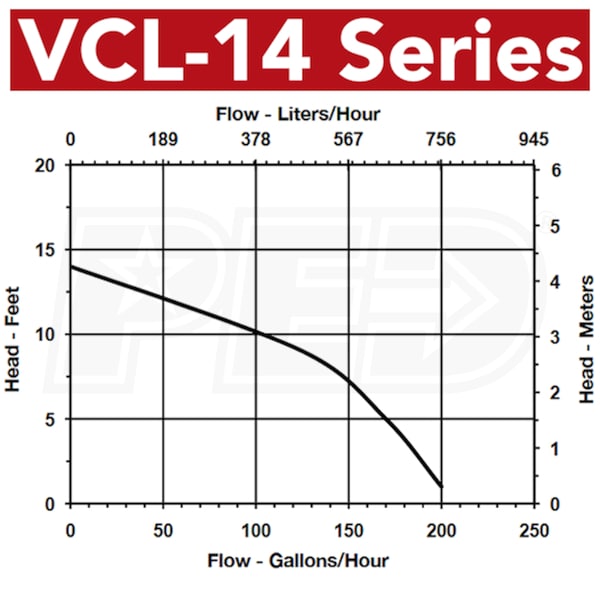

  • Capable of pumping up to 200 GPH @ 1', 170 GPH @9' (Off @ 14')
  • Ideal For Air Conditioning, Refrigeration & Dehumidification Applications
  • Also for high efficiency oil & gas-fired condensing furnaces/boiler equipment
  • High-Impact ABS Thermoplastic Construction
  • Engineered to minimize rust and corrosion in moist environments
  • Thermally Protected, 1/50 HP Fan Cooled Motor (115V)
  • Energy efficient at only 1.0A; Improved cooling for longer life
  • 1/4" x 3/8
  • Makes it easy to connect to existing drain tube
  • Solid Polymer Float Switch For Start & Stop Operation
  • Vertical centrifugal pump design, for water up to 120F
  • Safety Overflow Switch w/ (2) 5" Switch Lead Wires
  • Dual function NO & NC operation (Set to NO from factory)
  • 1-Gallon Tank w/ (2) 1-1/8" Inlets
  • Suits the needs of a wide variety of residential/HVAC applications
  • Stainless Steel Motor Shaft & Galvanized Steel Tank Cover
  • Sturdy design provides piece of mind for reliable operation
  • 6' Power Cord w/ 3-Prong Plug
  • 2-Year Limited Warranty
Specifications
Motor
Voltage
120 Volt
Running Amps
1
Engine
Oil-Cooled
No
Horsepower
0.02 hp
Pump
Gallons Per Minute
3.3 Gallons
Inlet Diameter
1-1/8"
Outlet Diameter
3/8"
Housing Material
Thermoplastic
Impeller Material
Plastic
Total Head Lift
14 Feet
Maximum PSI
6.1
Submersible
No
Accessories
Float Switch
Yes
Hose
Sold Separately
Overview
Made in USA
No
Weight
7 Pounds
Product Length
12.11 Inches
Product Width
6 Inches
Product Height
9.46 Inches
Consumer Warranty
1 Year
UPC
010121531017

Inlet Size
1-1/8"
Style
Condensation Pumps
GPM
3.3
Gallons
Inlet Size
1-1/8"
Style
Condensation
GPM
3.3 Gallons
Features
Features
  • VCL-14 Series Condensate Removal Pump (1-Gallon Tank)
  • Capable of pumping up to 200 GPH @ 1', 170 GPH @9' (Off @ 14')
  • Ideal For Air Conditioning, Refrigeration & Dehumidification Applications
  • Also for high efficiency oil & gas-fired condensing furnaces/boiler equipment
  • High-Impact ABS Thermoplastic Construction
  • Engineered to minimize rust and corrosion in moist environments
  • Thermally Protected, 1/50 HP Fan Cooled Motor (115V)
  • Energy efficient at only 1.0A; Improved cooling for longer life
  • 1/4" x 3/8
  • Makes it easy to connect to existing drain tube
  • Solid Polymer Float Switch For Start & Stop Operation
  • Vertical centrifugal pump design, for water up to 120F
  • Safety Overflow Switch w/ (2) 5" Switch Lead Wires
  • Dual function NO & NC operation (Set to NO from factory)
  • 1-Gallon Tank w/ (2) 1-1/8" Inlets
  • Suits the needs of a wide variety of residential/HVAC applications
  • Stainless Steel Motor Shaft & Galvanized Steel Tank Cover
  • Sturdy design provides piece of mind for reliable operation
  • 6' Power Cord w/ 3-Prong Plug
  • 2-Year Limited Warranty
Specifications
Motor
Voltage
120 Volt
Running Amps
1
Engine
Oil-Cooled
No
Horsepower
0.02 hp
Pump
Gallons Per Minute
3.3 Gallons
Inlet Diameter
1-1/8"
Outlet Diameter
3/8"
Housing Material
Thermoplastic
Impeller Material
Plastic
Total Head Lift
14 Feet
Maximum PSI
6.1
Submersible
No
Accessories
Float Switch
Yes
Hose
Sold Separately
Overview
Made in USA
No
Weight
7 Pounds
Product Length
12.11 Inches
Product Width
6 Inches
Product Height
9.46 Inches
Consumer Warranty
1 Year
UPC
010121531017
Product Specs
+
Specifications
Motor
Voltage
120 Volt
Running Amps
1
Engine
Oil-Cooled
No
Horsepower
0.02 hp
Pump
Gallons Per Minute
3.3 Gallons
Inlet Diameter
1-1/8"
Outlet Diameter
3/8"
Housing Material
Thermoplastic
Impeller Material
Plastic
Total Head Lift
14 Feet
Maximum PSI
6.1
Submersible
No
Accessories
Float Switch
Yes
Hose
Sold Separately
Overview
Made in USA
No
Weight
7 Pounds
Product Length
12.11 Inches
Product Width
6 Inches
Product Height
9.46 Inches
Consumer Warranty
1 Year
UPC
010121531017
