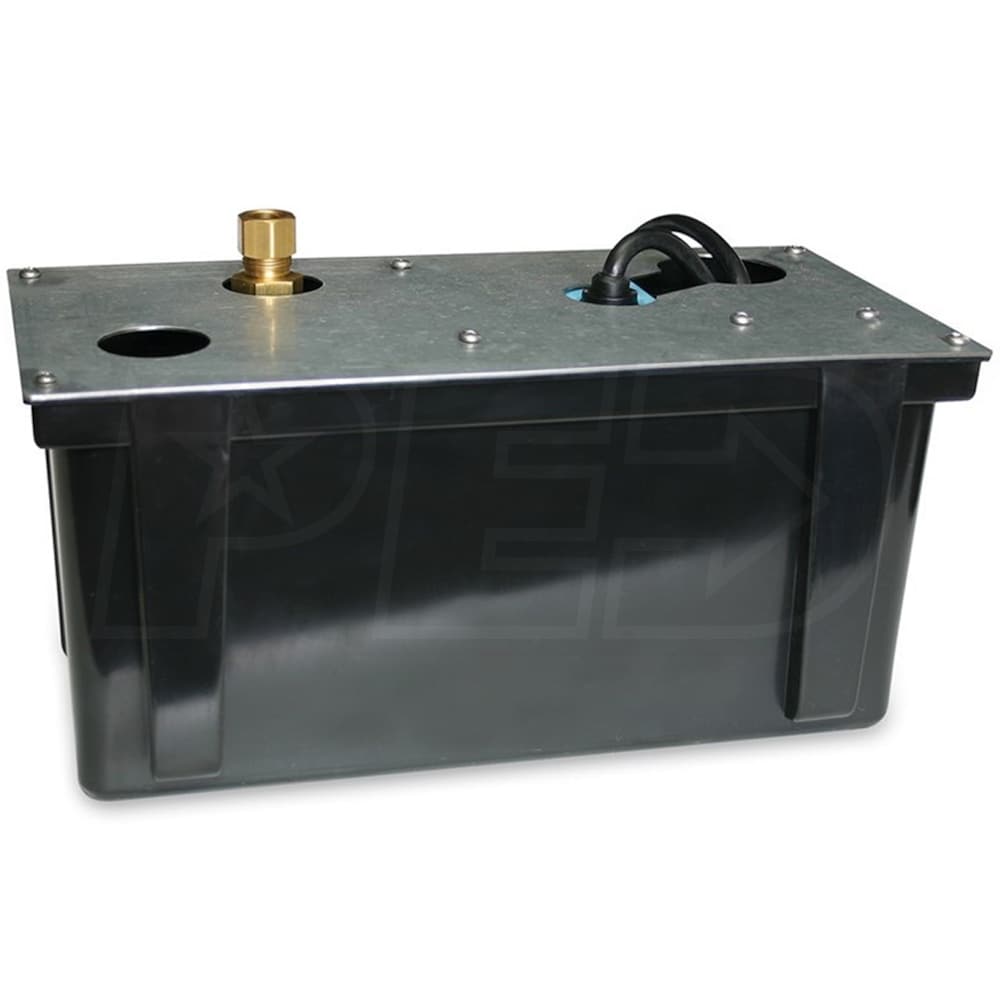

Little Giant 3-ABS - 5.1 GPM Condensate Pump w/ Integrated Float Switch (26' Lift)
Model:
551320
+
Share This Product
Recommended Accessories
Expert Recommended Accessories
Selected by Jim, our Expert
Required Accessories
9
These accessories are required to properly setup/install this product.
Optional Accessories
10
Features
Inlet Size
1-1/8 Inch
Style
Condensation
GPM
5.1 Gallons
- 3-ABS Series Condensate Removal Pump w/ Integrated Float Switch
- Self-Contained, high-volume, high head design
- Ideal For Air Conditioning, Refrigeration & Dehumidification Applications
- Shallow-pan tank is only 5.68" tall (6.5" Tall w/ discharge fitting)
- 1/12 HP High Performance Motor (115V)
- Oil-filled and hermetically sealed to prevent overheating
- Epoxy-Coated Cast Aluminum Pump Housing & Steel Tank Cover
- Combined with a 1-gallon ABS tank makes this one robust pump
- 1/2" MNPT Dscharge w/ Brass Check Valve
- Compression fitting for 1/2" OD copper or rigid plastic tubing
- Integrated Unique Float Switch For Reliable Automatic Operation
- Turns On @ 4.5" & Off @ 3.5" and provides switch security
- Nylon Volute & Impeller, Stainless Steel Shaft
- No cast iron parts to rust or corrode, makes this pump last
- Removable Float Housing & Inlet Filter Screen
- Allows this pump to be or cleared of debris to extend pump life
- 9-Foot Power Cord w/ Molded Plug
- Makes this pump easy to install, plug & play, no hardwiring required
- 1-Year Limited Warranty
California residents see
Warning: This product can expose you to chemicals including Carbon black (airborne, unbound particles of respirable size) which is known to the State of California to cause Cancer.
For more information go to: www.p65Warnings.ca.gov
Specifications
551320
General Information
Product Category
Water Pump
Motor
Voltage
120 Volt
Running Amps
3.5
Pump
Gallons Per Minute
5.1 Gallons
Inlet Diameter
1-1/8 Inch
Outlet Diameter
1/2 Inch
Housing Material
Aluminum
Impeller Material
Nylon
Maximum PSI
9.1
Total Head Lift
26 Feet
Submersible
No
Engine
Oil-Cooled
Yes
Horsepower
0.08 hp
Overview
Product Category
Water Pump
Weight
12 Pounds
Made in USA
No
Consumer Warranty
2 Years
Product Length
12.3 Inches
Product Width
6 Inches
Product Height
6.5 Inches
UPC
010121120013
Accessories
Float Switch
Yes
Hose
