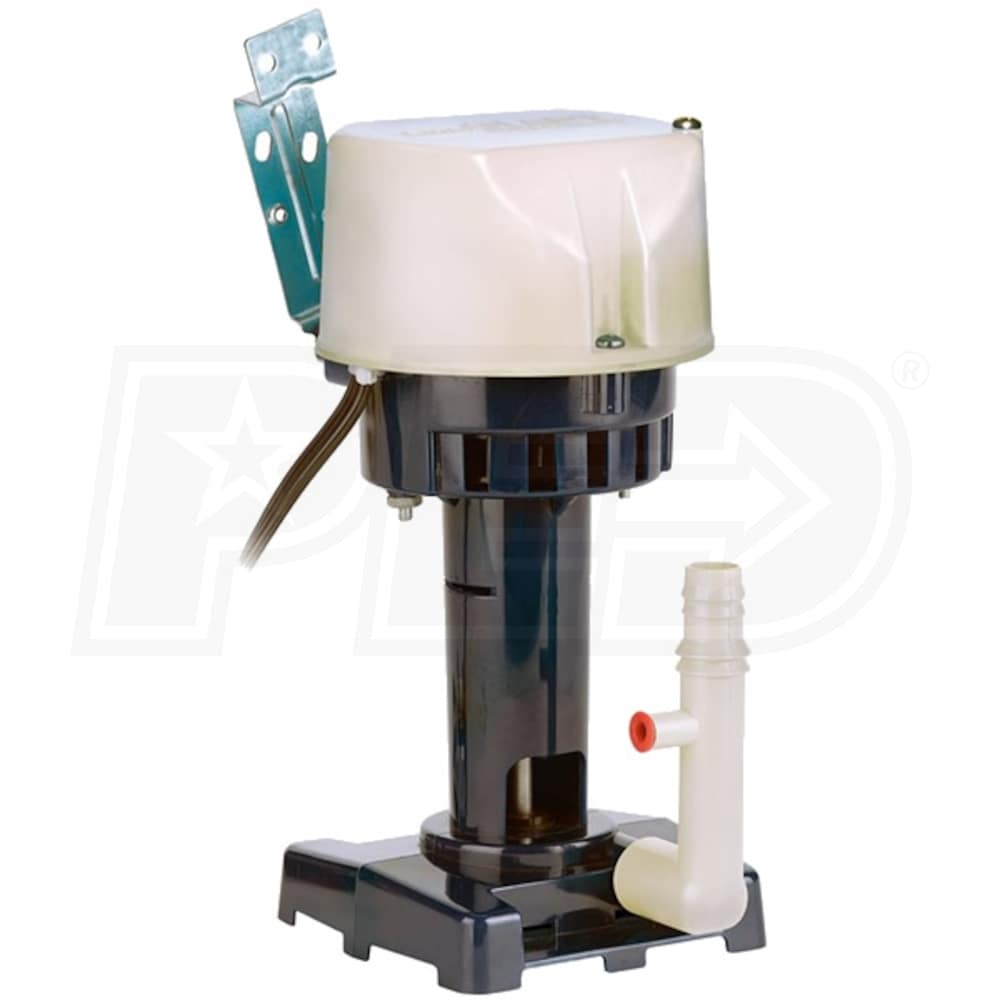

Little Giant CP1-115 - 5.1 GPM 1/70 HP Evaporative Cooler Pump (9.5' Lift)
Model: 540005
+
Share This Product
-
Product Description
-
Reviews
-
Product Q&A
-
Recommended Accessories
-
How-To Articles
-
Manuals
Product Description
+−
Features
Features
- Little Giant CP Series Evaporative Cooler Pump
- Replacement unit for OEM equipment (5,000
- Multi-Application Use
- Evaporative coolers, sales displays, laboratories & water bath circulation
- Heavy-Duty 1/70 HP Dual-Copper Coil, Concentric Fan-Cooled Motor
- Thermally protected and Moisture proof winding for longevity
- Flame Retardant Thermal Plastic Housing Motor Cover & Volute
- Minimizes corrosion compared to metal body pumps
- Low Level Pump Down & Recovery
- Allows this pump to prime fast and get the water pumping
- 3-Way Universal Mounting Configuration
- Top/Motor cap, Column (existing bracket) or Side Mounting w/ bracket (included)
- 90
- Works with the most common discharge sizes in the industry
- Oversized Sleeve Bearings & Corrosion Resistant Steel Shaft
- Robust engineering for demanding HVAC applications
- Removable Base Plate, Inlet Screen & Discharge Adapter
- Makes this pump easy to install, clean and service
- 4-Foot Power Cord - Liquid Temps Up to 120F
- 1 Year Warranty
Specifications
Motor
Voltage
120 Volt
Running Amps
0.8
Pump
Gallons Per Minute
5.1 Gallons
Outlet Diameter
1/2"
Housing Material
Thermoplastic
Impeller Material
Nylon
Maximum PSI
4.1
Total Head Lift
9.5 Feet
Submersible
No
Engine
Oil-Cooled
No
Overview
Weight
3 Pounds
Consumer Warranty
1 Year
Product Length
4.25 Inches
Product Width
4.25 Inches
Product Height
8.95 Inches
UPC
010121400054
