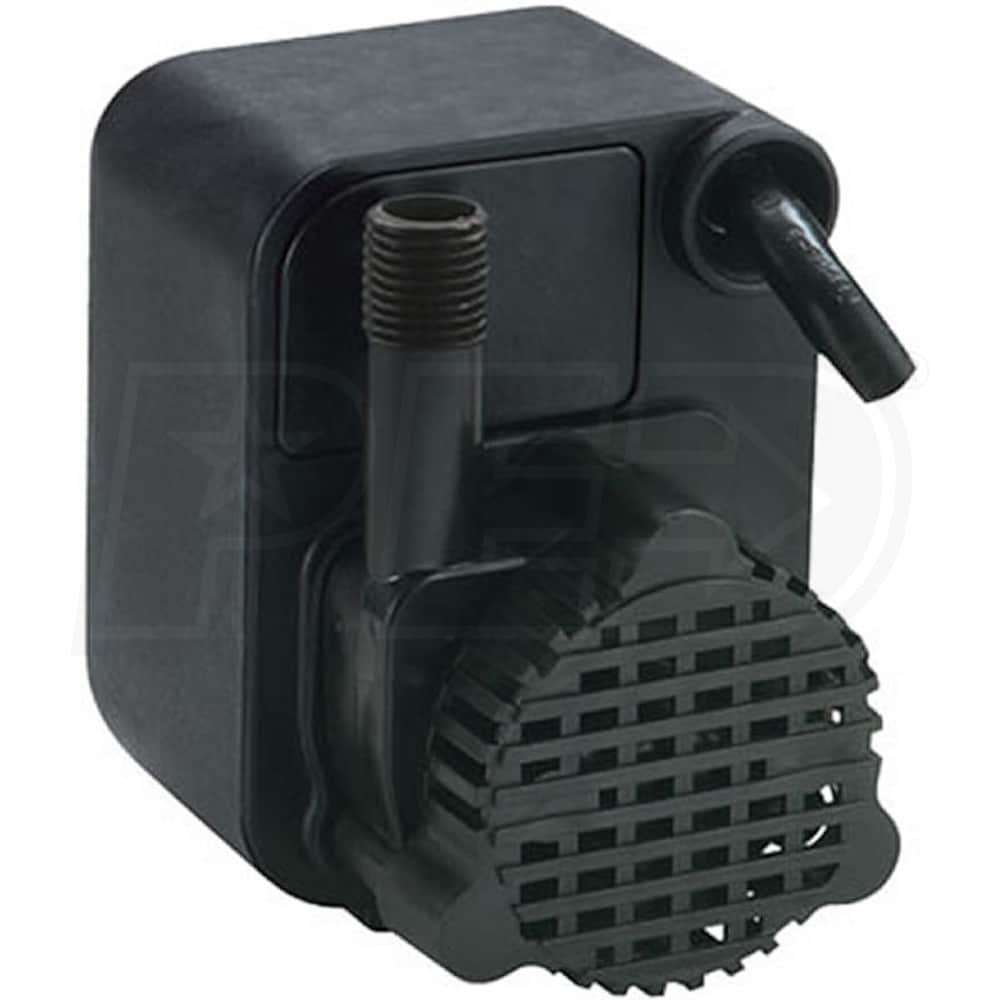

Little Giant PE-1 - 2.8 GPM 1/125 HP Submersible Epoxy Encapsulated Pump
Model: 518200
+
Share This Product
-
Product Description
-
3Reviews
-
Product Q&A
-
Recommended Accessories
-
How-To Articles
-
Manuals
Product Description
+−
Inlet Size
N/A
Style

GPM
2.8
Gallons
Inlet Size
N/A
Style
Utility
GPM
2.8 Gallons
Features
Features
- PE-1 Series Epoxy Encapsulated Direct Drive Pump
- For submersible use in water transfer, recirculation & displays
- Designed for commercial, industrial, and home use
- 1/125 HP Epoxy Encapsulated Direct Drive Motor
- Designed for continous duty, submerisble use only
- Polyester Housing
- Polypropylene Volute
- Nitrile Shaft Seal
- Snap Off Screen Covers Intake
- UL & CSA Listed
- Additional Specs:
- Capacity: 170 GPH @ 1'
- Shut Off: 7'
- Liquid Temprature: Up to 120°F
- Discharge: 1/4" MNPT (accepts 1/2" I.D. tubing)
- Intake: Smooth Sump w/ Screen
- Impeller: Polypropylene
- Cord: 6'
Specifications
Motor
Voltage
120 Volt
Running Amps
0.6
Power Cord Length
6 Feet
Pump
Gallons Per Minute
2.8 Gallons
Outlet Diameter
1/4"
Housing Material
Thermoplastic
Impeller Material
Plastic
Handles Solids
No
Maximum PSI
3
Total Head Lift
7 Feet
Submersible
Yes
Engine
Continuous Operation
Yes
Oil-Cooled
Yes
Overview
Weight
3 Pounds
Consumer Warranty
1 Year
Product Length
3.6 Inches
Product Width
2.8 Inches
Product Height
3.5 Inches
UPC
010121182004
Inlet Size
N/A
Style

GPM
2.8
Gallons
Inlet Size
N/A
Style
Utility
GPM
2.8 Gallons
Features
Features
- PE-1 Series Epoxy Encapsulated Direct Drive Pump
- For submersible use in water transfer, recirculation & displays
- Designed for commercial, industrial, and home use
- 1/125 HP Epoxy Encapsulated Direct Drive Motor
- Designed for continous duty, submerisble use only
- Polyester Housing
- Polypropylene Volute
- Nitrile Shaft Seal
- Snap Off Screen Covers Intake
- UL & CSA Listed
- Additional Specs:
- Capacity: 170 GPH @ 1'
- Shut Off: 7'
- Liquid Temprature: Up to 120°F
- Discharge: 1/4" MNPT (accepts 1/2" I.D. tubing)
- Intake: Smooth Sump w/ Screen
- Impeller: Polypropylene
- Cord: 6'
Specifications
Motor
Voltage
120 Volt
Running Amps
0.6
Power Cord Length
6 Feet
Pump
Gallons Per Minute
2.8 Gallons
Outlet Diameter
1/4"
Housing Material
Thermoplastic
Impeller Material
Plastic
Handles Solids
No
Maximum PSI
3
Total Head Lift
7 Feet
Submersible
Yes
Engine
Continuous Operation
Yes
Oil-Cooled
Yes
Overview
Weight
3 Pounds
Consumer Warranty
1 Year
Product Length
3.6 Inches
Product Width
2.8 Inches
Product Height
3.5 Inches
UPC
010121182004
Product Specs
+−
Specifications
Motor
Voltage
120 Volt
Running Amps
0.6
Power Cord Length
6 Feet
Pump
Gallons Per Minute
2.8 Gallons
Outlet Diameter
1/4"
Housing Material
Thermoplastic
Impeller Material
Plastic
Handles Solids
No
Maximum PSI
3
Total Head Lift
7 Feet
Submersible
Yes
Engine
Continuous Operation
Yes
Oil-Cooled
Yes
Overview
Weight
3 Pounds
Consumer Warranty
1 Year
Product Length
3.6 Inches
Product Width
2.8 Inches
Product Height
3.5 Inches
UPC
010121182004
