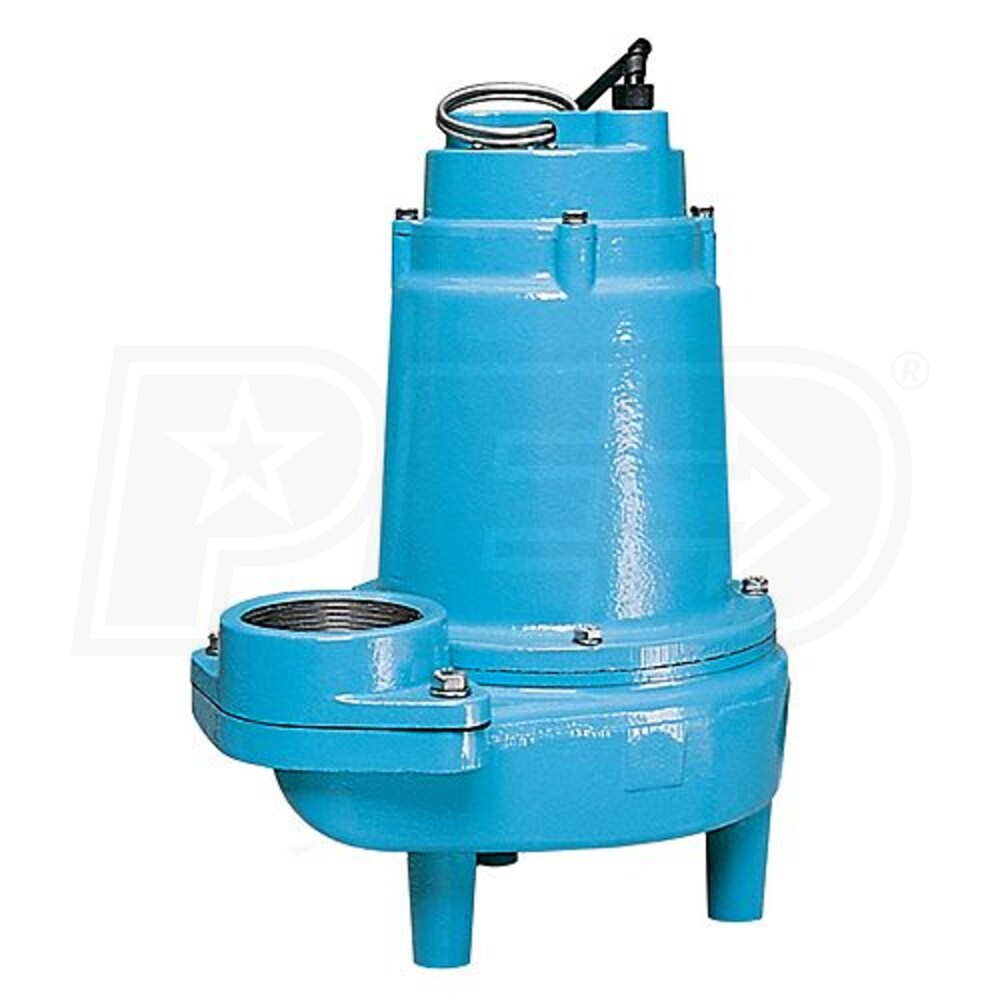

Little Giant 16S-CIM - 1 HP Cast Iron Sewage Pump (3") w/ 20' Cord (Non-Automatic) (200-208V 3-Phase)

Model:

514750

Write A Review
$1,107.96
Free Shipping
  Learn More About Free Freight
Free Shipping
*This product qualifies for Free Shipping anywhere in the contiguous US. Accessories may ship separately. Items over 100lbs shipped via semi-truck, be sure to select "Lift Gate" to lower the product to the ground curbside. Remote area surcharges may apply, see our full shipping policy for more details.
Factory-Direct
Ships in 2-5 Business Days

Little Giant 16S-CIM - 1 HP Cast Iron Sewage Pump (3
Little Giant 16S-CIM - 1 HP Cast Iron Sewage Pump (3") w/ 20' Cord (Non-Automatic) (200-208V 3-Phase)
Model: 514750
$1,107.96
Features
Specifications
Reviews
Product Q&A
How-To Articles
Manuals
Share

Features

Style

Sewage Pump

GPH

96000 Gallons

Switch Type

  • ***NON-AUTOMATIC - Requires Float Switch or Controller***
  • Little Giant 16S-CIM - 1 HP Sewage Pump (200-280V 3-Phase)
  • For use in residential, commercial, industrial and agricultural applications
  • Ideal for light to medium transfer demands
  • Epoxy Powder Coated Cast Iron Construction
  • Provides excellent corrosion-resistance & durability
  • Heavy-Duty 1 HP Three-Phase Motor
  • Energy saving design w/ low amp draw (6.3-Amps full load)
  • Cooler running motor which extends the life of the pump
  • 3" FNPT Threaded Discharge
  • Easily connect to your existing discharge without any changes
  • Epoxy Coated Cast Iron Volute w/ Vortex Style Cast Iron Impeller
  • Non-clogging design passes up to 2" spherical solids
  • Nitrile Mechanical Shaft Seal w/ Carbon & Ceramic Faces
  • Assures maximum protection is harsh wastewater conditions
  • 420 Stainless Steel Shaft w/ Upper/Lower Ball Bearings
  • Minimizes friction while providing smooth & quiet operation
  • 20' STW Power Cord
  • 35' Max Shutoff Head
  • 3-Year Limited Warranty
California residents see
Warning: This product can expose you to chemicals including Carbon black (airborne, unbound particles of respirable size) which is known to the State of California to cause Cancer.
For more information go to: www.p65Warnings.ca.gov

Specifications

514750
specs product image PID-89719
General Information
Product Category
Sump Pump
Base
Base Material
Cast Iron
Min Sump Basin Size
18 Inch
Motor
Voltage
200-208V 3-Phase
Running Amps
6.3
Thermal Protection
Yes
Power Cord Length
20 Feet
Pump
Housing Material
Cast Iron
Impeller Material
Cast Iron
Solids Handling Size
2 inch
Handles Solids
Yes
GPH @ 0 feet
96000
GPH @ 5 feet
96000
GPH @ 10 feet
96000
GPH @ 15 feet
7800
GPH @ 20 feet
6000
Discharge Port Size
3 Inch
Max Head
35 Feet
Engine
Continuous Operation
Yes
Horsepower
1 hp
Overview
Product Category
Sump Pump
Weight
88 Pounds
Product Length
14.07 Inches
Product Width
9.89 Inches
Product Height
17.18 Inches
UPC
010121147508
