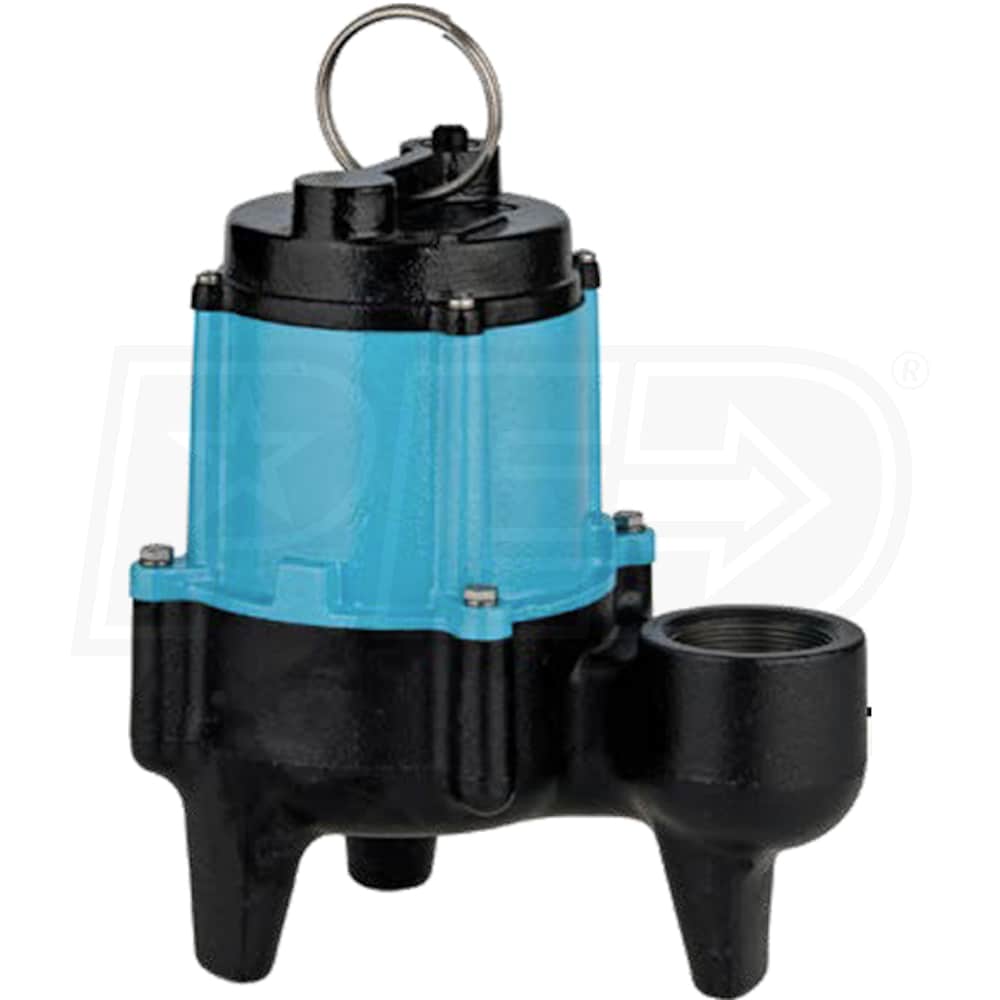

Little Giant 10SC-CIM 115V - 1/2 HP Cast Iron Sewage Pump (3") (20' Cord) (Non-Automatic)

Model:

511435

Write A Review
$397.00
Free Shipping
  Learn More About Free Freight
Free Shipping
*This product qualifies for Free Shipping anywhere in the contiguous US. Accessories may ship separately. Items over 100lbs shipped via semi-truck, be sure to select "Lift Gate" to lower the product to the ground curbside. Remote area surcharges may apply, see our full shipping policy for more details.
Factory-Direct
Ships in 16-20 Weeks

Little Giant 10SC-CIM 115V - 1/2 HP Cast Iron Sewage Pump (3
Little Giant 10SC-CIM 115V - 1/2 HP Cast Iron Sewage Pump (3") (20' Cord) (Non-Automatic)
Model: 511435
$397.00
Accessories
Features
Specifications
Reviews
Product Q&A
How-To Articles
Manuals
Share

Recommended Accessories

Power Equipment Direct expert image
Expert Recommended Accessories Selected by Jim, our Expert
Required Accessories 9
These accessories are required to properly setup/install this product.
Optional Accessories 10

Features

Style

Sewage Pump

GPH

7800 Gallons

Switch Type

None

  • *Non-Automatic - Requires Float Switch or Controller*
  • Upper sintered and lower ball bearings
  • Non-clog thermoplastic Elastomer impeller
  • Continuous Duty Rated Automatic Submersible Sewage Pump
  • Handles 2" solids
  • Designed for the tough demanding tasks for wastewater removal
  • Epoxy coated cast iron housing and volute
  • Epoxy Coated Cast Iron Housing w/ 3" Discharge
  • Designed for continuous duty
  • Minimizes rust & corrosion to extend overall pump life
  • 2" FNPT discharge;Nitrile with carbon and ceramic faces
  • 1/2 HP PSC Motor w/ Thermal Overload Protection
  • Energy saving design w/ low amp draw (11-Amps full load)
  • 1 / 2 HP PSC motor with overload protection
  • Our SKU number(s): Little Giant 511323
  • Cooler running motor which extends the life of the pump
  • The manufacturer model number(s): Little Giant 511323
  • Epoxy Coated Cast Iron Volute w/ Vortex Style Thermoplastic Impeller
  • Non-clogging design passes up to 2" spherical solids
  • Nitrile Mechanical Shaft Seal w/ Carbon & Ceramic Faces
  • Assures maximum protection is harsh wastewater conditions
  • Upper Sintered Sleeve Bearings & Lower Ball Bearings
  • Minimizes friction while providing smooth & quiet operation
  • Stainless Steel Screws, Bolts & Handle
  • Never worry about sheet metal parts that rust or corrode
  • 20-Foot SJTW Power Cord
  • 25' Max Shutoff Head
  • 2-Year Limited Warranty
California residents see
Warning: This product can expose you to chemicals including Carbon black (airborne, unbound particles of respirable size) which is known to the State of California to cause Cancer.
For more information go to: www.p65Warnings.ca.gov

Specifications

511435
specs product image PID-109627
General Information
Product Category
Sump Pump
Base
Base Material
Cast Iron
Motor
Voltage
120 Volt
Running Amps
11
Thermal Protection
Yes
Power Cord Length
20 Feet
Oil Free Motor
No
Pump
Housing Material
Cast Iron
Impeller Material
Plastic
Solids Handling Size
2 inch
Handles Solids
Yes
Float Type
No Switch

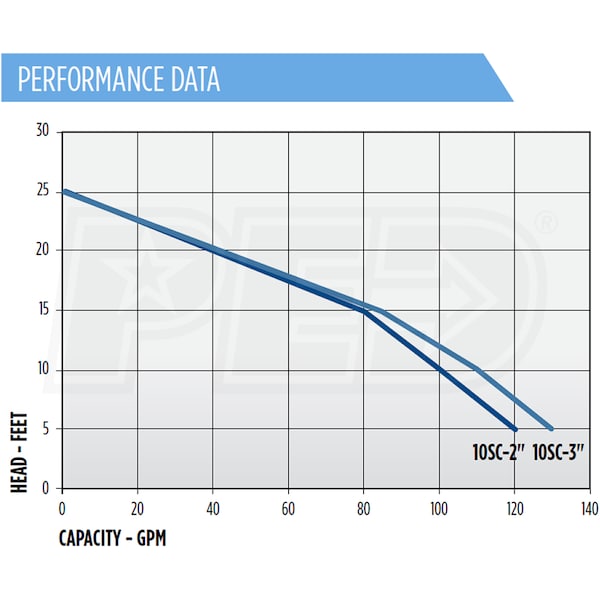

GPH @ 0 feet
7800
GPH @ 5 feet
7800
GPH @ 10 feet
6600
GPH @ 15 feet
5100
Discharge Port Size
3 Inch
Max Head
25 Feet
Engine
Horsepower
.5 hp
Overview
Product Category
Sump Pump
Weight
36.5 Pounds
Product Length
10.4 Inches
Product Width
8.6 Inches
Product Height
14 Inches
UPC
010121002937
