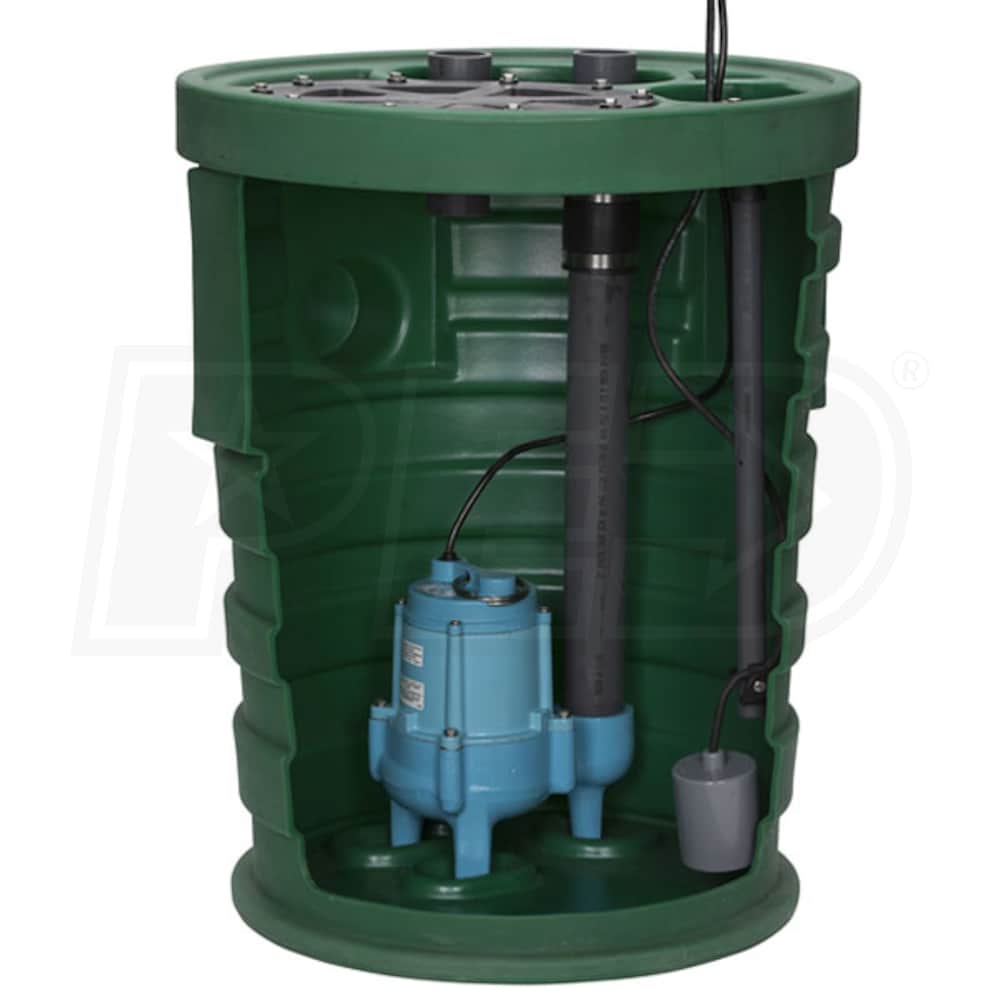

Little Giant 9JF2V2D - Pit Plus® Jr. 4/10 HP Premium Simplex Sewage System w/ Tether Float Switch (2" Vent, 2" Discharge)

Little Giant 9JF2V2D - Pit Plus® Jr. 4/10 HP Premium Simplex Sewage System w/ Tether Float Switch (2" Vent, 2" Discharge)
Model: 509673
$509.00
Factory-Direct
Ships in 2-5 Business Days
Factory items ship direct from the manufacturer.
Shipping times vary.
Free Shipping
Free ShippingNo Sales Tax* (Except IL)$509.00Buy Now
Free FreightNo Sales Tax* (Except IL)$509.00Visit Site
No Sales Tax* (Except IL)$509.00Visit Site
Factory-Direct
Ships in 2-5 Business Days
Free Freight
Free Freight
*We currently CANNOT ship this product to Canada or any destination outside of the United States
Share
  • Product Description
  • 1
    Reviews
  • 1
    Product Q&A
  • Recommended Accessories
  • How-To Articles
  • Manuals
Product Description
+
Style
Sewage Pumps
GPH
6600
Gallons
Switch Type
Tether Float Switch
Style
Sewage Pump
GPH
6600 Gallons
Switch Type
Tether
Features
Features
  • Pit+Plus« Jr. Premium Simplex Systems
  • Most advanced and contractor-friendly sewage basin in the industry
  • Separate Pump And Switch Access Cover
  • Access the pump and/or switch independently
  • No disruption to the plumbing connections
  • Saves time, money, and mess
  • Easy Installation w/ All Materials Included
  • Molded inlet hub, torque stops, 360░ molded handle,
  • Integrated anti-flotation collar, stainless steel fasteners
  • 4-Inch intake grommet
  • 24" x 24" Basin w/ Functional & Asthetic Finished Cover
  • 2" discharge, 2" vent recessed location
  • Independent recessed switch module and pump access cover
  • Switch cord grips and locators for directional control
  • Little Giant 9SN-CIM Sewage Pump
  • 4/10 HP - PSC motor with thermal overload protection
  • Cast iron pump housing with protective epoxy coating
  • Check Valve Sold Separately
Specifications
Base
Base Material
Cast Iron
Motor
Voltage
120 Volt
Running Amps
8.5
Pump
Outlet Diameter
2"
Solids Handling Size
2 inch
Handles Solids
Yes
Total Head Lift
20 Feet
Maximum PSI
8.7
Float Type
Tether Switch
GPH @ 0 feet
6600
GPH @ 5 feet
6600
GPH @ 10 feet
4200
GPH @ 15 feet
1800
Built-in check Valve
No
Float On
9-14
Float Off
2-6
Engine
Horsepower
.4 hp
Overview
Assembly Required
No
Product Length
24 Inches
Product Width
24 Inches
Product Height
24 Inches
Consumer Warranty
2 Years
UPC
010121147584
Style
Sewage Pumps
GPH
6600
Gallons
Switch Type
Tether Float Switch
Style
Sewage Pump
GPH
6600 Gallons
Switch Type
Tether
Features
Features
  • Pit+Plus« Jr. Premium Simplex Systems
  • Most advanced and contractor-friendly sewage basin in the industry
  • Separate Pump And Switch Access Cover
  • Access the pump and/or switch independently
  • No disruption to the plumbing connections
  • Saves time, money, and mess
  • Easy Installation w/ All Materials Included
  • Molded inlet hub, torque stops, 360░ molded handle,
  • Integrated anti-flotation collar, stainless steel fasteners
  • 4-Inch intake grommet
  • 24" x 24" Basin w/ Functional & Asthetic Finished Cover
  • 2" discharge, 2" vent recessed location
  • Independent recessed switch module and pump access cover
  • Switch cord grips and locators for directional control
  • Little Giant 9SN-CIM Sewage Pump
  • 4/10 HP - PSC motor with thermal overload protection
  • Cast iron pump housing with protective epoxy coating
  • Check Valve Sold Separately
Specifications
Base
Base Material
Cast Iron
Motor
Voltage
120 Volt
Running Amps
8.5
Pump
Outlet Diameter
2"
Solids Handling Size
2 inch
Handles Solids
Yes
Total Head Lift
20 Feet
Maximum PSI
8.7
Float Type
Tether Switch
GPH @ 0 feet
6600
GPH @ 5 feet
6600
GPH @ 10 feet
4200
GPH @ 15 feet
1800
Built-in check Valve
No
Float On
9-14
Float Off
2-6
Engine
Horsepower
.4 hp
Overview
Assembly Required
No
Product Length
24 Inches
Product Width
24 Inches
Product Height
24 Inches
Consumer Warranty
2 Years
UPC
010121147584
Product Specs
+
Specifications
Base
Base Material
Cast Iron
Motor
Voltage
120 Volt
Running Amps
8.5
Pump
Outlet Diameter
2"
Solids Handling Size
2 inch
Handles Solids
Yes
Total Head Lift
20 Feet
Maximum PSI
8.7
Float Type
Tether Switch
GPH @ 0 feet
6600
GPH @ 5 feet
6600
GPH @ 10 feet
4200
GPH @ 15 feet
1800
Built-in check Valve
No
Float On
9-14
Float Off
2-6
Engine
Horsepower
.4 hp
Overview
Assembly Required
No
Product Length
24 Inches
Product Width
24 Inches
Product Height
24 Inches
Consumer Warranty
2 Years
UPC
010121147584
Reviews
(1)
+
Little Giant 509673 Reviews & Ratings
Product Q&A
(1)
+
Search Product Q&A's Answered by Jim, the Sump Pump Expert
icon-social-fb1
+
Does the pump come with power cord?
Raymond
from Texas
April 24, 2017
Answer
Yes it does Raymond! That power cord is 20 feet in length but since the basin is 2 feet tall, it's basically an 18 foot power cord.
