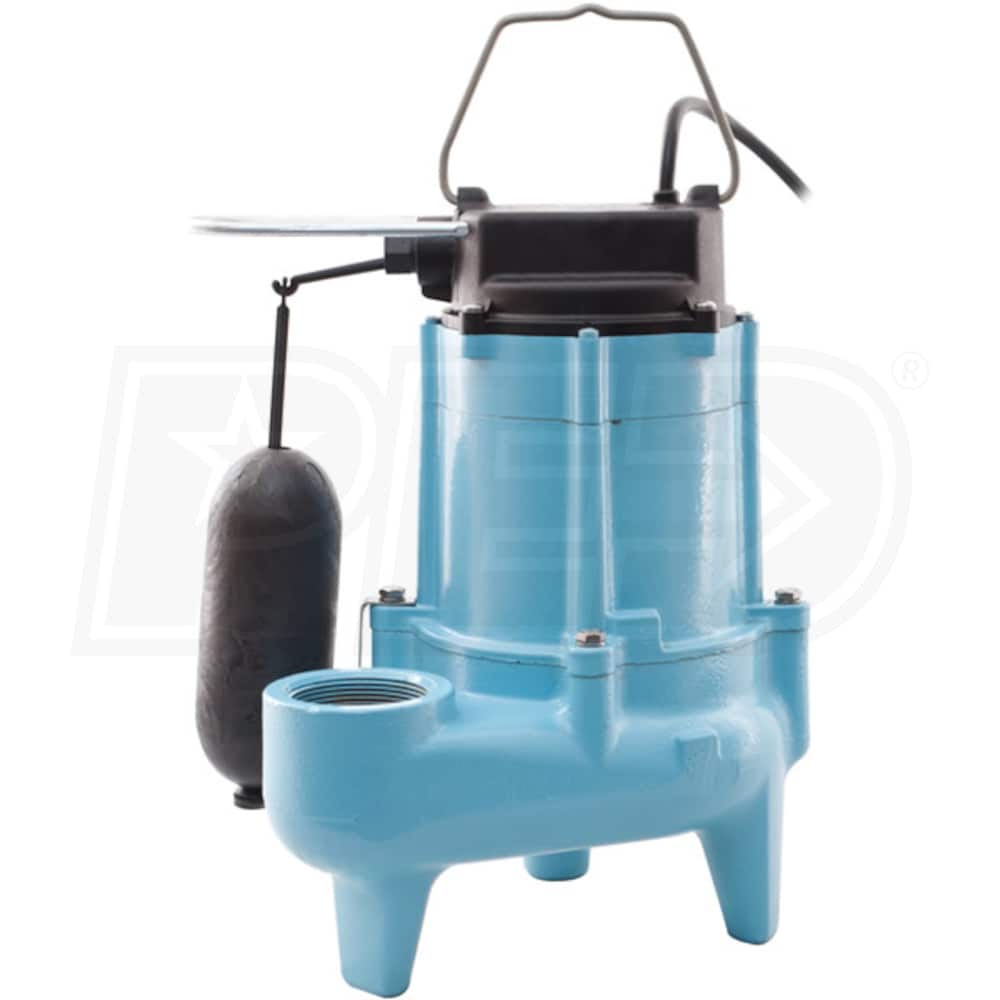

Little Giant 9SN-CIA-SFS - 4/10 HP Cast Iron Sewage Pump (2") w/ Vertical Float (20' Cord)

Model:

509228

Write A Review
Product Discontinued
Sorry, this product is no longer available.
Try this product instead
Little Giant 9SN-CIA-SFS - 4/10 HP Cast Iron Sewage Pump (2
Little Giant 9SN-CIA-SFS - 4/10 HP Cast Iron Sewage Pump (2") w/ Vertical Float (20' Cord)
Model: 509228
Product Discontinued
Accessories
Features
Specifications
Reviews
How-To Articles
Manuals
Share

Recommended Accessories

Power Equipment Direct expert image
Expert Recommended Accessories Selected by Jim, our Expert
Required Accessories 9
These accessories are required to properly setup/install this product.
Optional Accessories 10

Features

Style

Sewage Pump

GPH

6600 Gallons

Switch Type

Vertical

  • Continuous Duty Rated Automatic Submersible Sewage Pump
  • Designed for the tough demanding tasks for wastewater removal
  • Epoxy Coated Cast Iron Pump Housing w/ 2" Discharge
  • Minimizes rust & corrosion to extend overall pump life
  • 4/10 HP PSC Motor w/ Thermal Overload Protection
  • Energy saving design w/ low amp draw (8.5-Amps full load)
  • Cooler running motor which extends the life of the pump
  • Integral Snap-Action Vertical Float Switch
  • Double-seal design minimizes switch corrosion
  • Epoxy Coated Cast Iron Volute w/ Vortex Style Nylon Impeller
  • Non-clogging design passes up to 2" spherical solids
  • Nitrile Mechanical Shaft Seal w/ Carbon & Ceramic Faces
  • Assures maximum protection is harsh wastewater condtions
  • Upper Sintered Sleeve Bearings & Lower Ball Bearings
  • Minimizes friction while providing smooth & quiet operation
  • Stainless Steel Screws, Bolts & Handle
  • Never worry about sheet metal parts that rust or corrode
  • 20-Foot SJTW Power Cord
  • 20' Max Shutoff Head
  • 2-Year Limited Warranty
California residents see
Warning: This product can expose you to chemicals including Carbon black (airborne, unbound particles of respirable size) which is known to the State of California to cause Cancer.
For more information go to: www.p65Warnings.ca.gov

Specifications

509228
specs product image PID-10302
Base
Base Material
Cast Iron
Min Sump Basin Size
18 Inch
Motor
Voltage
120 Volt
Running Amps
8.5
Thermal Protection
Yes
Power Cord Length
20 Feet
Oil Free Motor
No
Pump
Housing Material
Cast Iron
Impeller Material
Nylon
Solids Handling Size
2 inch
Handles Solids
Yes
Float Type
Vertical Float
GPH @ 0 feet
6600
GPH @ 5 feet
6600
GPH @ 10 feet
4200
GPH @ 15 feet
1800
Discharge Port Size
2 Inch
Check Valve Included
No
Float On
9-12 Inches
Float Off
3-6 Inches
Manual Override
No
Max Head
20 Feet
Submersible
Yes
Engine
Horsepower
.4 hp
Overview
Weight
35.5 Pounds
Consumer Warranty
2 Years
Product Length
10.54 Inches
Product Width
6.8 Inches
Product Height
13.2 Inches
UPC
010121140233
