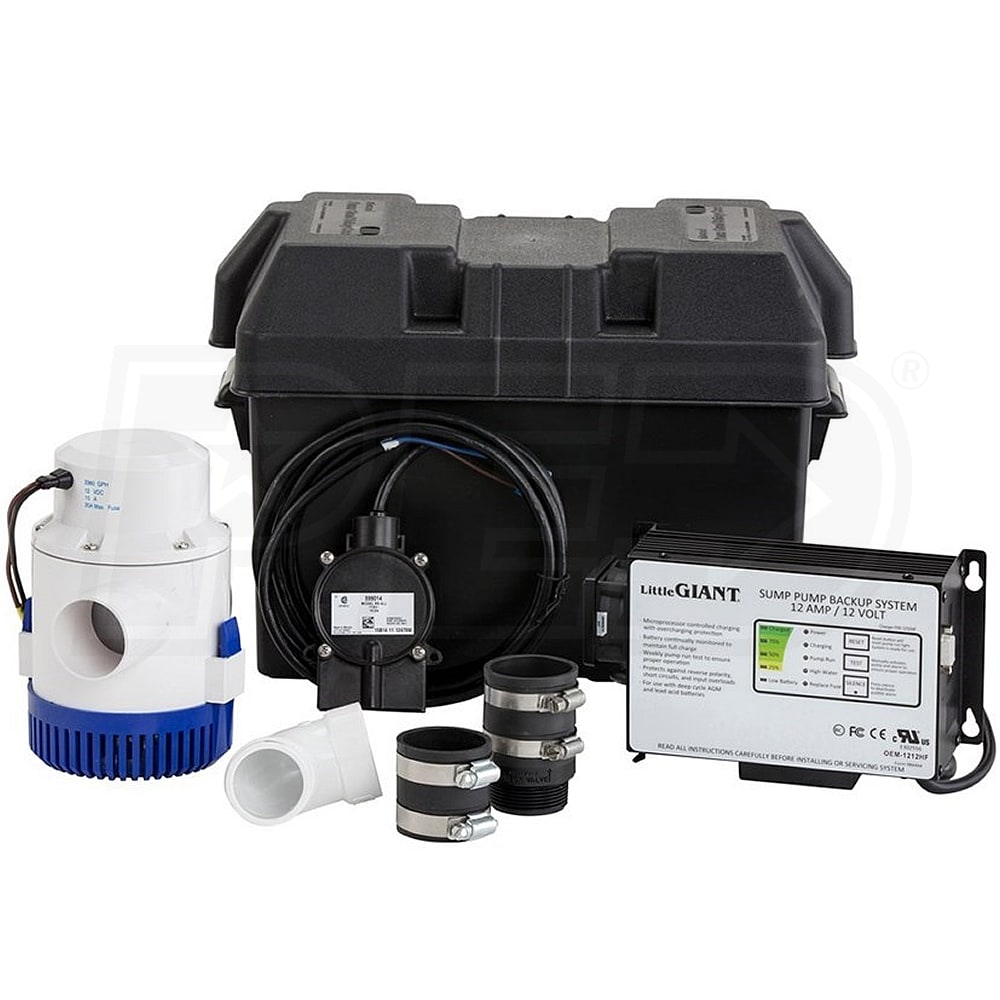

Little Giant SPBS-10HF - Battery Backup Sump Pump System (1200 GPH @ 10')
Model:
506406
+
Share This Product
Recommended Accessories
Expert Recommended Accessories
Selected by Jim, our Expert
Required Accessories
9
These accessories are required to properly setup/install this product.
Optional Accessories
10
Features
Style
Back-up
GPH
2520 Gallons
Switch Type
Diaphragm
- Protect Your Home + Added Peace Of Mind
- Secondary sump pump, flood protection, and emergency dewatering
- Automatically starts when your existing sump pump fails
- Senses power outages and begins using battery power
- Battery Backup Sump Pump
- Empties the sump pit after a malfunction, outage or excess water
- 2520 GPH at 0’ and 1200 GPH @ 10'
- 20’ shut off/maximum lift
- 12-Volt DC Backup Pump
- Durable non-corrosive pump housing with stainless steel fasteners
- Easily removed bottom suction screen for serviceability and maintenance
- Capable of handling 1/8 inch solids in sump applications
- 10-Amp Controller/Charger/Alarm Unit
- Test button to manually run backup pump to insure proper operation
- Battery continually monitored to maintain full charge
- 6' power cord on pump and charging unit
- BATTERY SOLD SEPARATELY
- Use only with 12 VDC deep cycle battery (Size 27)
- Rated 85-140Ah, lead-acid or AGM
- Diaphragm Switch, Check Valve, Elbow Connector, & Pump Coupling Included
- For Indoor Use Only
California residents see
Warning: This product can expose you to chemicals including Carbon black (airborne, unbound particles of respirable size) which is known to the State of California to cause Cancer.
For more information go to: www.p65Warnings.ca.gov
Specifications
506406
General Information
Product Category
Sump Pump
Motor
Voltage
12 Volt DC
Running Amps
14
Battery Included
No
Power Cord Length
6 Feet
Starting Amps
32
Pump
Quick Clean Out
Yes
Housing Material
Thermoplastic
Impeller Material
Plastic
Handles Solids
No
Maximum PSI
8.7
Float Type
Diaphragm
GPH @ 0 feet
2520
GPH @ 5 feet
1740
GPH @ 10 feet
1200
GPH @ 20 feet
0
Check Valve Included
Yes
Float On
13.5
Float Off
9
Battery Recharger
10 Amps
Max Head
20 Feet
Overview
Product Category
Sump Pump
Weight
11.5 Pounds
Consumer Warranty
2 Years
UPC
010121148024
Accessories
Alarm
Yes
Wi-Fi enabled
No
