Little Giant 4E-34NR - 13.5 GPM 1/12 HP Submersible Water Pump

Model:

504203

Write A Review
$359.00
Free Shipping
  Learn More About Free Freight
Free Shipping
*This product qualifies for Free Shipping anywhere in the contiguous US. Accessories may ship separately. Items over 100lbs shipped via semi-truck, be sure to select "Lift Gate" to lower the product to the ground curbside. Remote area surcharges may apply, see our full shipping policy for more details.
Factory-Direct
Ships in 4-7 Business Days

Little Giant 4E-34NR - 13.5 GPM 1/12 HP Submersible Water Pump
Little Giant 4E-34NR - 13.5 GPM 1/12 HP Submersible Water Pump
Model: 504203
$359.00
Features
Specifications
Reviews
Product Q&A
How-To Articles
Manuals
Share

Features

Inlet Size

3/4 Inch

Style

Utility

GPM

13.5 Gallons

  • 4E-34NR Oil-Filled, Direct Drive Submersible Water Pump
  • For water transfer/recirculation/displays & machine tool colants
  • 1/12 HP Oil-Filled Heavy Duty Motor
  • Epoxy Coated Cast Aluminum Housing & Cover
  • Nylon Volute
  • Aluminum Backplate
  • Viton Shaft Sweal
  • UL Listed
  • Additional Specs:

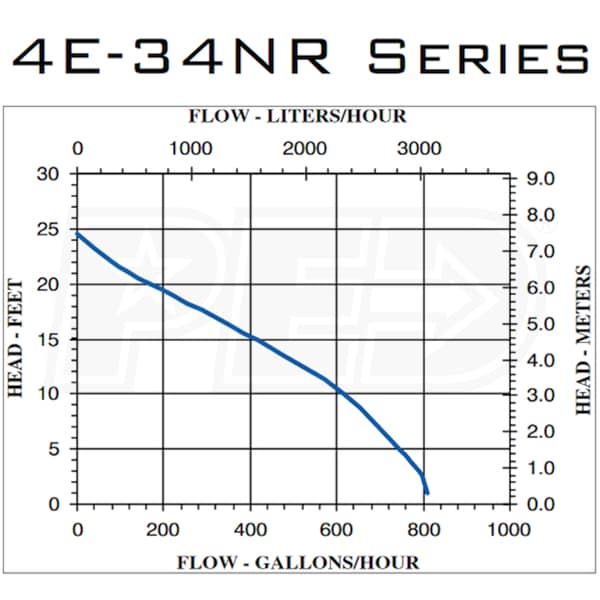

  • Capacity: 810 GPH @ 1'
  • Shut Off: 24.5'
  • Liquid Temprature: Up to 120°F
  • Discharge: 1/2" MNPT
  • Intake: 3/4" FNPT
  • Impeller: Nylon
  • Cord: 6'
California residents see
Warning: This product can expose you to chemicals including Carbon black (airborne, unbound particles of respirable size) which is known to the State of California to cause Cancer.
For more information go to: www.p65Warnings.ca.gov

Specifications

504203
specs product image PID-10803
General Information
Product Category
Water Pump
Motor
Voltage
120 Volt
Running Amps
3.5
Thermal Protection
Yes
Power Cord Length
10 Feet
Pump
Gallons Per Minute
13.5 Gallons
Inlet Diameter
3/4 Inch
Outlet Diameter
1/2 Inch
Housing Material
Aluminum
Impeller Material
Nylon
Handles Solids
No
Total Head Lift
24.5 Feet
Submersible
Yes
Engine
Oil-Cooled
Yes
Shaft Seal
Viton
Horsepower
0.08 hp
Overview
Product Category
Water Pump
Weight
8.5 Pounds
Consumer Warranty
1 Year
Product Length
7 Inches
Product Width
4.5 Inches
Product Height
5.5 Inches
UPC
010121042032
