Product Description
+−
Grade
Type
Power
Bar Length
20
Inches
Grade
Professional
Fuel
Gas
Bar Length
20 Inches
Features
Features
- Change The Way You Trim Trees

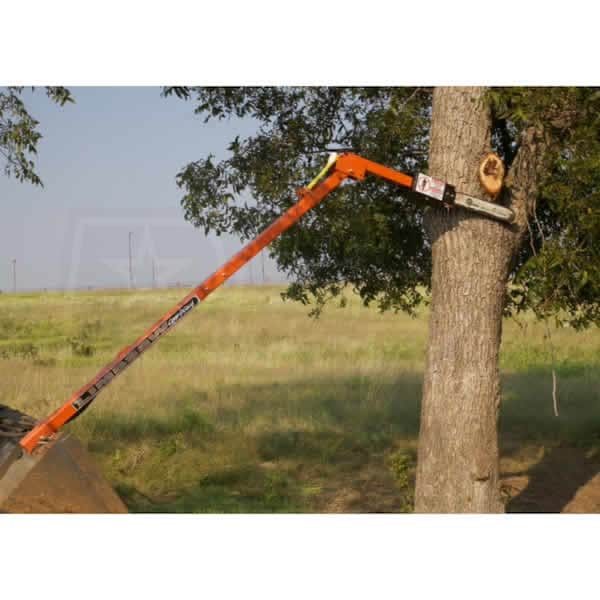

- Attachment mounts directly to a front end loader
- Can be used on tractors, skid steers and backhoes
- Easily attaches to receiver and uses tractor hydraulics
- Safety First
- No more ladders, standing in buckets or using hand saws
- Limbs fall in front of loader keeping driver out of harms way
- Chainsaw kickback is virtually eliminated
- Extra Long Reach
- Saw is 8' 6" unattached
- Can reach up to 20' when attached to front end loader
- Reversible Motor
- Helps back saw out in a pinch
- Self Oiling System
- Keeps bar and chain properly lubricated for better results
- Requires Hydraulic Flow Rate Of 7 GPM
- Uses 1-1/2" NPT fitting to attach to hydraulics
- Handles a max PSI of 3500 (Up to 5,000 with restrictors)
Specifications
Wedge
Wedge Material
Cast Steel
Hydraulics
Hydraulic Reservoir Size
20
Max Pump PSI
5000 PSI
Cylinder Length
20 Inches
Engine
Idle Control
Yes
Low Oil Shutdown
No
Power Head
Vibration Damping
Yes
Maximum RPM's
3500 RPM
Extended Length
102"
Chain & Bar
Chain & Bar Included
Yes
Chain Pitch
.325 "
Chain Gauge
.063 "
Bar Length
20 Inches
Chain Brake
No
Max Bar Length
20 Inches
Min Bar Length
20 Inches
Drive Links
81
Overview
Weight
86 Pounds
Consumer Warranty
6 Month
Product Length
103.2 Inches
Product Width
11 Inches
Product Height
9 Inches
UPC
726237069152
Grade
Type
Power
Bar Length
20
Inches
Grade
Professional
Fuel
Gas
Bar Length
20 Inches
Features
Features
- Change The Way You Trim Trees
- Attachment mounts directly to a front end loader
- Can be used on tractors, skid steers and backhoes
- Easily attaches to receiver and uses tractor hydraulics
- Safety First
- No more ladders, standing in buckets or using hand saws
- Limbs fall in front of loader keeping driver out of harms way
- Chainsaw kickback is virtually eliminated
- Extra Long Reach
- Saw is 8' 6" unattached
- Can reach up to 20' when attached to front end loader
- Reversible Motor
- Helps back saw out in a pinch
- Self Oiling System
- Keeps bar and chain properly lubricated for better results
- Requires Hydraulic Flow Rate Of 7 GPM
- Uses 1-1/2" NPT fitting to attach to hydraulics
- Handles a max PSI of 3500 (Up to 5,000 with restrictors)
Specifications
Wedge
Wedge Material
Cast Steel
Hydraulics
Hydraulic Reservoir Size
20
Max Pump PSI
5000 PSI
Cylinder Length
20 Inches
Engine
Idle Control
Yes
Low Oil Shutdown
No
Power Head
Vibration Damping
Yes
Maximum RPM's
3500 RPM
Extended Length
102"
Chain & Bar
Chain & Bar Included
Yes
Chain Pitch
.325 "
Chain Gauge
.063 "
Bar Length
20 Inches
Chain Brake
No
Max Bar Length
20 Inches
Min Bar Length
20 Inches
Drive Links
81
Overview
Weight
86 Pounds
Consumer Warranty
6 Month
Product Length
103.2 Inches
Product Width
11 Inches
Product Height
9 Inches
UPC
726237069152
Product Specs
+−
Specifications
Wedge
Wedge Material
Cast Steel
Hydraulics
Hydraulic Reservoir Size
20
Max Pump PSI
5000 PSI
Cylinder Length
20 Inches
Engine
Idle Control
Yes
Low Oil Shutdown
No
Power Head
Vibration Damping
Yes
Maximum RPM's
3500 RPM
Extended Length
102"
Chain & Bar
Chain & Bar Included
Yes
Chain Pitch
.325 "
Chain Gauge
.063 "
Bar Length
20 Inches
Chain Brake
No
Max Bar Length
20 Inches
Min Bar Length
20 Inches
Drive Links
81
Overview
Weight
86 Pounds
Consumer Warranty
6 Month
Product Length
103.2 Inches
Product Width
11 Inches
Product Height
9 Inches
UPC
726237069152
Product Q&A
(3)
+−
Search Product Q&A's
Answered by Dale, the Chain Saw Expert
+−
how small a tractor can be used
Harold Mille
from North Carolina
August 23, 2015
Answer
Harold,
This saw is designed to work with most all size tractors. The requirement is a minimum 7gpm flow rate for the hydraulic oil.
This saw is designed to work with most all size tractors. The requirement is a minimum 7gpm flow rate for the hydraulic oil.
Was this answer helpful?
Yes
0
No
0
+−
Are hydraulic quick couplers supplied with the saw? If so please identify the type, style and size. What is the average run time based on bar oil when running at 5000 RPM?
Mike Avey
from Texas
July 28, 2015
Answer
Mike,
The hoses have threaded ends but couplers are not included.
The oiler is automatic and only runs when the saw is on and the oil comes from the tractor's hydraulic system. They are preset and one should get about 400 cuts, running in 10 second intervals, to a quart of oil.
The hoses have threaded ends but couplers are not included.
The oiler is automatic and only runs when the saw is on and the oil comes from the tractor's hydraulic system. They are preset and one should get about 400 cuts, running in 10 second intervals, to a quart of oil.
Was this answer helpful?
Yes
0
No
0
+−
will this operate on a excavator
Jimmy
from Georgia
July 16, 2015
Answer
Jimmy,
Yes, Limbsaw controls the flow rate to 7 gpm's with valves. They are being used on excavators. Remember that we are using the boom of whatever piece of equipment as our extension of the saw. Therefore when placed on a limb we are not putting down pressure on the saw just letting the saw free float through the cut. Hope this is helpful and if you have any other questions just let me know.
Yes, Limbsaw controls the flow rate to 7 gpm's with valves. They are being used on excavators. Remember that we are using the boom of whatever piece of equipment as our extension of the saw. Therefore when placed on a limb we are not putting down pressure on the saw just letting the saw free float through the cut. Hope this is helpful and if you have any other questions just let me know.
Was this answer helpful?
Yes
0
No
0
Recommended Accessories
+−
Expert Recommended Accessories
Hand Picked By Our Expert Dale
Required Accessories
Add All Required
Optional Accessories
How-To Articles
+−
Manuals
+−
+
Ask Dale, Our Product Expert, A Question!
*Required Fields
+
Thank You For Submitting Your Question
Your submission has been sent successfully. Please give our experts up to two business days to respond.
Media Gallery

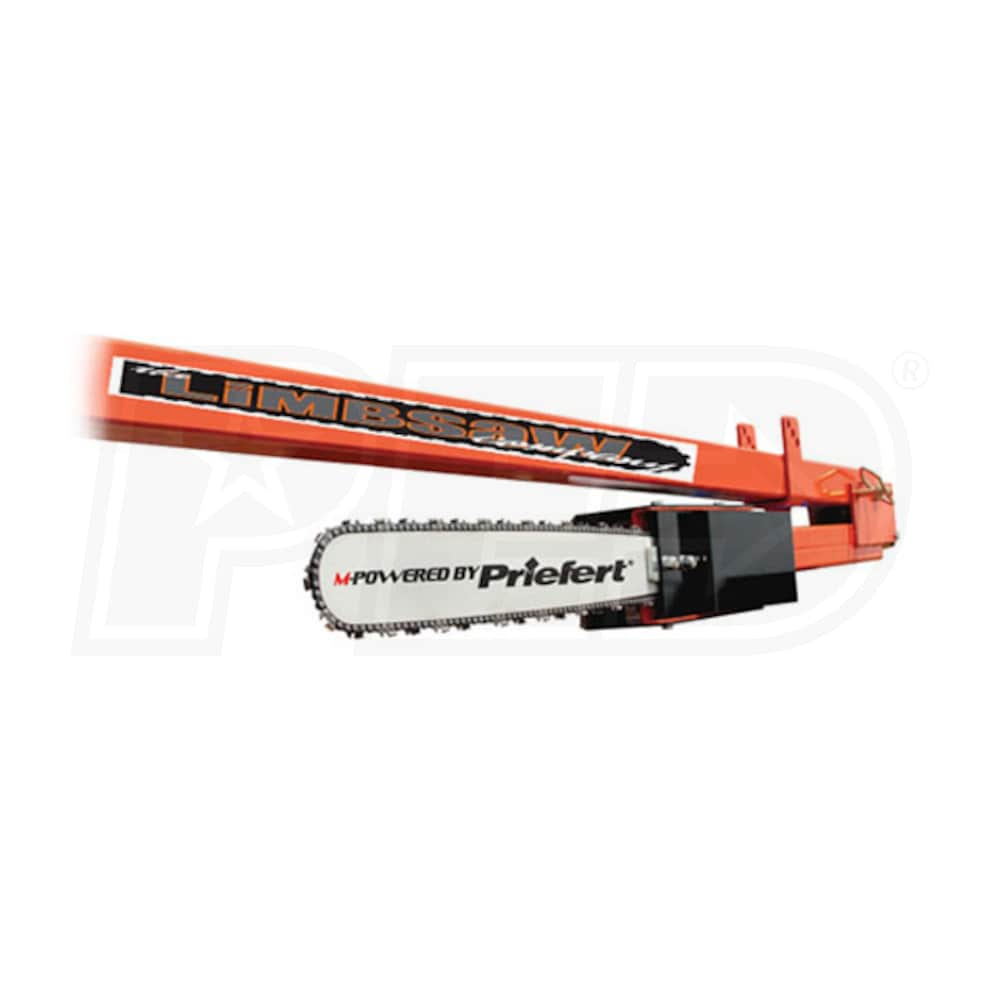

LimbSaw (20") Hydraulic 8' Chain Saw
×
