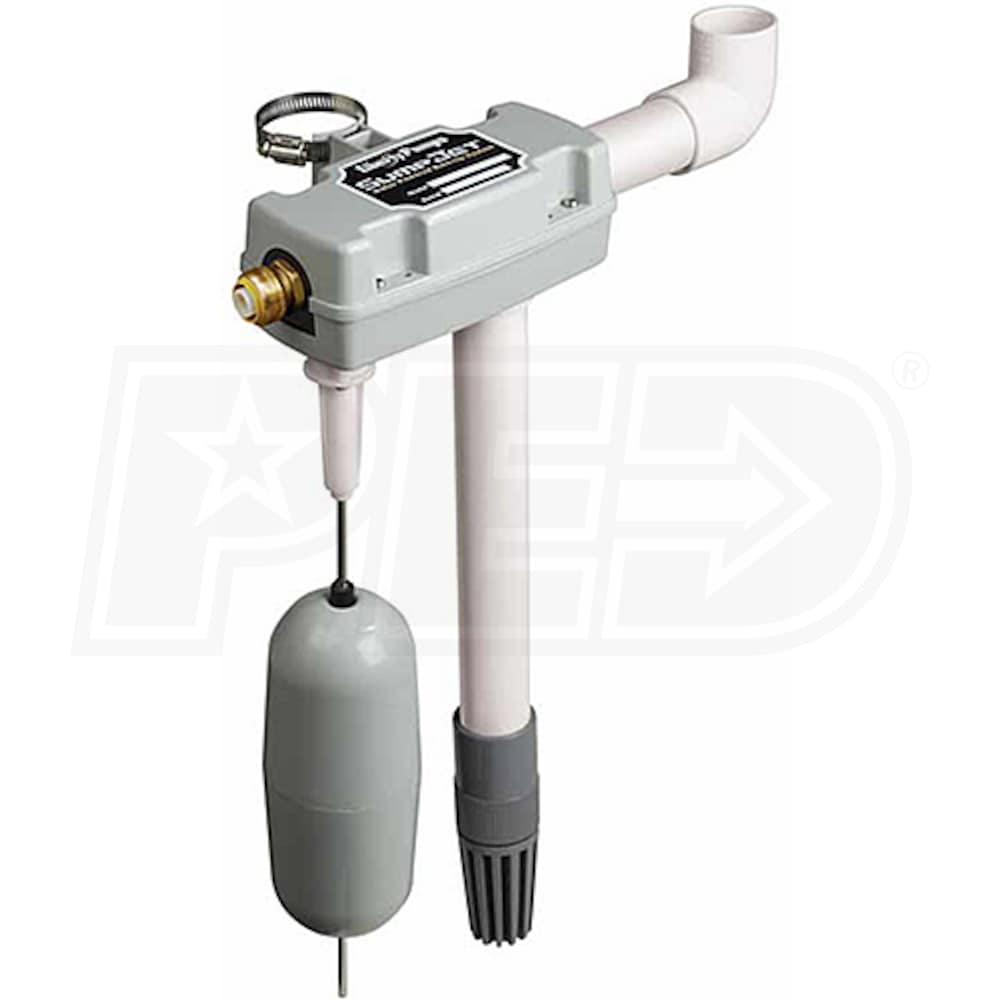

Liberty Pumps SJ10 - SumpJet® Water Powered Backup Sump Pump (990 GPH @ 10')
Model: SJ10
+
Share This Product
-
Product Description
-
79Reviews
-
6Product Q&A
-
Recommended Accessories
-
How-To Articles
-
Manuals
Product Description
+−
Style
GPH
1200
Gallons
Switch Type
Style
Back-up
GPH
1200 Gallons
Switch Type
Vertical
Product Video Disclaimer: "PED is not responsible for any variances from the product in this video and the item you purchase. Please review all product specs prior to purchase."
Features
Features
- SumpJet® Water Powered Backup Sump Pump
- Protect your basement in the case of a power outage
- Requires No Electricity To Operate
- Powered by your municipal water supply
- Requires an uninterrupted water source to operate
- Will NOT work with homes supplied by well pumps
- How It Works
- Water under pressure will flow through the SumpJet®
- Creates a vacuum and causes the water to be drawn out
- Fully Automatic Design
- Removes 2 gallons of sump water per 1 gallon used
- Accepts 20 PSI up to 100PSI Inlet Supply Pressure
- Performance varies w/ inlet water source/pressure & pumping head
- 3/4 " NPT Water Inlet Connection & 1-1/2" Discharge
- Compatible with most residential plumbing systems
- Please Note - All output specified is based on 60 PSI (Inlet)
- 3-Year Warranty
Specifications
Base
Min Sump Basin Size
18 Inch
Pump
Housing Material
Thermoplastic
Handles Solids
No
Float Type
Vertical Float
GPH @ 0 feet
1200
GPH @ 5 feet
1140
GPH @ 10 feet
990
GPH @ 15 feet
795
GPH @ 20 feet
615
Discharge Port Size
1-1/2 Inch
Built-in check Valve
Yes
Manual Override
Yes
Overview
Weight
6 Pounds
Consumer Warranty
3 Years
Product Width
5.1 Inches
Product Height
21.6 Inches
UPC
671812113655
Style
GPH
1200
Gallons
Switch Type
Style
Back-up
GPH
1200 Gallons
Switch Type
Vertical
Product Video Disclaimer: "PED is not responsible for any variances from the product in this video and the item you purchase. Please review all product specs prior to purchase."
Features
Features
- SumpJet® Water Powered Backup Sump Pump
- Protect your basement in the case of a power outage
- Requires No Electricity To Operate
- Powered by your municipal water supply
- Requires an uninterrupted water source to operate
- Will NOT work with homes supplied by well pumps
- How It Works
- Water under pressure will flow through the SumpJet®
- Creates a vacuum and causes the water to be drawn out
- Fully Automatic Design
- Removes 2 gallons of sump water per 1 gallon used
- Accepts 20 PSI up to 100PSI Inlet Supply Pressure
- Performance varies w/ inlet water source/pressure & pumping head
- 3/4 " NPT Water Inlet Connection & 1-1/2" Discharge
- Compatible with most residential plumbing systems
- Please Note - All output specified is based on 60 PSI (Inlet)
- 3-Year Warranty
Specifications
Base
Min Sump Basin Size
18 Inch
Pump
Housing Material
Thermoplastic
Handles Solids
No
Float Type
Vertical Float
GPH @ 0 feet
1200
GPH @ 5 feet
1140
GPH @ 10 feet
990
GPH @ 15 feet
795
GPH @ 20 feet
615
Discharge Port Size
1-1/2 Inch
Built-in check Valve
Yes
Manual Override
Yes
Overview
Weight
6 Pounds
Consumer Warranty
3 Years
Product Width
5.1 Inches
Product Height
21.6 Inches
UPC
671812113655
Product Specs
+−
Specifications
Base
Min Sump Basin Size
18 Inch
Pump
Housing Material
Thermoplastic
Handles Solids
No
Float Type
Vertical Float
GPH @ 0 feet
1200
GPH @ 5 feet
1140
GPH @ 10 feet
990
GPH @ 15 feet
795
GPH @ 20 feet
615
Discharge Port Size
1-1/2 Inch
Built-in check Valve
Yes
Manual Override
Yes
Overview
Weight
6 Pounds
Consumer Warranty
3 Years
Product Width
5.1 Inches
Product Height
21.6 Inches
UPC
671812113655
Product Q&A
(6)
+−
Search Product Q&A's
Answered by Jim, the Sump Pump Expert
+−
Our water pressure is about 30 to 32 psi. What is the minimum pressure needed to run the SJ-10?
Keith G.
from Illinois
April 03, 2017
Answer
Hi Keith. This system requires a minimal 20PSI but 30PSI for optimal performance. That said, the total vertical discharge head lift and discharge diameter also plays into your total GPM discharge capacity. You might also check the city code for this system as some municipalities around the country have outlawed these systems.
Was this answer helpful?
Yes
0
No
0
+−
Can you use shark bite connectors with this unit
Mike T
from Michigan
August 13, 2016
Answer
Per the SJ10 manual:
The inlet of the SumpJet® is factory equipped with a SharkBite® push-type fitting. This fitting can be used with various approved 3/4-inch potable water tubing and pipe, such as PEX tubing (ASTM F876, CSA B137.5), copper pipe (ASTM B 88), or Copper Tube Size (CTS) CPVC pipe (ASTM D 2846, CSA B137.6). Follow the instructions below for connecting the municipal water line to the SharkBite®. For more details on using the SharkBite® go to www.cashacme.com.
If you have any other questions, please let me know.
The inlet of the SumpJet® is factory equipped with a SharkBite® push-type fitting. This fitting can be used with various approved 3/4-inch potable water tubing and pipe, such as PEX tubing (ASTM F876, CSA B137.5), copper pipe (ASTM B 88), or Copper Tube Size (CTS) CPVC pipe (ASTM D 2846, CSA B137.6). Follow the instructions below for connecting the municipal water line to the SharkBite®. For more details on using the SharkBite® go to www.cashacme.com.
If you have any other questions, please let me know.
Was this answer helpful?
Yes
0
No
0
+−
I have 2 sump pumps in our basement and they are electric don't have any flooding problems just scared if a storm hit and knock out all power the pumps want work. So will a waterpowered or battery backup work which is better and will I have to replace my pumps with either one .
Ina Tillman
from Kansas
July 04, 2016
Answer
Ina,
First questions first,
How high vertically & how far horizontally are you pumping?
What size basin do you have?
The water powered backup pumps do work. However, they do use a decent amount of water to operate. You should also check with your local municipality to make sure water powered backups are approved.
The battery backup systems are a much more popular pump. They will run off the battery when the power goes out.
First questions first,
How high vertically & how far horizontally are you pumping?
What size basin do you have?
The water powered backup pumps do work. However, they do use a decent amount of water to operate. You should also check with your local municipality to make sure water powered backups are approved.
The battery backup systems are a much more popular pump. They will run off the battery when the power goes out.
Was this answer helpful?
Yes
2
No
1
+−
have liberty waterpowered sump model 5710 what is the capacity on this model
Fred R
from Kentucky
March 17, 2014
Answer
Thank you for your interest in Sump Pumps Direct. The pumping capacity on the Liberty SJ10 Water Powered Backup Sump Pump really depends on your water pressure(PSI). Minimum required water pressure for this pump is 30PSI. At 30PSI, you will get approximately 990GPH @ a 10' head. If you water pressure is greater, your pumping capacity will also increase.
If you have additional questions, please let me know.
If you have additional questions, please let me know.
Was this answer helpful?
Yes
0
No
0
+−
Which is better, a battery back-up system or a water back-up system?
Linda L
from Kentucky
February 06, 2014
Answer
Depending on the water table in your area and the potential for flooding you could go either way. If your water removal needs are below average, you could elect to go with a low GPH rated battery backup sump pump or water powered backup. Please note that water powered systems will only work with a minimum of 20-40 PSI. They will not work if you draw your water from a well. The typical water powered system would provide between 300-1000GPH of pumping capacity. If you're in a little higher water table that the flooding potential is a bit higher, you may want to consider a battery backup system rated at between 1000-2300GPH. If the flooding potential and water table are very high, you might look at the systems rated at 2400GPM and higher. You should also check with your local municipality to make sure that they are allowed as some municipalities have outlawed them as they do waste water in a sense.
Was this answer helpful?
Yes
1
No
1
+−
Hi Jim,
I'm looking at the Liberty built SJ10 pump to work as a backup as we have had issues with water in the basement in the past. After reading some of its literature, I noticed it needs a minimum of 20 PSI of municipal pressure to work. Is there a way to check for this before ordering this product? Also it's advertised as pumping 990 gph/10'. What does this mean? In your experience is this a well built pump or are there better out there as a back-up and for similar money? I have read a few negative reviews about the float switch being very cheap and flimsy and the spring loaded check valve not operating correctly. Also, there has been a review stating it doesn't remove enough water fast enough. I'd love to hear what you think!
Michael
from Michigan
August 09, 2012
Answer
You might try contacting a local licensed plumber or look at purchasing an inline pressure gauge to install at your spigot that would give you a good idea of your water pressure. The 990GPH/10' means that the Liberty model SJ10 will pump water up 10 feet at a rate of 990 gallons per hour or 16.5 gallons per minute (GPM). Liberty is one of the top manufacturers of pumps in the U.S. and their product is very well built and designed. While there may be better, more expensive systems out there, we currently offer only two water powered backup systems. This and the Bur-Cam model 300402.
Depending on the water table in your area and the potential for flooding, you could go with a water powered or battery backup sump pump system. If your water removal needs are below average, you could elect to go with a low GPH rated battery backup sump pump or water powered backup. Please note that water powered systems will only work if you have a municipal water supply with a minimum of 20-100 PSI. They will not work if you draw your water from a well. A low output system would provide between 300-1000GPH. If you're in a little higher water table that the flooding potential is a bit higher, you may want to consider a battery backup system rated at between 1000-2300GPH. If the flooding potential and water table are very high, you might look at the systems rated at 2400GPM and higher.
Depending on the water table in your area and the potential for flooding, you could go with a water powered or battery backup sump pump system. If your water removal needs are below average, you could elect to go with a low GPH rated battery backup sump pump or water powered backup. Please note that water powered systems will only work if you have a municipal water supply with a minimum of 20-100 PSI. They will not work if you draw your water from a well. A low output system would provide between 300-1000GPH. If you're in a little higher water table that the flooding potential is a bit higher, you may want to consider a battery backup system rated at between 1000-2300GPH. If the flooding potential and water table are very high, you might look at the systems rated at 2400GPM and higher.
Was this answer helpful?
Yes
0
No
0
