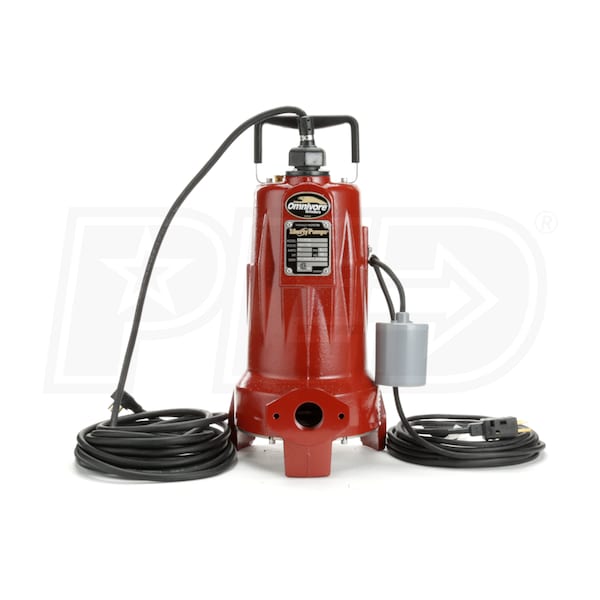

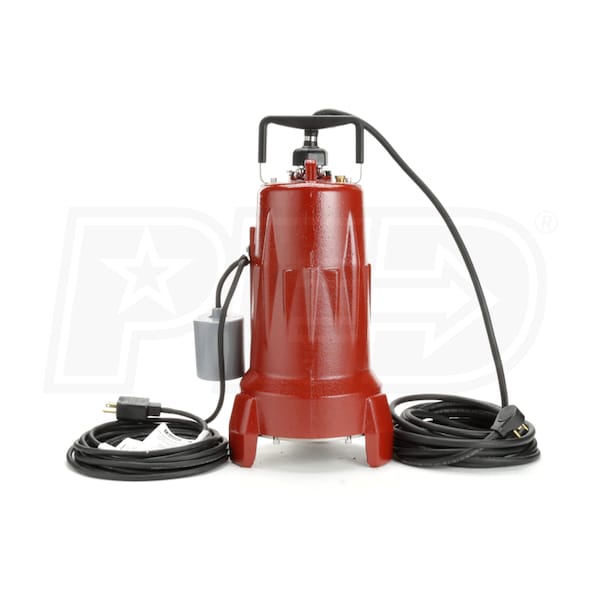

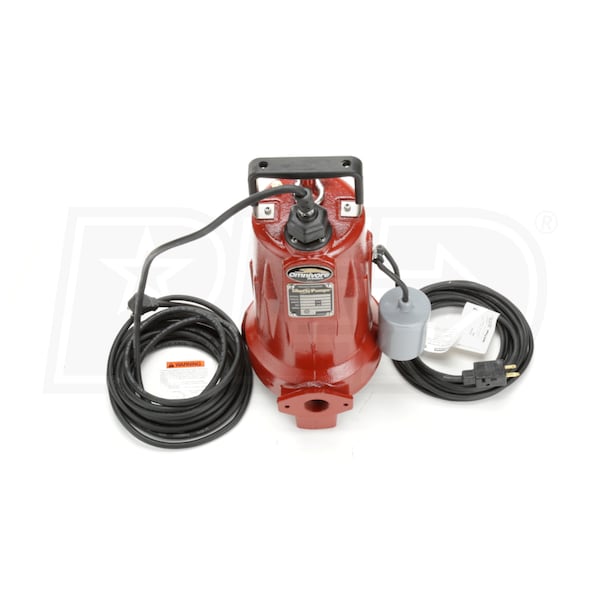

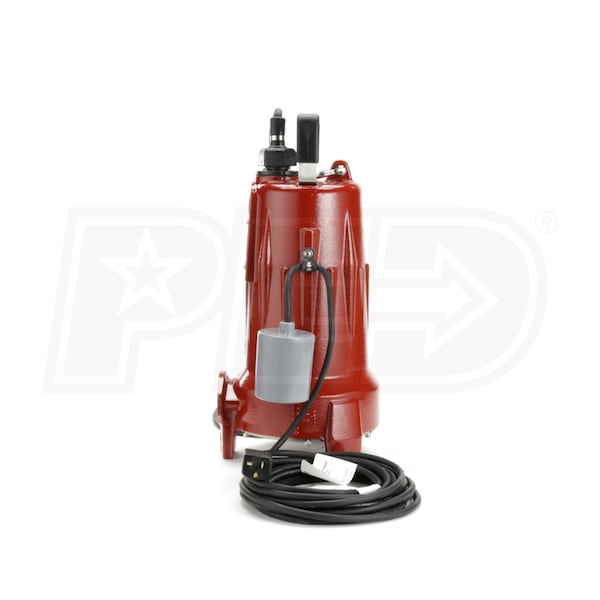

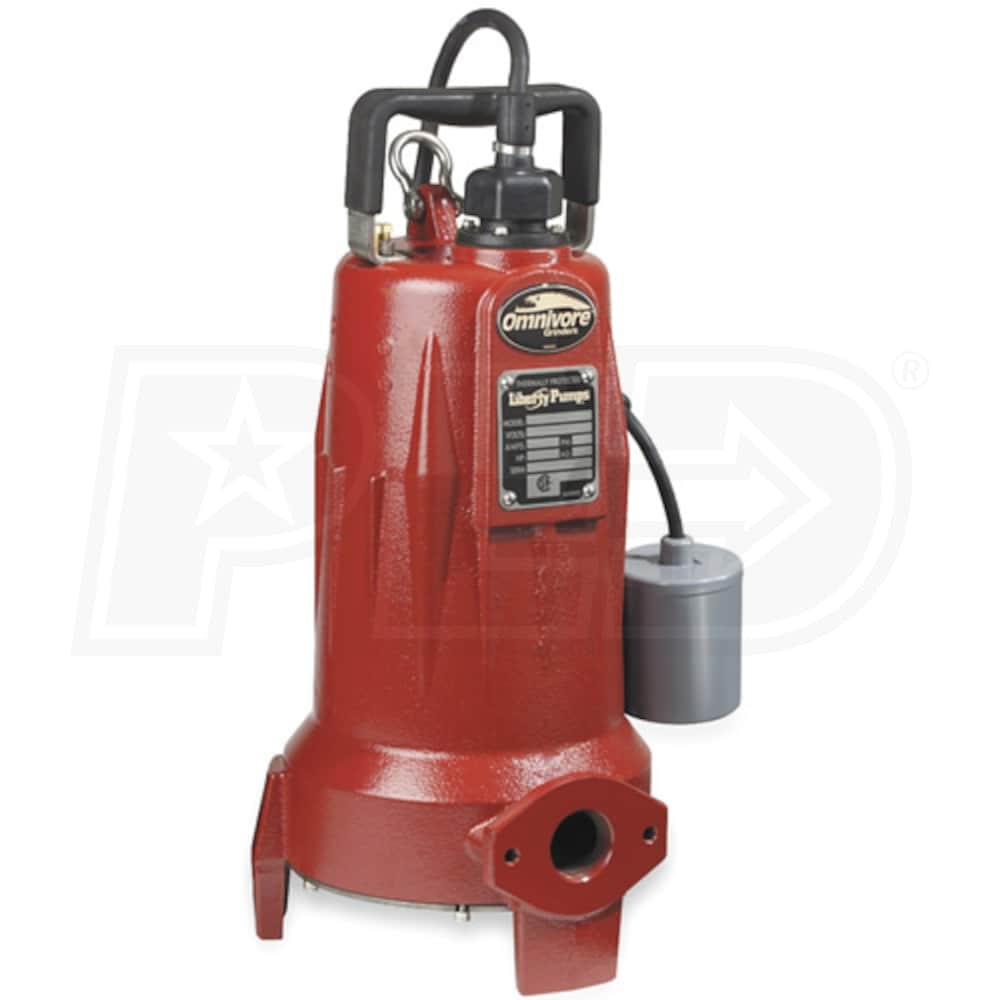

Liberty Pumps LSG202A - 2 HP Omnivore® Grinder Pump w/ Piggyback Tether Float (208/230V)
Model: LSG202A
+
Share This Product
-
Product Description
-
19Reviews
-
4Product Q&A
-
Recommended Accessories
-
How-To Articles
-
Manuals
Product Description
+−
Style
GPH
3000
Gallons
Switch Type
Style
Sewage Pump
GPH
3000 Gallons
Switch Type
Piggy-Back Tether
Product Video Disclaimer: "PED is not responsible for any variances from the product in this video and the item you purchase. Please review all product specs prior to purchase."
Features
Features
- Automatic Sub. Cast Iron Omnivore® Grinder Pump (Up to 100' Lift)
- For residential/commercial systems w/ high solid content
- Uni-Body Epoxy Powder Coated Cast Iron Construction
- Designed to provide years of reliable performance
- Adjustable, Mercury-Free, Wide Angle Tether Float Switch
- Provides automatic or manual operation via piggyback plug
- Rugged & Thermally Protected 2 HP Motor
- Hermetically sealed, permanently lubricated design

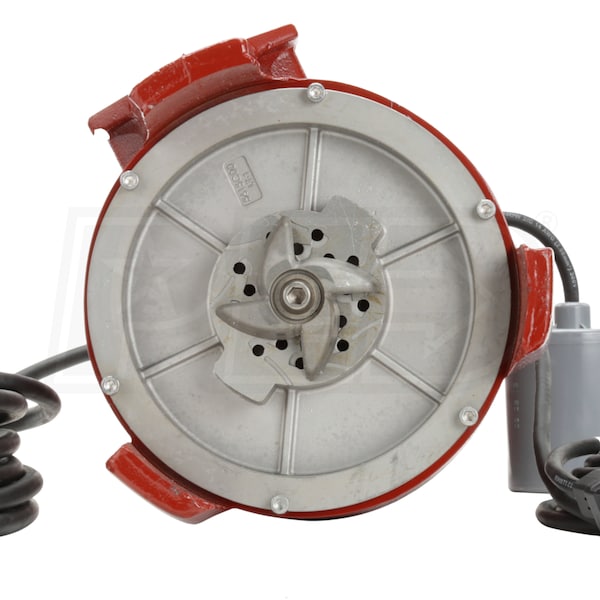

- V-Slice® Cutter Technology (440 Stainless Steel)
- Provides improved shredding performance over radial cutters
- Back Vanes On Impeller & Spiraled Bottom Plate
- Clog-free volute design provides superior solids clearing
- Stainless Steel Rotor Shaft w/ Dual Seals
- Carbon ceramic & Viton® double-lip lower seal for extended life
- Non-Corrosive Stainless Steel Impeller, Fasteners & Clasp
- Increases the lifespan of the pump even in the harshest systems
- Minimizes lifting chain problems over the lifespan of the pump
- Quick-Disconnect 25' Power Cord w/ 6-20P Plug (208/230V)
- Liberty suggest a minimum 30-amp breaker for pump circuit
- (G90) Flange May Be Requried For Installation (Not Included)
Specifications
Base
Min Sump Basin Size
18 Inch
Motor
Voltage
240 Volt
Running Amps
15
Thermal Protection
Yes
Power Cord Length
25 Feet
Oil Free Motor
No
Starting Amps
53
Pump
Housing Material
Cast Iron
Solids Handling Size
2 inch
Float Type
Piggy-Back Tether Switch
GPH @ 0 feet
3000
GPH @ 5 feet
3000
GPH @ 10 feet
3000
GPH @ 15 feet
3000
GPH @ 20 feet
3000
Discharge Port Size
1-1/4 Inch
Built-in check Valve
No
Float On
15 Inches
Float Off
8 Inches
Manual Override
Yes
Engine
Horsepower
2 hp
Overview
Weight
86 Pounds
Consumer Warranty
3 Years
Product Width
9.5 Inches
Product Height
19.5 Inches
UPC
671812110173
Style
GPH
3000
Gallons
Switch Type
Style
Sewage Pump
GPH
3000 Gallons
Switch Type
Piggy-Back Tether
Product Video Disclaimer: "PED is not responsible for any variances from the product in this video and the item you purchase. Please review all product specs prior to purchase."
Features
Features
- Automatic Sub. Cast Iron Omnivore® Grinder Pump (Up to 100' Lift)
- For residential/commercial systems w/ high solid content
- Uni-Body Epoxy Powder Coated Cast Iron Construction
- Designed to provide years of reliable performance
- Adjustable, Mercury-Free, Wide Angle Tether Float Switch
- Provides automatic or manual operation via piggyback plug
- Rugged & Thermally Protected 2 HP Motor
- Hermetically sealed, permanently lubricated design
- V-Slice® Cutter Technology (440 Stainless Steel)
- Provides improved shredding performance over radial cutters
- Back Vanes On Impeller & Spiraled Bottom Plate
- Clog-free volute design provides superior solids clearing
- Stainless Steel Rotor Shaft w/ Dual Seals
- Carbon ceramic & Viton® double-lip lower seal for extended life
- Non-Corrosive Stainless Steel Impeller, Fasteners & Clasp
- Increases the lifespan of the pump even in the harshest systems
- Minimizes lifting chain problems over the lifespan of the pump
- Quick-Disconnect 25' Power Cord w/ 6-20P Plug (208/230V)
- Liberty suggest a minimum 30-amp breaker for pump circuit
- (G90) Flange May Be Requried For Installation (Not Included)
Specifications
Base
Min Sump Basin Size
18 Inch
Motor
Voltage
240 Volt
Running Amps
15
Thermal Protection
Yes
Power Cord Length
25 Feet
Oil Free Motor
No
Starting Amps
53
Pump
Housing Material
Cast Iron
Solids Handling Size
2 inch
Float Type
Piggy-Back Tether Switch
GPH @ 0 feet
3000
GPH @ 5 feet
3000
GPH @ 10 feet
3000
GPH @ 15 feet
3000
GPH @ 20 feet
3000
Discharge Port Size
1-1/4 Inch
Built-in check Valve
No
Float On
15 Inches
Float Off
8 Inches
Manual Override
Yes
Engine
Horsepower
2 hp
Overview
Weight
86 Pounds
Consumer Warranty
3 Years
Product Width
9.5 Inches
Product Height
19.5 Inches
UPC
671812110173
Product Specs
+−
Specifications
Base
Min Sump Basin Size
18 Inch
Motor
Voltage
240 Volt
Running Amps
15
Thermal Protection
Yes
Power Cord Length
25 Feet
Oil Free Motor
No
Starting Amps
53
Pump
Housing Material
Cast Iron
Solids Handling Size
2 inch
Float Type
Piggy-Back Tether Switch
GPH @ 0 feet
3000
GPH @ 5 feet
3000
GPH @ 10 feet
3000
GPH @ 15 feet
3000
GPH @ 20 feet
3000
Discharge Port Size
1-1/4 Inch
Built-in check Valve
No
Float On
15 Inches
Float Off
8 Inches
Manual Override
Yes
Engine
Horsepower
2 hp
Overview
Weight
86 Pounds
Consumer Warranty
3 Years
Product Width
9.5 Inches
Product Height
19.5 Inches
UPC
671812110173
Product Q&A
(4)
+−
Search Product Q&A's
Answered by Jim, the Sump Pump Expert
+−
What requirements are needed to power this pump with a generator during a power outage?
Devin
from Missouri
March 22, 2017
Answer
Based on the running amp and LRA of this pump, and per Liberty tech support, we would not suggest using anything less than a 10,000 watt rated generator to handle that Liberty LSG202A pump. For best results, a Standby Generator powered by natural gas or liquid propane would activate automatically upon a power loss. A gas powered Portable Generator would need to be set up and "wired" in after a loss of power.
Was this answer helpful?
Yes
0
No
0
+−
IS THERE A LIST OF ITEMS NOT TO BE FLUSHED DOWN THE TOILET TO PREVENT PROBLEMS WITH THE GRINDER PUMP?
MJ
from Texas
September 25, 2014
Answer
That is a very good question, MJ! Not that I am aware of. That being said, I guess it would be more common sense when you think of what would actually fit down the toilet. Obviously anything with an extremely hard construction like steel or cast iron or even hard plastics could pose a problem if they get pulled into the grinding blades. Other than that, I can't think of anything else.
Was this answer helpful?
Yes
1
No
0
+−
HI Jim. Do I need to use a grinder pump for a basement restroom (Toilet sink only) with a lift from bottom of tank to sewer 6 feet
Eric
from Pennsylvania
January 08, 2014
Answer
In most cases, a typical sewage pump should handle a single basement bathroom. Our Wayne 1/2 HP Cast Iron Sewage Pump (2") w/ Piggyback Tether Float, model RPP50 is our most popular pump for that application. IF however, you have problems with items getting jammed in your pump like heavy toweling or latex or feminine products, the Liberty 1 HP ProVore® Residential Grinder Pump (2") w/ Piggyback Tether Float, model PRG101A would be a good option for you.
Was this answer helpful?
Yes
0
No
0
+−
I am trying to decide between the LSG202A and the LSG202M. It is for our home. We have a 3600 square foot house and 4 people live here. We are replacing the 110 pump that was put in when the house was built as the house is on grade that is lower than the city sewage line. We did not have an alarm or controller on the old system. I understand that the LS202A is automatic and the LS202M is manual and requires purchase of a separate controller. What would be the rationale for getting one versus the other?
Kathy P
from South Carolina
April 11, 2013
Answer
Thank you for visiting Water Pumps Direct. In all honesty, would be better off replacing your pump with one that matches the HP and GPH rating of of your current pump. The Liberty LSG Series Grinder Pump is designed strictly for high head (100+ feet) applications, which typically include commercial and/or industrial. 95% - 99% of residential applications will do just fine with a standard sewage pump. If you really believe that you do in deed require a grinder pump, you might look at the Liberty PRG SERIES pump.
Was this answer helpful?
Yes
0
No
0
