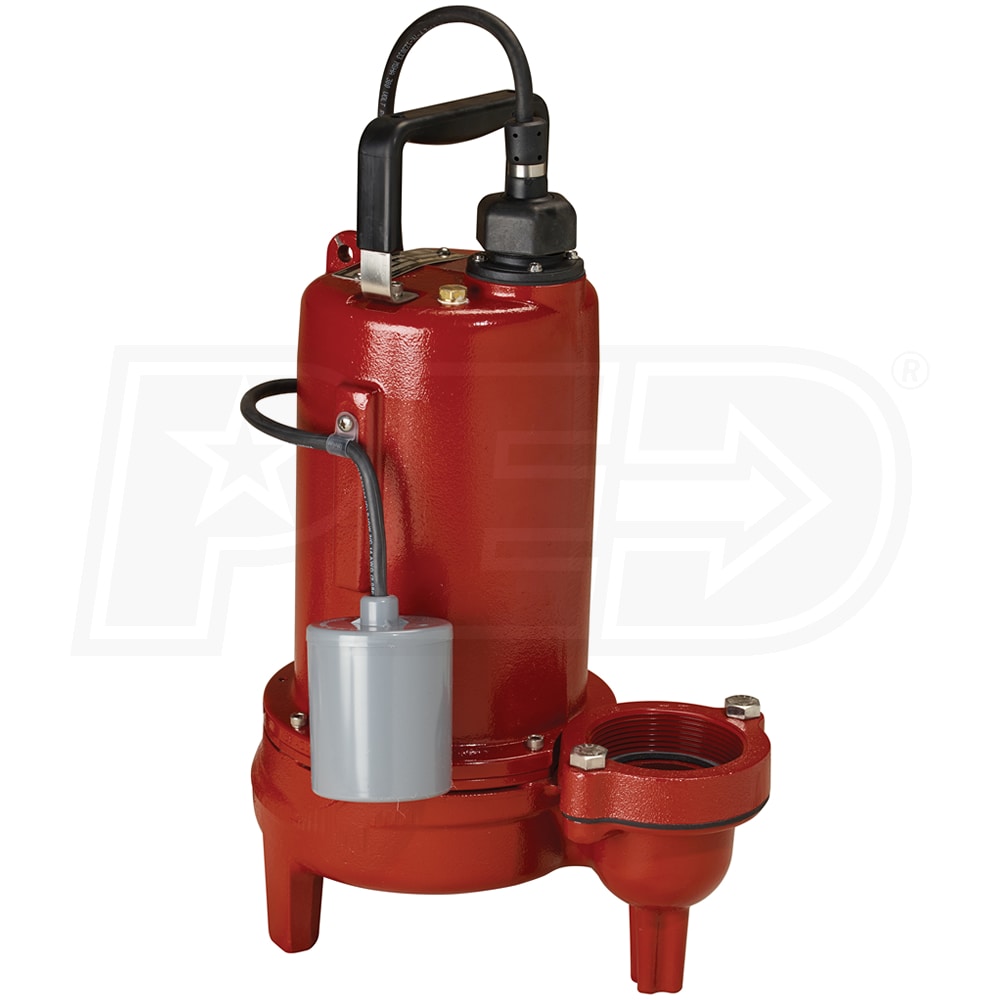

Liberty Pumps LE71A2 - 3/4 HP Cast Iron Sewage Pump (2") w/ Piggyback Tether Float

Liberty Pumps LE71A2 - 3/4 HP Cast Iron Sewage Pump (2") w/ Piggyback Tether Float
Model: LE71A2
$553.00
Only 3 In-Stock
Ships Tuesday, Aug 21st
Free Shipping
In-Stock Free ShippingNo Sales Tax* (Except IL)$553.00Buy Now
In-Stock Free ShippingNo Sales Tax* (Except IL)$553.00Visit Site
Only 3 In-Stock
Ships Tuesday, Aug 21st
Free Shipping
Free Shipping
Expedited Shipping
Expedited Shipping
*We currently CANNOT ship this product to Canada or any destination outside of the United States
Share
  • Product Description
  • 4
    Reviews
  • 5
    Product Q&A
  • Recommended Accessories
  • How-To Articles
  • Manuals
Product Description
+
Style
Sewage Pumps
GPH
9480
Gallons
Switch Type
Piggy-Back Tether Float Switch
Style
Sewage Pump
GPH
9480 Gallons
Switch Type
Piggy-Back Tether


Product Video Disclaimer: "PED is not responsible for any variances from the product in this video and the item you purchase. Please review all product specs prior to purchase."

Features
Features
  • Automatic Submersible Cast Iron Sewage Pump
  • A workhorse for residential & light commercial sewage apps.
  • Heavy-Duty Epoxy Powder Coated Cast Iron Construction
  • Designed to provide years of reliable performance
  • Adjustable, Mercury-Free, Wide Angle Tether Float Switch
  • Provides automatic or manual operation via piggyback plug
  • Rugged & Thermally Protected 3/4 HP Motor
  • Hermetically sealed, permanently lubricated design
  • 2-Vane Semi-Open Cast Iron Impeller
  • Heavy-duty design, passes spherical solids up to 2"
  • High Capacity 2" Discharge
  • Will replace most sewage pumps without any plumbing changes
  • Quick-Disconnect 10' Power Cord
  • Allows for easy replacement of cord without breaking motor seals
  • Stainless Steel Rotor Shaft w/ Unitized Ceramic Carbon Seal
  • With permanently lubricated bearings for extended pump life
  • Non-Corrosive Stainless Steel Fasteners
  • Increases the lifespan of the pump even in the harshest systems
  • 3-Year Limited Warranty
Specifications
Base
Min Sump Basin Size
14 Inch
Motor
Voltage
120 Volt
Running Amps
12
Thermal Protection
Yes
Power Cord Length
10 Feet
Oil Free Motor
No
Starting Amps
28
Pump
Housing Material
Cast Iron
Solids Handling Size
2 inch
Float Type
Piggy-Back Tether Switch
GPH @ 0 feet
9480
GPH @ 5 feet
8640
GPH @ 10 feet
7560
GPH @ 15 feet
6300
GPH @ 20 feet
4500
Discharge Port Size
2 Inch
Built-in check Valve
No
Float On
Adjustable
Float Off
Adjustable
Manual Override
Yes
Max Head
29 Feet
Engine
Horsepower
.75 hp
Overview
Weight
61 Pounds
Product Length
12.6 Inches
Product Width
9 Inches
Product Height
16.4 Inches
Consumer Warranty
3 Years
UPC
671812101737
Style
Sewage Pumps
GPH
9480
Gallons
Switch Type
Piggy-Back Tether Float Switch
Style
Sewage Pump
GPH
9480 Gallons
Switch Type
Piggy-Back Tether


Product Video Disclaimer: "PED is not responsible for any variances from the product in this video and the item you purchase. Please review all product specs prior to purchase."

Features
Features
  • Automatic Submersible Cast Iron Sewage Pump
  • A workhorse for residential & light commercial sewage apps.
  • Heavy-Duty Epoxy Powder Coated Cast Iron Construction
  • Designed to provide years of reliable performance
  • Adjustable, Mercury-Free, Wide Angle Tether Float Switch
  • Provides automatic or manual operation via piggyback plug
  • Rugged & Thermally Protected 3/4 HP Motor
  • Hermetically sealed, permanently lubricated design
  • 2-Vane Semi-Open Cast Iron Impeller
  • Heavy-duty design, passes spherical solids up to 2"
  • High Capacity 2" Discharge
  • Will replace most sewage pumps without any plumbing changes
  • Quick-Disconnect 10' Power Cord
  • Allows for easy replacement of cord without breaking motor seals
  • Stainless Steel Rotor Shaft w/ Unitized Ceramic Carbon Seal
  • With permanently lubricated bearings for extended pump life
  • Non-Corrosive Stainless Steel Fasteners
  • Increases the lifespan of the pump even in the harshest systems
  • 3-Year Limited Warranty
Specifications
Base
Min Sump Basin Size
14 Inch
Motor
Voltage
120 Volt
Running Amps
12
Thermal Protection
Yes
Power Cord Length
10 Feet
Oil Free Motor
No
Starting Amps
28
Pump
Housing Material
Cast Iron
Solids Handling Size
2 inch
Float Type
Piggy-Back Tether Switch
GPH @ 0 feet
9480
GPH @ 5 feet
8640
GPH @ 10 feet
7560
GPH @ 15 feet
6300
GPH @ 20 feet
4500
Discharge Port Size
2 Inch
Built-in check Valve
No
Float On
Adjustable
Float Off
Adjustable
Manual Override
Yes
Max Head
29 Feet
Engine
Horsepower
.75 hp
Overview
Weight
61 Pounds
Product Length
12.6 Inches
Product Width
9 Inches
Product Height
16.4 Inches
Consumer Warranty
3 Years
UPC
671812101737
Product Specs
+
Specifications
Base
Min Sump Basin Size
14 Inch
Motor
Voltage
120 Volt
Running Amps
12
Thermal Protection
Yes
Power Cord Length
10 Feet
Oil Free Motor
No
Starting Amps
28
Pump
Housing Material
Cast Iron
Solids Handling Size
2 inch
Float Type
Piggy-Back Tether Switch
GPH @ 0 feet
9480
GPH @ 5 feet
8640
GPH @ 10 feet
7560
GPH @ 15 feet
6300
GPH @ 20 feet
4500
Discharge Port Size
2 Inch
Built-in check Valve
No
Float On
Adjustable
Float Off
Adjustable
Manual Override
Yes
Max Head
29 Feet
Engine
Horsepower
.75 hp
Overview
Weight
61 Pounds
Product Length
12.6 Inches
Product Width
9 Inches
Product Height
16.4 Inches
Consumer Warranty
3 Years
UPC
671812101737
Reviews
(4)
+
Liberty Pumps LE71A2 Reviews & Ratings
Product Q&A
(5)
+
Search Product Q&A's Answered by Jim, the Sump Pump Expert
icon-social-fb1
+
Can the LE71A2 replace the grinder pump in my P382XPRG101 grinder system?
David M.
from Louisiana
May 28, 2017
Answer
As long as the flow provided by the LE71A2 will meet your needs, you should not have any problem, David.
+
Is it better to use a sewage pump or a grinder pump if I have a 150 gallon tank for waste/grey water, and I need to pump it to the street pipes?
Jason
from Texas
February 15, 2017
Answer
In most cases, SEWAGE PUMP will do the job for you. If however, you expect problems from people flushing something other than normal sewage, like baby wipes, towels, feminine products, etc., a GRINDER PUMP would be more effective.
+
Could this pump be used in a Pro 380 basin as replacement pump? It has a 1/2 HP now..
William C
from Kentucky
July 30, 2013
Answer
Thank you for your interest in Sump Pumps Direct. Yes, the LE71A2 can be used in the Pro 380 Basin. Just use the same pipe nipple and float on quicktree.
+
the liberty le71a2 is 110 volt single phase, yes?
Tom G
from Indiana
August 26, 2012
Answer
The Liberty sewage pump model LE71A-2 is indeed rated at 120 volts, single phase.
+
Is this pump a grinder pump
David Epp
from Minnesota
June 08, 2012
Answer
The Liberty model LE71A2 is a sewage pump and NOT a grinder pump. The only grinder pumps that we currently offer are the Liberty models LSG202A and LSG202-M and the Bur-Cam model 400416T.
